Cisco

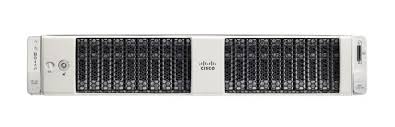

Cisco HX-C240-M6L | 2U dual-socket Xeon Scalable Gen3 chassis | 12x 3.5in LFF bays (SAS/SATA) | PCIe Gen4 expandability | modular VIC mLOM networking | hot-swap redundant PSUs | UCS Manager/Intersight ready | barebones (no CPU/RAM/drives)

SKU:HX-C240-M6L

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 2U rack server chassis designed for performance and capacity with support for up to two 3rd Gen Intel Xeon Scalable CPUs, DDR4 memory, and large 3.5-inch storage. This LFF configuration is ideal for capacity-focused workloads and software-defined storage.

Features

- 2U platform optimized for high-capacity 3.5in storage
- Dual-socket Intel Xeon Scalable Gen3 performance
- PCIe Gen4 expansion for high-speed I/O and accelerators
- Modular networking via VIC mLOM/PCIe for flexible bandwidth
- Enterprise manageability with UCS Manager and Intersight
- Redundant, hot-swappable power and cooling components

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What is included with this chassis?
A: Chassis with 3.5in LFF HDD backplane only; no CPU, memory, drives, RAID controller, or network adapters are included unless specified.

Q: Can I install NVMe drives in this LFF configuration?
A: This specific LFF HDD backplane is for SAS/SATA 3.5in drives. NVMe requires the appropriate SFF NVMe backplane and cabling.

Q: Which processors are supported?
A: Up to two 3rd Gen Intel Xeon Scalable processors (Ice Lake).

Q: What operating systems are supported?
A: Typical enterprise OSs such as VMware ESXi, Microsoft Windows Server, and major Linux distributions are supported; verify compatibility for your exact adapters and firmware.

Q: Is a management license required?
A: The platform integrates with UCS Manager and Cisco Intersight; licenses may be required for advanced features.

Technical Specifications

- Form factor: 2U rack-mount chassis
- CPU support: Up to 2x 3rd Gen Intel Xeon Scalable (LGA4189) – CPUs not included
- Memory: DDR4 RDIMM/LRDIMM support (up to 32 DIMM slots, model dependent) – memory not included
- Drive bays: Up to 12x 3.5in LFF front bays (SAS/SATA)
- Storage controllers: Modular SAS/SATA RAID/HBA options
- NVMe support: Via appropriate backplane/risers (not present in this LFF HDD backplane config)
- Expansion: PCIe Gen4 slots for adapters and accelerators
- Networking: Modular VIC mLOM/PCIe options (10/25/40/100GbE, as configured)
- Power: Redundant hot-swappable power supplies (ratings vary by configuration)
- Management: UCS Manager and Cisco Intersight capable
- Included items: Chassis with LFF HDD backplane (no CPU, no RAM, no drives)
