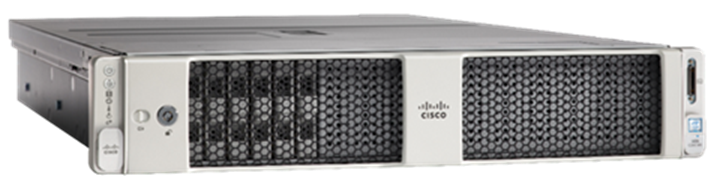

Cisco HX-C240-M5SX | 2U rack | 24 SFF + 2 rear bays | up to 2x Xeon Scalable | 24 DIMM (DDR4-2933) | up to 8x PCIe Gen3 | 12G SAS/SATA | dual hot-swap PSU supported | barebone chassis

SKU:HX-C240-M5SX

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

UCS C240 M5 is a high-density 2U rack server for performance and storage flexibility. This model provides 24 front 2.5-inch bays plus 2 rear bays for SAS/SATA media. It is supplied as a barebone chassis with no CPUs, memory, drives, PCIe cards, or power supplies. The platform supports up to two Intel Xeon Scalable (1st/2nd Gen) processors, 24 DDR4 DIMM slots up to 2933 MT/s, up to eight PCIe Gen3 expansion slots, 12G SAS RAID/HBA options, modular VIC networking, and redundant hot-swap PSUs (770W/1050W/1600W). Management is provided by Cisco IMC, with UCS Manager available in UCS domains.

Features

- High-density 2.5-inch bay configuration for flexible tiering
- Dual-socket Intel Xeon Scalable architecture
- 24-DIMM design for large memory footprints
- Comprehensive 12G SAS RAID and HBA choices
- Modular VIC networking up to 40Gb
- Redundant hot-swap PSU readiness for uptime
- Integrated out-of-band management with Cisco IMC
- Ideal for virtualization, VDI, and scale-out storage

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What is the drive bay layout for this configuration?
A: Twenty-four front-access SFF bays plus two rear bays, supporting SAS/SATA drives with 12G SAS controller options.

Q: Is this a complete server?
A: No. It is a barebone chassis without CPUs, memory, drives, PCIe cards, or power supplies.

Q: Which CPUs and memory are supported?
A: Up to 2x Intel Xeon Scalable (1st/2nd Gen) and 24 DIMM slots up to 2933 MT/s, to a maximum of 3.0 TB with 128 GB LRDIMMs.

Q: What networking options are available?
A: Add modular VIC adapters (mLOM/PCIe) for 10/25/40Gb connectivity; no fixed LOM included by default.

Q: What management features are provided?
A: Cisco IMC for out-of-band management, and UCS Manager when integrated into a UCS domain.

Technical Specifications

- Form factor: 2U rackmount
- Processor: Up to 2x Intel Xeon Scalable (1st/2nd Gen)
- Memory: 24x DDR4 DIMM slots, up to 3.0 TB with 128 GB LRDIMMs, up to 2933 MT/s
- Drive bays: 24x SFF front + 2x rear bays (SAS/SATA)
- Storage controllers: 12G SAS RAID/HBA and SW RAID options
- Expansion: Up to 8x PCIe Gen3 slots (riser-dependent)
- Networking: Modular VIC (mLOM/PCIe) for 10/25/40Gb options; no fixed LOM included by default
- Power: Supports up to 2x hot-swap PSUs (770W/1050W/1600W); PSUs not included
- Management: Cisco IMC (out-of-band), UCS Manager support with Fabric Interconnects
- Chassis state: Barebone (no CPU/memory/drives/PCIe/PSU)
