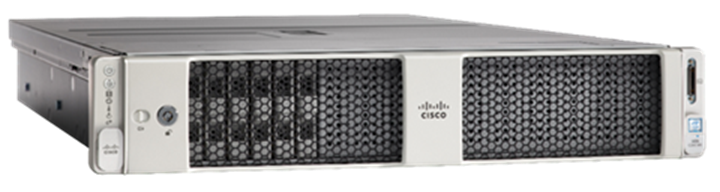

Cisco HX-C240-M5SN | 2U rack | 10 NVMe + 16 SAS/SATA SFF | up to 2x Xeon Scalable | 24 DIMM (DDR4-2933) | up to 8x PCIe Gen3 | NVMe U.2 + 12G SAS | dual hot-swap PSU supported | barebone chassis

SKU:HX-C240-M5SN

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

UCS C240 M5 is a performance 2U rack server with a hybrid NVMe/SAS backplane. This configuration provides 10 NVMe U.2 bays plus 16 SAS/SATA SFF bays, ideal for mixed low-latency and capacity tiers. It ships as a barebone platform with no CPUs, memory, drives, PCIe cards, or power supplies. The system supports up to two Intel Xeon Scalable (1st/2nd Gen) CPUs, 24 DDR4 DIMMs up to 2933 MT/s, up to eight PCIe Gen3 slots, 12G SAS RAID/HBA options, modular VIC networking, and redundant hot-swap PSU options (770W/1050W/1600W). Cisco IMC provides out-of-band management; UCS Manager is available when attached to Fabric Interconnects.

Features

- Hybrid storage design with NVMe for low-latency tiers and SAS/SATA for capacity
- Dual-socket Intel Xeon Scalable compute
- 24-DIMM memory architecture for large datasets and virtualization
- Flexible storage controller choices for SAS/SATA and native NVMe
- Modular high-speed networking with VIC options
- Redundant, hot-swappable PSU readiness
- Robust remote management via Cisco IMC
- Optimized for databases, analytics, and high-IOPS workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: How many NVMe bays are available in this configuration?
A: Ten front-accessible NVMe U.2 bays, plus sixteen SAS/SATA SFF bays for a hybrid layout.

Q: Are drives, CPUs, memory, and power supplies included?
A: No. This is a barebone chassis; storage devices, CPUs, memory, PCIe cards, and PSUs are required to complete the build.

Q: Which processors and memory are supported?
A: Up to two Intel Xeon Scalable (1st/2nd Gen) CPUs and 24 DDR4 DIMMs up to 2933 MT/s.

Q: What RAID options are supported for the SAS/SATA bays?
A: 12G SAS hardware RAID or HBA modes, as well as software RAID options depending on the controller chosen.

Q: Does it support high-speed networking?
A: Yes, via modular VIC adapters (mLOM/PCIe) with 10/25/40Gb options.

Q: What management is included?
A: Cisco IMC for OOB management and UCS Manager when integrated with Fabric Interconnects.

Technical Specifications

- Form factor: 2U rackmount
- Processor: Up to 2x Intel Xeon Scalable (1st/2nd Gen)
- Memory: 24x DDR4 DIMM slots, up to 3.0 TB with 128 GB LRDIMMs, up to 2933 MT/s
- Drive bays: 10x NVMe U.2 + 16x SAS/SATA SFF (hybrid)
- Storage controllers: 12G SAS RAID/HBA and SW RAID options; NVMe drives connect directly to PCIe
- Expansion: Up to 8x PCIe Gen3 slots (riser-dependent)
- Networking: Modular VIC (mLOM/PCIe) for 10/25/40Gb options; no fixed LOM included by default
- Power: Supports up to 2x hot-swap PSUs (770W/1050W/1600W); PSUs not included
- Management: Cisco IMC (out-of-band), UCS Manager support with Fabric Interconnects
- Chassis state: Barebone (no CPU/memory/drives/PCIe/PSU)
