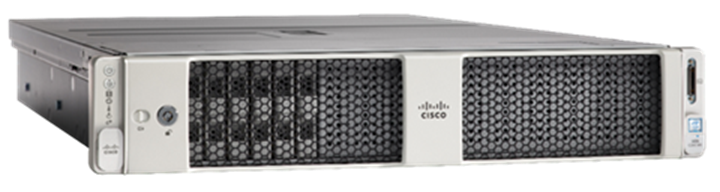

Cisco HX-C240-M5L | 2U rack | 12 LFF + 2 rear bays | up to 2x Xeon Scalable | 24 DIMM (DDR4-2933) | up to 8x PCIe Gen3 | 12G SAS/SATA | dual hot-swap PSU supported | barebone chassis

SKU:HX-C240-M5L

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

UCS C240 M5 is a 2U rack server chassis built for storage‑heavy workloads. This configuration provides 12 front-mounted 3.5-inch bays plus 2 rear bays for high-capacity SATA/SAS media. It ships as a barebone platform with no CPUs, memory, drives, PCIe cards, or power supplies, ready to be customized. Key capabilities include support for up to two Intel Xeon Scalable (1st/2nd Gen) CPUs, 24 DDR4 DIMM slots up to 2933 MT/s, up to eight PCIe Gen3 expansion slots, 12G SAS RAID/HBA options, modular VIC for high-speed Ethernet, and redundant hot-swap PSU options (770W/1050W/1600W). Integrated management is provided via Cisco IMC, with UCS Manager available when attached to Fabric Interconnects.

Features

- High-capacity 3.5-inch storage platform for data-heavy workloads
- Dual-socket compute with Intel Xeon Scalable processors
- 24-DIMM design for large DDR4 memory footprints
- Flexible 12G SAS RAID/HBA controller choices
- Modular VIC networking for 10/25/40Gb connectivity
- Redundant, hot-swappable PSU readiness
- Tool-less serviceability and robust remote management via IMC
- Seamless integration with UCS Manager and Fabric Interconnects

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this unit include CPUs, memory, drives, or power supplies?
A: No. It ships as a barebone chassis without CPUs, memory, drives, PCIe cards, or PSUs.

Q: Which processors are supported?
A: Up to two Intel Xeon Scalable processors (1st or 2nd Generation).

Q: What is the memory capacity and speed?
A: 24 DIMM slots supporting up to 3.0 TB using 128 GB LRDIMMs, with speeds up to 2933 MT/s (CPU-dependent).

Q: What storage configuration does this model support?
A: Twelve 3.5-inch front bays plus two rear bays for SAS/SATA drives with 12G SAS RAID/HBA options.

Q: Are network ports included?
A: Networking is provided via modular VIC (mLOM/PCIe). Select the desired 10/25/40Gb adapter; no fixed ports are included by default.

Q: What management features are available?
A: Cisco Integrated Management Controller (IMC) for OOB management and optional UCS Manager when connected to Fabric Interconnects.

Technical Specifications

- Form factor: 2U rackmount
- Processor: Up to 2x Intel Xeon Scalable (1st/2nd Gen)
- Memory: 24x DDR4 DIMM slots, up to 3.0 TB with 128 GB LRDIMMs, up to 2933 MT/s
- Drive bays: 12x LFF front + 2x rear bays (SATA/SAS)
- Storage controllers: 12G SAS RAID/HBA and SW RAID options
- Expansion: Up to 8x PCIe Gen3 slots (riser-dependent)
- Networking: Modular VIC (mLOM/PCIe) for 10/25/40Gb options; no fixed LOM included by default
- Power: Supports up to 2x hot-swap PSUs (770W/1050W/1600W); PSUs not included
- Management: Cisco IMC (out-of-band), UCS Manager support with Fabric Interconnects
- Chassis state: Barebone (no CPU/memory/drives/PCIe/PSU)
