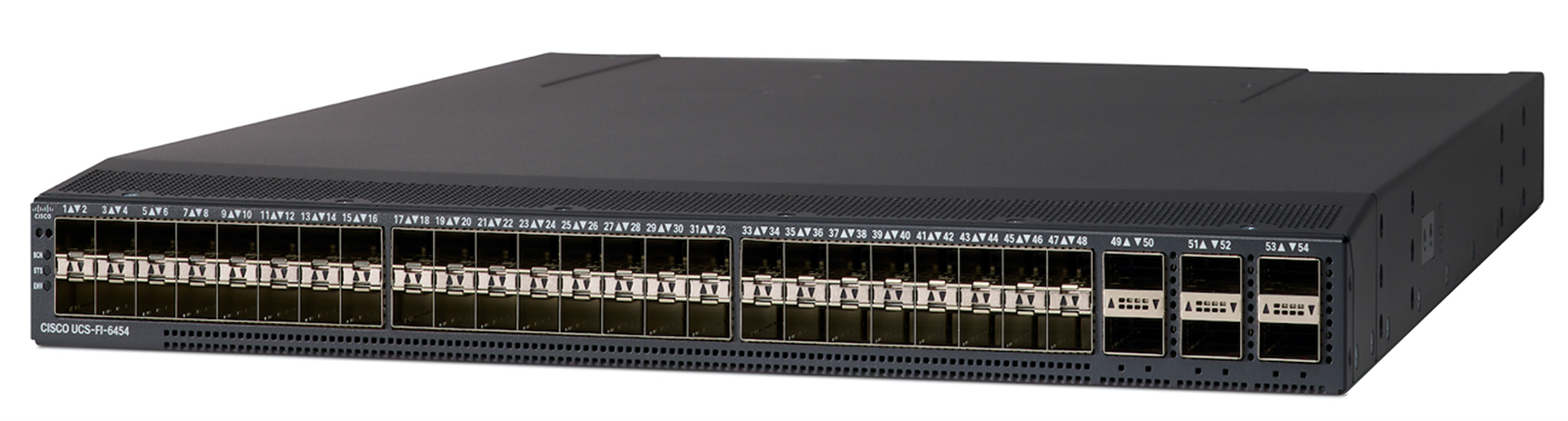

• Cisco HCI-FI-6454-M6 black switch with 54x 10/25G SFP28 ports
1 1

Cisco

Cisco HCI-FI-6454-M6 | UCS 6454 54-Port 10/25G Fabric Interconnect, M6

HCI-FI-6454-M6

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HCI-FI-6454-M6 is a 1RU top-of-rack fabric interconnect from the Cisco UCS 6400 Series, offering 48 x 10/25G SFP28 ports and 6 x 40/100G QSFP28 uplinks. It delivers line-rate, low-latency 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel connectivity and unified management for UCS and Cisco Compute Hyperconverged domains. This M6 bundle-aligned ordering PID suits data centre deployments that need high-density server connectivity with lossless Ethernet and Fibre Channel support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel
- Cut-through switching architecture
- Ethernet switch mode and Fibre Channel switch mode
- Rapid PVST+, IGMP v1/v2/v3 snooping, LACP and VSANs
- Priority Flow Control and Enhanced Transmission Selection for lossless Ethernet
- Out-of-band and in-band management, with Cisco UCS Manager typically deployed in clustered active/passive mode
- Supports UCS B-Series, UCS Managed C-Series and S-Series
- Server ports supported on 40/100G ports after breakout from release 4.1(3), maximum 64 server ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1RU form factor with 54 fixed ports
- 48 x 10/25-Gbps SFP28 ports and 6 x 40/100-Gbps QSFP28 uplink ports
- 16 unified ports (10/25 Gbps Ethernet/FCoE or 8/16/32 Gbps Fibre Channel)
- 3.82 Tbps Layer 2 hardware forwarding throughput and 1.2 bpps
- 32,000 MAC address table entries
- 6-core CPU and 64 GB system memory
- Management: L1/L2 HA ports, RJ-45 10/100/1000 management port, console and 1 USB port
- Up to 2 power supplies: 650W AC or 930W DC, 100-240 VAC, 50-60 Hz
- Typical operating power 260W
- Four variable-speed hot-swappable fans (3+1 redundant)
- Dimensions 1.72 in x 17.3 in x 22.5 in (4.4 x 43.9 x 57.1 cm)
- Operating temperature 0 to 40°C, humidity 5 to 95% non-condensing
- 16 hardware queues per port, 802.1Qbb PFC and 802.1Qaz ETS
- Each 40/100G port can break out into 4 x 10/25G

FAQs

Q: What port types does the HCI-FI-6454-M6 provide?
A: It provides 48 x 10/25G SFP28 ports and 6 x 40/100G QSFP28 uplink ports, 54 fixed ports in total. Sixteen of the SFP28 ports are unified ports that can run 10/25G Ethernet/FCoE or 8/16/32G Fibre Channel.

Q: Can the 40/100G ports be broken out into lower speeds?
A: Yes. Each 40/100G QSFP28 port can break out into 4 x 10/25G. Server ports are supported on broken-out 40/100G ports from release 4.1(3), up to a maximum of 64 server ports.

Q: Which server platforms does this fabric interconnect support?
A: It supports UCS B-Series, UCS Managed C-Series and S-Series servers, and is used with UCS and Cisco Compute Hyperconverged (HCI) domains.

Q: What power options are available?
A: The chassis accepts up to two power supplies, either 650W AC or 930W DC, with 100-240 VAC input at 50-60 Hz. Typical operating power is 260W.

Q: Does it support Fibre Channel as well as Ethernet?
A: Yes. It supports both Ethernet switch mode and Fibre Channel switch mode, with 16 unified ports that can operate as 8/16/32G Fibre Channel or 10/25G Ethernet/FCoE.
