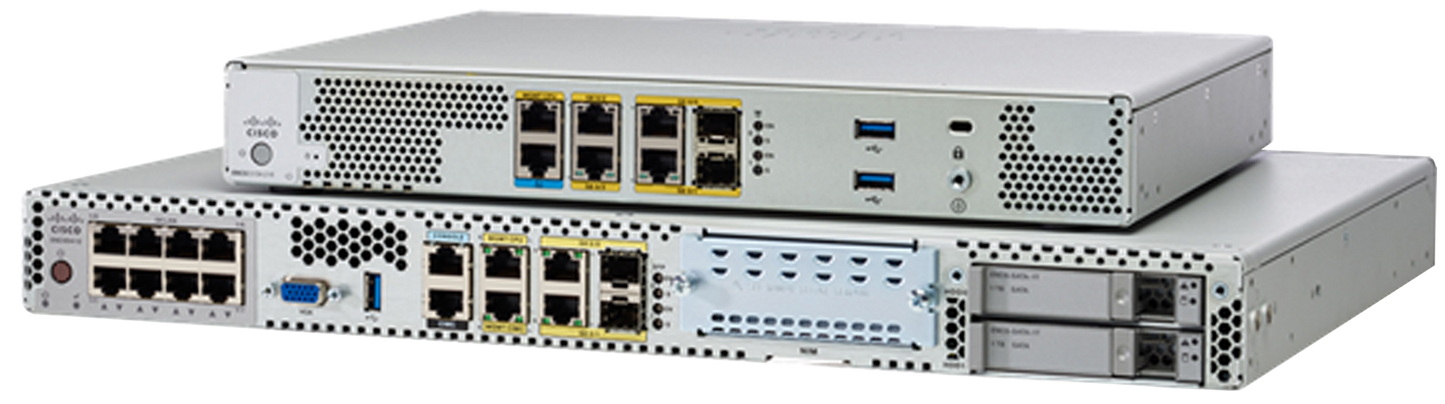

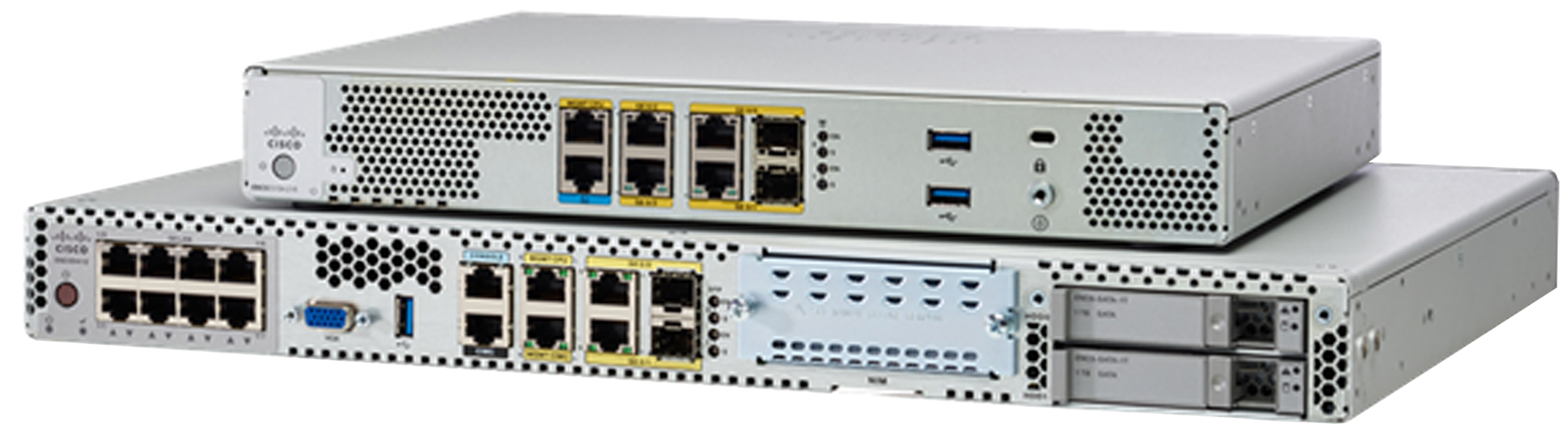

• Cisco ENCS5412P/K9 NFV edge router with multiple Ethernet ports
1 1

Cisco

Cisco ENCS5412P/K9 | ENCS 5400 NFV Platform, 12-Core, No RAM, No Disk

ENCS5412P/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ENCS5412P/K9 is a 12-core Service Spare chassis from the Cisco 5000 Series Enterprise Network Compute System (ENCS 5400), a 1RU NFV edge platform for Cisco SD-Branch and Enterprise NFV deployments. It is built around an Intel Xeon D-1557 processor and supplied with no RAM and no disk, so memory and storage are fitted to suit the intended virtualised network functions. An integrated 8-port LAN switch with optional PoE, dual-mode WAN ports and a NIM slot make it suitable for consolidating routing, security and WAN services at the branch.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for the Cisco SD-Branch and Enterprise NFV (ENFV) solution
- Runs Cisco NFVIS as the hosting layer
- Hardware acceleration for inter-VM traffic, IPsec crypto and RAID
- Built-in 8-port GE LAN switch with optional PoE
- NIM slot for LTE and legacy WAN connectivity
- Cisco Integrated Management Controller (CIMC) for lights-out management
- 6- to 8-year lifecycle, similar to a traditional ISR

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- CPU: Intel Xeon D-1557 (Broadwell-DE D-1500 family), 12-core, 1.5 GHz, 18 MB cache
- Service Spare chassis: no RAM and no disk included
- Memory when populated: 16 GB default single DIMM, 64 GB maximum system capacity
- Motherboard storage options: M.2 SATA 64 GB (default), 200 GB, 400 GB
- Drive bays: up to 2 x SFF drives (SATA HDD, SAS, SATA SSD up to 960 GB)
- 8 integrated LAN ports (optional PoE with PoE power supply)
- 2 to 4 Gigabit Ethernet WAN ports (dual-mode RJ-45/SFP)
- Form factor: 1RU, 12-inch-deep appliance (1.73 x 17.25 x 13.3 in)
- Power: single internal supply, 100-240 VAC auto-ranging, 47-63 Hz
- PoE supply: 380W maximum platform power, 200W total PoE budget (60W max per LAN port)
- Typical power (no modules): 125W; max with non-PoE AC supply: 180W

FAQs

Q: Does the ENCS5412P/K9 include memory and storage?
A: No. This Service Spare chassis ships with no RAM and no disk. The platform supports up to 64 GB of memory, M.2 SATA storage options of 64 GB, 200 GB or 400 GB, and up to two SFF drives.

Q: What CPU does the ENCS5412P/K9 use?
A: It uses a 12-core Intel Xeon D-1557 processor running at 1.5 GHz with 18 MB of cache.

Q: What software platform does it run?
A: It is designed to run Cisco NFVIS as the hosting layer for virtualised network functions as part of the Cisco SD-Branch and Enterprise NFV solution.

Q: Does this platform support PoE?
A: Yes, when fitted with the PoE power supply. The platform provides 380W maximum power with a 200W total PoE budget and up to 60W per LAN port across its 8 integrated LAN ports.

Q: What WAN connectivity options are available?
A: The platform provides 2 to 4 Gigabit Ethernet WAN ports with dual-mode RJ-45/SFP, plus a NIM slot for LTE and legacy WAN connectivity.
