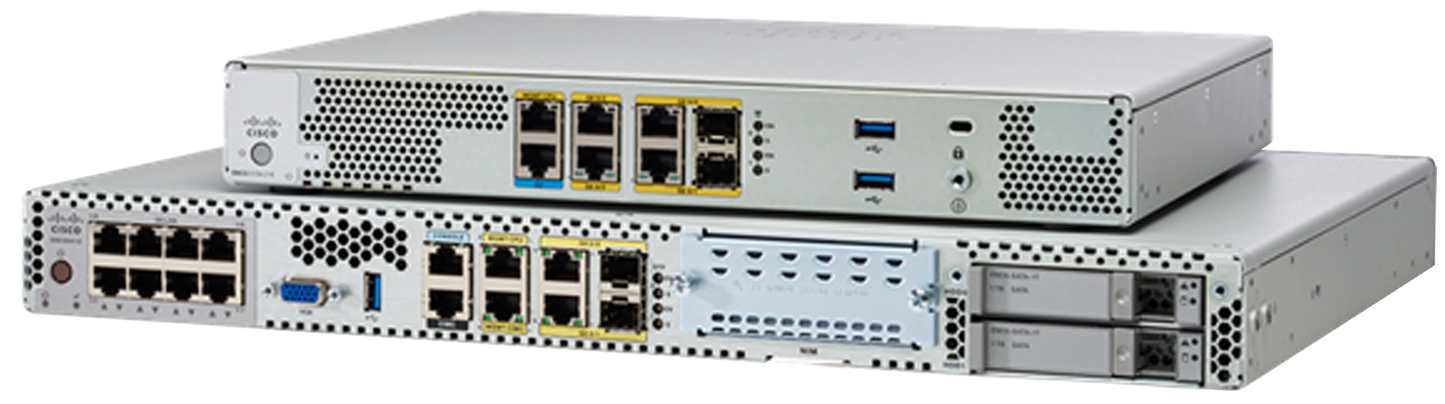

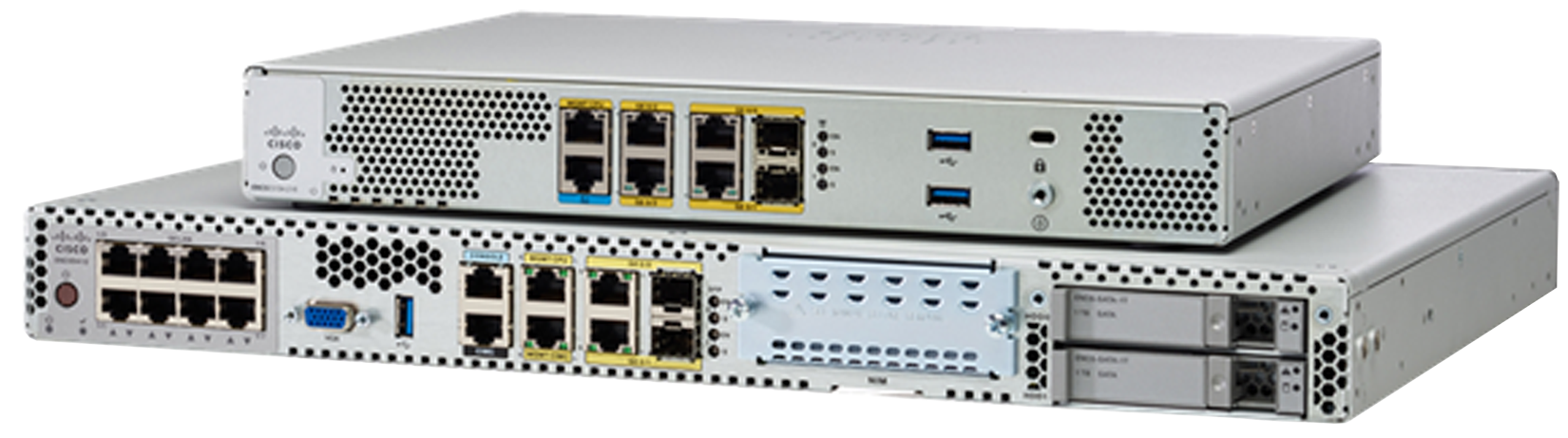

• Cisco ENCS5408P/K9 router with Ethernet ports and front panel
1 1

Cisco

Cisco ENCS5408P/K9 | ENCS 5400 8-Core NFV Appliance, No RAM, No Disk

ENCS5408P/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ENCS5408P/K9 is an 8-core Intel Xeon D NFV appliance from the Cisco 5400 Enterprise Network Compute System range, built for SD-Branch and Enterprise NFV deployments in a compact 1RU chassis. It combines routing, switching, storage and compute, with an integrated 8-port GE LAN switch and a NIM slot for WAN expansion. This service spare variant ships with no RAM and no disk, so memory and storage must be fitted separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for Cisco SD-Branch and Enterprise NFV (ENFV) solutions
- Runs Cisco NFVIS to host virtual network functions
- Integrated routing, switching, storage and compute in a compact 1RU chassis
- Optional internal power supply provides 802.3af PoE or 802.3at PoE+ to the integrated switch
- Integrated Emulex Pilot-3 BMC with IPMI 2.0 for lights-out management
- NIMs support Online Insertion and Removal (OIR)
- 6- to 8-year lifecycle, in line with a traditional ISR

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- CPU: Intel Xeon D-1548, 8-core, 2.0 GHz, 12 MB cache
- Service spare chassis: no RAM and no disk included
- DRAM: 2 DIMM slots, 8/16/32 GB ECC DDR4 per slot, 64 GB maximum
- Motherboard storage: M.2 SATA options of 64/200/400 GB (not included)
- Drive bays: up to 2 SFF drives (SATA, SAS, SAS SED or SATA SSD options)
- Optional LSI MegaRAID SAS 3108 hardware RAID
- 2 x GE WAN/LAN ports (dual-mode RJ-45 and SFP)
- Integrated 8-port GE LAN switch with PoE capability
- 1 x GE management port for the x86 host
- 1 x NIM slot supporting WAN, 4G LTE and GE LAN/WAN modules, with OIR
- 1 x USB 2.0 Type-A and RJ-45 serial console
- Form factor: 1RU, 12 inches deep
- Power: single internal AC supply, 100-240 VAC auto-ranging

FAQs

Q: Does the ENCS5408P/K9 include memory and storage?
A: No. This is a service spare chassis supplied with no RAM and no disk. You will need to fit compatible ECC DDR4 DIMMs and storage separately.

Q: How much memory can the ENCS5408P/K9 support?
A: It has 2 DIMM slots, each accepting 8, 16 or 32 GB ECC DDR4, for a maximum of 64 GB.

Q: What storage options does this appliance support?
A: It supports M.2 SATA motherboard storage in 64, 200 or 400 GB options, plus up to 2 SFF drives (SATA, SAS, SAS SED or SATA SSD), with optional LSI MegaRAID SAS 3108 hardware RAID.

Q: Does the ENCS5408P/K9 include an LTE module?
A: No. The NIM slot supports WAN, 4G LTE and GE LAN/WAN modules, but no LTE module is included with this unit.

Q: What software does the ENCS 5400 run for virtual network functions?
A: It runs Cisco NFVIS to host virtual network functions, and is designed for Cisco SD-Branch and Enterprise NFV deployments.
