Cisco ENCS5408/K9 | ENCS 5408 NFV Appliance, 8-Core Xeon D, 16GB, No Disk

ENCS5408/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

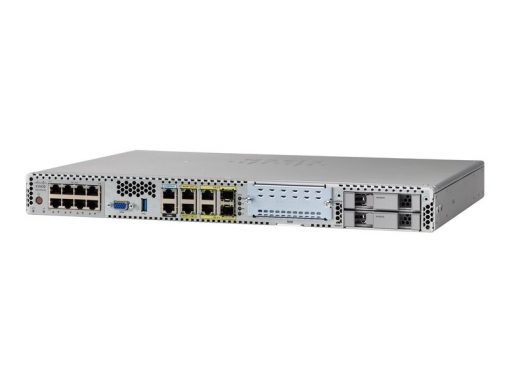

The ENCS 5408 is a 1RU enterprise network compute appliance for SD-Branch and Enterprise NFV deployments, running virtual network functions alongside integrated routing and switching. This model is powered by an 8-core Intel Xeon D-1548 with 16GB DRAM, a built-in 8-port Gigabit LAN switch and a non-PoE power supply, and ships without disks so storage can be specified to suit the workload. A single NIM slot allows WAN and LAN interface expansion for branch and edge sites.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for the Cisco SD-Branch and Enterprise NFV (ENFV) solution
- Runs virtual network functions on integrated x86 compute
- Enterprise-grade components with a 6- to 8-year lifecycle comparable to a traditional ISR
- NIM slot supports online insertion and removal (OIR)
- Integrated virtual KVM support
- Hardware acceleration of inter-VM traffic, IPsec crypto and RAID
- Optional PoE power supply available for the integrated switch

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: Intel Xeon D-1548, 8-core, 2.0 GHz, 12 MB cache
- Memory: 16 GB DDR4 ECC as a single DIMM, 2 DIMM slots, 64 GB maximum
- Form factor: 1RU, 12-inch deep
- Built-in 8-port Gigabit LAN switch
- 2 to 4 Gigabit WAN/LAN ports, dual-mode RJ-45/SFP
- Gigabit management port for the Intel x86 host
- 1 NIM slot supporting WAN interfaces, 4G LTE and Gigabit LAN/WAN NIMs
- Storage: up to 2 SFF drives (SATA, SAS, SSD) with RAID 0/1, no disk included
- Power: single internal supply, 100-240 VAC auto-ranging, non-PoE
- Serial console: RJ-45

FAQs

Q: Does this ENCS5408/K9 include disks?
A: No. This SKU ships without a disk. The chassis supports up to 2 SFF drives (SATA, SAS or SSD) with RAID 0/1, so storage can be fitted to suit your virtual network function requirements.

Q: Can this unit supply PoE to connected devices?
A: This SKU uses the standard non-PoE power supply. The 8-port integrated switch is only PoE-capable with the optional PoE power supply, which is available on the 5408 and 5412 models.

Q: How much memory can the ENCS 5408 support?
A: It has 2 DIMM slots supporting 8, 16 or 32 GB ECC DDR4 modules. This SKU has 16 GB installed as a single DIMM, and the maximum supported is 64 GB.

Q: Does this model include an LTE module?
A: No. The single NIM slot supports WAN interface, 4G LTE and Gigabit LAN/WAN NIMs, but no LTE module is included with this SKU.

Q: What is the ENCS 5408 used for?
A: It is a compute appliance for the Cisco SD-Branch and Enterprise NFV solution, combining routing, switching and x86 compute so branch sites can host virtual network functions on a single 1RU platform.
