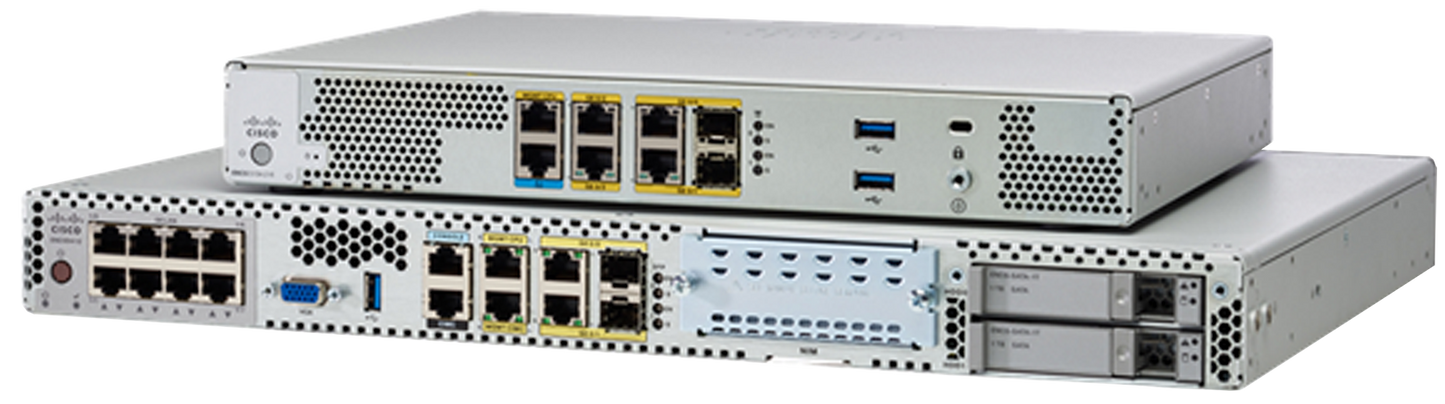

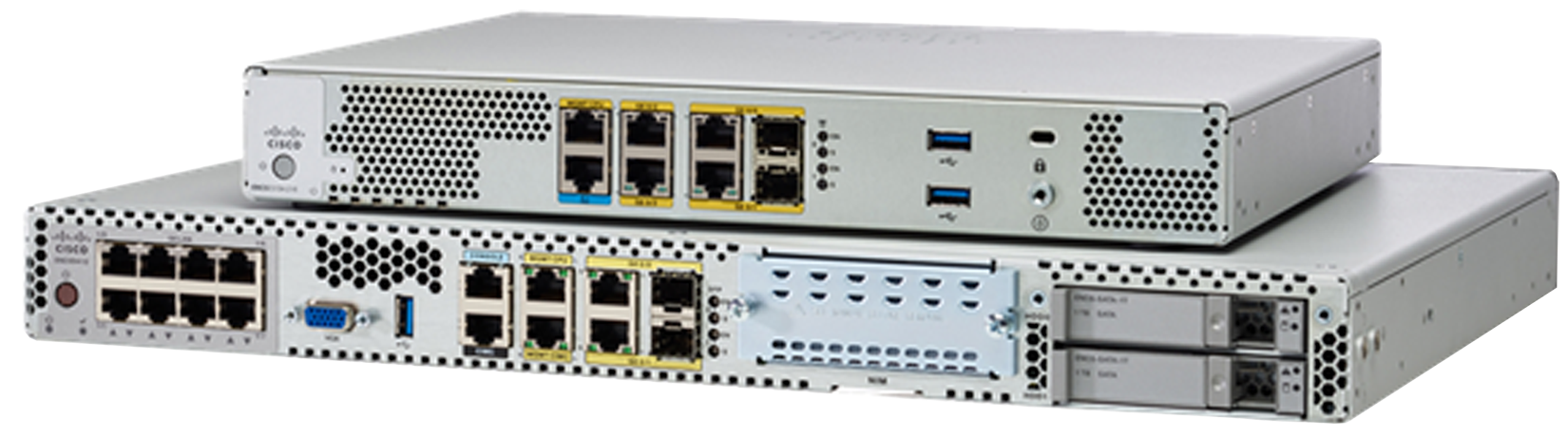

• Cisco ENCS5406P/K9 router with multiple Ethernet ports and front panel
1 1

Cisco

Cisco ENCS5406P/K9 | ENCS 5406 NFV Appliance, 6-Core Intel, No RAM or Disk

ENCS5406P/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ENCS5406P/K9 is the chassis-only version of the Cisco 5406 Enterprise Network Compute System, a 1RU x86 appliance for SD-Branch and Enterprise NFV deployments. It is built around a 6-core Intel Xeon D-1528 processor and combines routing, switching, compute and storage to host virtualised network functions on a single platform. This non-PoE variant ships with no memory or disk installed, so RAM and storage are fitted to suit the deployment.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for Cisco SD-Branch and Enterprise Network Functions Virtualisation (ENFV)
- Runs virtualised network functions such as ISRv, ASAv and vWAAS via NFVIS
- Hardware acceleration for inter-VM traffic, IPsec crypto and RAID
- Integrated Management Controller (CIMC) for lights-out management on certain models
- Enterprise-grade components with a 6 to 8 year lifecycle, in line with traditional ISR platforms
- Online Insertion and Removal (OIR) support for NIMs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Intel Xeon D-1528 processor, 6-core, 1.9 GHz, 9 MB cache
- Chassis only: no RAM and no disk installed
- 2 DIMM slots for ECC DDR4 (8/16/32 GB each), 64 GB maximum system memory
- Motherboard M.2 SATA storage options: 64 GB, 200 GB or 400 GB
- Up to 2 SFF drive bays: SATA HDD 1/2 TB, SAS 1.2/1.8 TB, SATA SSD 480/960 GB
- Optional hardware RAID via LSI MegaRAID SAS 3108
- 8 integrated GE LAN switch ports, no PoE support
- 2 to 4 GE WAN ports (dual-mode RJ-45/SFP)
- GE management port for the x86 host
- 1 Network Interface Module (NIM) slot supporting WAN interfaces and 4G LTE modules (no LTE module included)
- 1RU rack-mountable chassis, 12 inches deep, approx. 17.3 x 13.8 x 1.7 in, 13 lb
- AC power supply, 100-240 VAC, typical 125 W (no modules), maximum 180 W

FAQs

Q: Does the ENCS5406P/K9 include memory or storage?
A: No. This is the chassis-only version with no RAM and no disk installed. Memory (up to 64 GB across 2 DIMM slots) and storage (M.2 SATA and up to 2 SFF drives) need to be fitted separately.

Q: Does this model support PoE?
A: No. The ENCS 5406 does not support PoE. Its 8 integrated LAN switch ports are standard Gigabit Ethernet.

Q: What type of memory does it use?
A: It has 2 DIMM slots for ECC DDR4 memory, supporting 8, 16 or 32 GB modules, for a maximum of 64 GB.

Q: Can it be used with a 4G LTE connection?
A: Yes. The Network Interface Module (NIM) slot supports 4G LTE modules, but no LTE module is included with this SKU.

Q: What is the ENCS5406P/K9 used for?
A: It is a 1RU compute and networking platform for SD-Branch and Enterprise NFV, hosting virtualised network functions such as ISRv, ASAv and vWAAS on one appliance.
