• Cisco AIR-AP1815I-Z-K9C Wi-Fi 5 dual-band wireless access point
1 1

Cisco

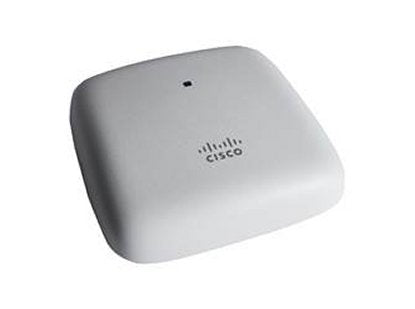

Cisco AIR-AP1815I-Z-K9C | Aironet 1815i Wi-Fi 5 Access Point, Mobility Express

AIR-AP1815I-Z-K9C

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1815i is a dual-band 802.11ac Wave 2 (Wi-Fi 5) indoor access point from the Cisco Aironet 1815 Series. It is aimed at small and medium-sized enterprise networks, including remote workers and micro-offices using Office Extend Access Point (OEAP) mode, where a controller-less deployment is wanted.

This AIR-AP1815I-Z-K9C variant ships with Cisco Mobility Express as its default software, so one access point can run the virtual wireless controller for the rest. It is built for the Z regulatory domain. The radios are 2x2 MU-MIMO with two spatial streams, delivering up to 866.7 Mbps PHY rate on 5 GHz and about 1 Gbps aggregate across both radios. Each radio supports up to 200 clients, or 400 per access point. Wired connectivity is a single 10/100/1000BASE-T RJ-45 port with PoE input, plus an RJ-45 management console port. Maximum power draw is 8.3 W on PoE.

It can also join Cisco AireOS controllers running 8.3.112.0 or later, or Catalyst 9800 Series controllers, in CAPWAP mode. Mobility Express mode needs no separate licence, while joining a Catalyst 9800 controller requires a Cisco DNA subscription.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 2 with MU-MIMO for better performance in higher-density environments
- Cisco Mobility Express runs a virtual wireless controller on one access point, so no separate controller hardware is needed for small deployments
- Can join Cisco AireOS controllers or Catalyst 9800 Series controllers in CAPWAP mode
- Office Extend Access Point (OEAP) mode for remote workers and micro-offices without a VPN
- Cisco User Defined Network support via Cisco DNA Center
- WPA3, WPA2, WPA, 802.1X, 802.11r and 802.11i security with multiple EAP types
- Integrated BLE 4.1 radio for location and asset tracking (future availability)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: 802.11a/b/g/n/ac Wave 2, dual-band (2.4 GHz and 5 GHz)
- MIMO: 2x2 MU-MIMO with 2 spatial streams
- Maximum PHY rate: 866.7 Mbps on 5 GHz (80 MHz channels)
- Wired interface: 1 x 10/100/1000BASE-T autosensing (RJ-45) with PoE input
- Console: management console port (RJ-45)
- Integrated antennas: 2 dBi (2.4 GHz), 4 dBi (5 GHz)
- Maximum clients: 200 per radio, 400 per access point
- Default software: Cisco Mobility Express
- Regulatory domain: Z
- Transmit power: 20 dBm (100 mW) down to -1 dBm (0.78 mW) in 3 dB steps
- Bluetooth: 4.1 including BLE, 4 dBm maximum transmit power
- Memory: 1 GB DRAM, 256 MB flash
- Processor: 710 MHz quad core
- Powering: 802.3af/at PoE switch, or Cisco power injector AIR-PWRINJ5= or AIR-PWRINJ6=
- Power draw: 8.3 W maximum on PoE
- Dimensions (W x L x H): 150.8 x 150.8 x 33 mm without mounting bracket
- Weight: 400 g without mounting bracket or accessories
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 90% non-condensing
- Storage temperature: -30 to 70 C
- Indicators: status LED

FAQs

Q: Does it need a licence to run in Mobility Express mode?
A: No separate licence is needed to run in the default Mobility Express mode. If you join it to a Catalyst 9800 Series controller instead, it requires a Cisco DNA subscription (DNA Essentials or DNA Advantage).

Q: How is it powered?
A: It is powered by an 802.3af/at PoE switch or by a Cisco power injector, AIR-PWRINJ5= or AIR-PWRINJ6=. Maximum draw is 8.3 W on PoE.

Q: Which controllers does it work with?
A: It works with Cisco AireOS controllers (2500, 3500, 5500, Flex 7500 and 8500 Series, WiSM2 and the ISR G2 controller module) running 8.3.112.0/8.3MR1 or later, and with Catalyst 9800 Series controllers. It can also run controller-less in Mobility Express mode.

Q: What does the K9C and Z in this SKU mean?
A: K9C indicates the Mobility Express software image is the default. Z is the regulatory domain, which covers Australia.

Q: Can it be used without a wireless controller?
A: Yes. In Mobility Express mode one access point acts as the virtual controller for the others, so a small deployment needs no separate controller hardware.
