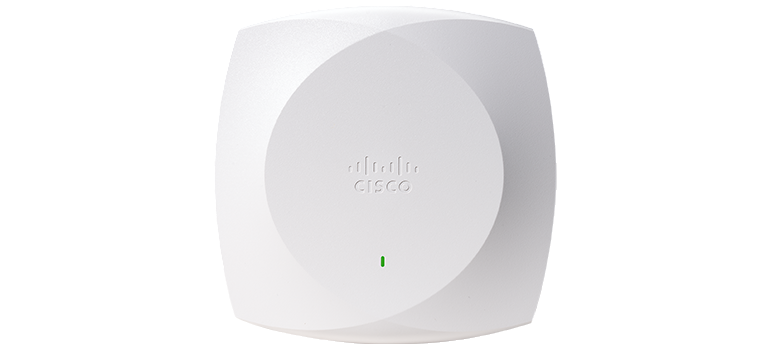

• Cisco CW9172I-RTG Wi-Fi 7 white access point with green light
1 1

Cisco

Cisco CW9172I-RTG | Wireless 9172I Wi-Fi 7 Tri-Radio Access Point, 2x2

CW9172I-RTG

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Wireless 9172I is an indoor Wi-Fi 7 (802.11be) access point with internal omnidirectional antennas, built for low to moderate device density. It suits retail stores, healthcare clinics, boutique hotels, student housing, remote work hubs and distributed sites such as satellite offices, regional branches and logistics hubs. This -RTG Ready To Go global model works in any regulatory domain and ships as a tri-radio 2.4/5/6 GHz unit.

All three radios run Wi-Fi 7 at 2x2:2, with PHY data rates up to 9 Gbps (2x2 320 MHz on 6 GHz, 2x2 160 MHz on 5 GHz). When the 6 GHz band is disabled, the 5 GHz radio can run 4x4 alongside the 2.4 GHz 2x2 radio. A single 100M/1G/2.5G Multigigabit Ethernet port provides the uplink. It is powered by 802.3bt class 5 (32 W) or 802.3at (25.5 W) PoE, with typical draw of about 11 to 12 W on 802.3at. A dedicated scan/aux radio and a BLE IoT radio are built in. Cisco Wireless Essentials or Wireless Advantage subscription licensing is purchased separately.

It is managed by Catalyst 9800 Series Wireless Controllers running IOS XE 17.15.2b or later, by Catalyst 9000 switches with Embedded Wireless Controller in SDA mode, or from the Meraki cloud. Existing AIR-AP-BRACKET-1 and AIR-AP-BRACKET-2 brackets can be reused.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Tri-radio Wi-Fi 7 across 2.4, 5 and 6 GHz for entry-level, low to moderate density deployments
- Global-use access point, one SKU for any regulatory domain
- Automatic discovery of management mode: Catalyst 9800 on-premises, Meraki cloud or hybrid
- Software-selectable 4x4 operation on 5 GHz when the 6 GHz band is disabled
- Dedicated scanning radio for WIDS/WIPS and RF optimisation
- BLE IoT radio for asset tracking and smart-space automation
- Wi-Fi 7 features including 4096 QAM, Multilink operation, preamble puncturing and OFDMA
- Trust Anchor security with image signing and secure boot

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi standard: Wi-Fi 7 (802.11be) on all three radios
- Bands: 2.4 + 5 + 6 GHz tri-radio, all 2x2:2
- Alternate mode: 2.4 GHz 2x2 plus 5 GHz 4x4 when 6 GHz is disabled
- Maximum PHY data rate: up to 9 Gbps
- Channel widths: 20/40/80/160/320 MHz (6 GHz), 20/40/80/160 MHz (5 GHz), 20 MHz (2.4 GHz)
- Uplink: 1x 100M/1G/2.5G Multigigabit Ethernet (RJ-45)
- Console: management console port (RJ-45), 115200 bps
- USB: USB 2.0, 4.5 W
- Additional radios: dedicated scan/aux radio and BLE IoT radio
- Antennas: internal omnidirectional, peak gain 4 dBi (2.4 GHz), 5.5 dBi (5 GHz), 6 dBi (6 GHz)
- Power: 802.3bt class 5 (32 W at PD) or 802.3at (25.5 W at PD), DC power also supported
- Reduced mode: 802.3af runs 1x1 on 2.4 GHz only (12.95 W)
- Power consumption (tri radio, 802.3at): idle 10.7 W, typical 12.2 W
- Transmit power: 23 dBm (200 mW) maximum down to -4 dBm per band
- Dimensions (without brackets): 20 x 20 x 5.3 cm
- Weight: 874 g
- Operating temperature: 0 to 50 C
- Storage temperature: -40 to 70 C
- Operating humidity: 0 to 95% non-condensing
- Mounting brackets: AIR-AP-BRACKET-1 or AIR-AP-BRACKET-2
- Software: Cisco IOS XE 17.15.2b or later
- Certifications: Wi-Fi Alliance Wi-Fi 7, Wi-Fi 6E, WPA3, Bluetooth Low Energy

FAQs

Q: Does the CW9172I-RTG need a licence or subscription?
A: Yes. Cisco Wi-Fi 7 access points require a Cisco Networking Subscription, either Cisco Wireless Essentials or Cisco Wireless Advantage. It is purchased separately from the hardware. Meraki cloud management also needs an active Meraki subscription.

Q: How is it powered?
A: It runs from 802.3bt class 5 PoE (32 W at the device) for full features including USB, or 802.3at PoE+ (25.5 W). 802.3af is supported only in a reduced 1x1 2.4 GHz mode. A DC power input is also available.

Q: Which controllers and management platforms does it work with?
A: It is managed by Catalyst 9800 Series Wireless Controllers (physical or virtual) on IOS XE 17.15.2b or later, by Catalyst 9000 switches with Embedded Wireless Controller in SDA mode, or from the Meraki cloud. Prime Infrastructure is not supported.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Which mounting brackets does it use?
A: It uses the existing Cisco brackets AIR-AP-BRACKET-1 or AIR-AP-BRACKET-2, so earlier mounting hardware can be reused.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
