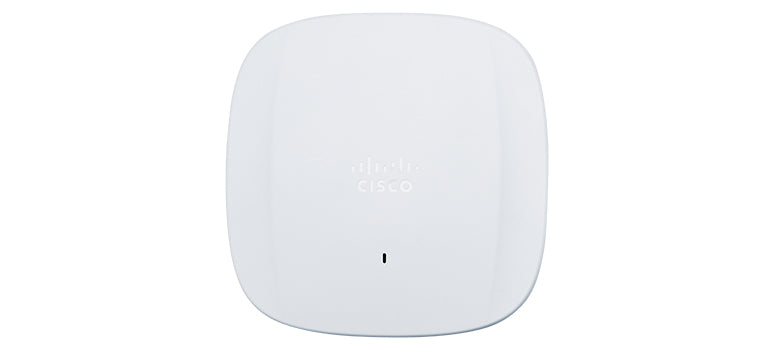

Meraki CW9166I-Z | Catalyst 9166I Wi-Fi 6E Tri-Band Access Point, 4x4 MU-MIMO

Q: What is the XOR radio feature on the Catalyst 9166I?
A: The third radio on the CW9166I can be configured to operate on either the 5 GHz or 6 GHz band (exclusive OR), providing deployment flexibility based on client device support and spectrum requirements.

Q: What PoE standard does the CW9166I require?
A: The CW9166I requires 802.3at (PoE+) for basic operation with up to 25W power draw. For full functionality including USB port operation (up to 4.5W), 802.3bt (UPoE) is required, drawing up to 30.5W. The access point does not support 802.3af.

Q: Can the CW9166I be managed by Cisco Catalyst Center or Meraki Dashboard?
A: Management depends on the specific SKU variant. Certain models support Cisco Catalyst Center (formerly DNA Center) with Cisco Catalyst 9800 Series Wireless Controllers in lightweight or FlexConnect modes, while Meraki-specific SKUs are cloud-managed via Meraki Dashboard.

Q: What deployment environments is the Catalyst 9166I designed for?
A: The CW9166I is engineered for high-density indoor environments such as corporate offices, educational institutions, healthcare facilities, retail spaces, and hospitality venues requiring ultra-high wireless performance and tri-band Wi-Fi 6E coverage.

Q: Does the Catalyst 9166I support IoT device connectivity?
A: Yes, the CW9166I includes an integrated Bluetooth 5.1 Low Energy radio for location services, asset tracking, and wayfinding applications. It also features a USB 2.0 port for additional IoT connectivity when powered by 802.3bt.
