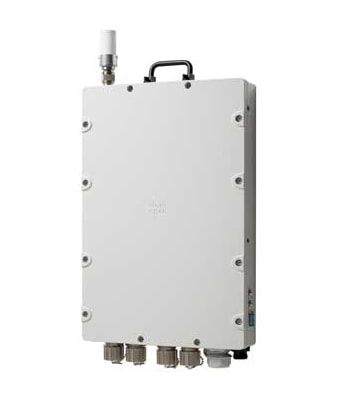

Cisco A901S-2SG-F-AH | ASR 901S Rugged Router, 2x SFP + Cu, AC PSU, PoE+
SKU:A901S-2SG-F-AH
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ASR 901S is a compact, IP65-rated, fanless outdoor aggregation services router built for cell-site and small-cell mobile backhaul. It suits operators deploying Cisco Unified RAN Backhaul at the network edge, where pole, wall or lamppost mounting and passive cooling are needed.
This A901S-2SG-F-AH variant provides three external Gigabit Ethernet ports: two SFP ports and one copper RJ-45 port. A cable gland interface carries the internal ports, which are two SFP and one copper. It is powered from a single AC supply (100-240 VAC, 50-60 Hz) and draws less than 40 W without PoE+. PoE+ is available on the copper port, with one second of holdover for one PoE+ port. It operates from -40 to 65 C, though the optics fitted may limit the range.
The SFP ports accept Cisco-supported 1G SFP modules over IP65-sealed LC cable systems. Mounting accessories include the A901S-MNT-POLE and A901S-MNT-WALL kits, and the A901S-CABLE-MM and A901S-CABLE-SM cables are available for fibre connections.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- IP65-compliant compact enclosure designed for outdoor deployments
- Fanless passive cooling design
- Layer 2, Layer 3 and MPLS deployment models
- OA&M tools including CFM, Y.1731 FM/PM, Y.1564 compliance and service loopback
- Proven interoperability with multiple microwave vendors
- Flexible combination of copper and SFP Gigabit Ethernet ports
- PoE+ on the copper port with one second of holdover
- Pole, wall and lamppost mounting options
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Chassis model: A901S-2SG-F-AH
- External ports: 2 x SFP + 1 x copper (RJ-45), 1GbE
- Internal ports via cable gland interface: 2 x SFP + 1 x Cu
- Power supply: 1 x AC PSU
- AC input: 100-240 VAC, 50-60 Hz
- PoE+: 1 second holdover for 1 PoE+ port
- Maximum power consumption: under 40 W without PoE+
- Console port: 1, up to 115.2 kbps
- Enclosure: IP65-compliant, fanless passive cooling
- Operating temperature: -40 to 65 C (optics may limit the range)
- Relative humidity: 10 to 85%, noncondensing
- Operational altitude: up to 4000 m at 40 C ambient
- Weight (with PoE+): approx. 7.4 kg
- Mounting: bracket, wall, pole or lamppost
FAQs
Q: What power does the A901S-2SG-F-AH use?
A: It uses a single AC power supply rated 100-240 VAC, 50-60 Hz with a three-pin AC input. Maximum consumption is under 40 W without PoE+.
Q: Does it support PoE+?
A: Yes. PoE+ is supported on the copper port, with one second of holdover for one PoE+ port on this AC variant.
Q: Which SFP modules and accessories does it work with?
A: The SFP ports take Cisco-supported 1G SFP modules over IP65-sealed LC cable systems. Related accessories include the A901S-MNT-POLE and A901S-MNT-WALL mounting kits and the A901S-CABLE-MM and A901S-CABLE-SM cables.
Q: How does this model differ from other ASR 901S variants?
A: This SKU has two external SFP ports and one external copper port, with an AC power supply and one second of PoE+ holdover. Sibling SKUs differ in port combination and power supply type.
Q: What environments is it rated for?
A: It is IP65-compliant and fanless, operating from -40 to 65 C (optics may limit this range) at up to 85% noncondensing humidity and altitudes up to 4000 m.
