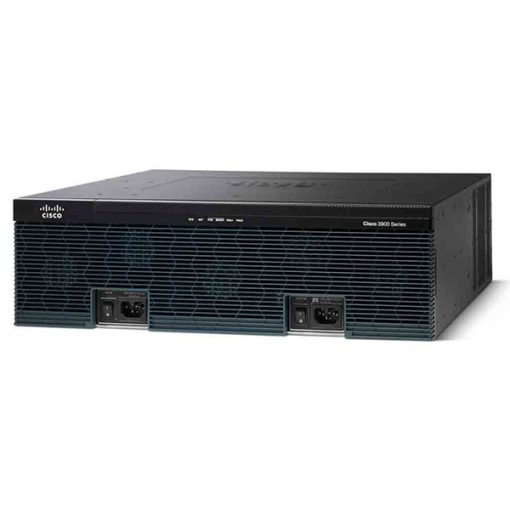

• Cisco 3945E-SEC/K9 router with 4x 1G ports and sleek black design
1 1

Cisco

Cisco CISCO3945E-SEC/K9 | ISR 3900 3945E Router, SPE250, Security Bundle SEC

CISCO3945E-SEC/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 3945E is a second-generation Integrated Services Router in the Cisco 3900 series, built on the SPE250 services performance engine. This SKU is the Security Bundle, which includes the SEC technology-package licence PAK, making it suited to branch-office and regional-site WAN edge deployments that need integrated VPN and firewall services alongside modular voice, wireless and application services.

The chassis provides 4 integrated 10/100/1000 GE WAN/LAN ports (RJ-45 / SFP combo), 3 EHWIC slots, 3 onboard DSP (PVDM3) slots, 4 service module slots and 1 ISM slot. It ships with 1 GB DRAM and 256 MB Compact Flash by default and uses integrated hardware crypto acceleration for IPsec and SSL. It is a 3 RU rack-mount unit powered by an internal AC supply, with PoE and DC internal supply options and redundant supply support.

The SEC licence PAK enables the Security technology package on the Cisco IOS Universal image, on top of the default IP Base. Other technology packages such as UC and Data are licensed separately. The router accepts Cisco EHWICs, PVDM3 DSP modules, ISMs and Services Ready Engine service modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- SEC licence PAK enables the Security technology package on the Cisco IOS Universal image
- SPE250 services performance engine for higher performance than the standard 3945
- Integrated hardware-accelerated IPsec and SSL encryption
- Multigigabit fabric for inter-module communication without impacting router performance
- Online insertion and removal of service modules
- Dual internal power supplies for redundancy or additional enhanced PoE power
- Supports Services Ready Engine modules, EHWICs and PVDM3 DSP modules
- Universal Cisco IOS image with feature sets activated by software licence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Platform: Cisco 3945E with SPE250 services performance engine
- Integrated ports: 4 x 10/100/1000 GE WAN/LAN (RJ-45 / SFP combo)
- EHWIC slots: 3
- Onboard DSP (PVDM3) slots: 3
- Service module slots: 4
- Double-wide service module slots: 1
- ISM slots: 1
- Default DRAM: 1 GB (2 x 512 MB DIMMs)
- Default Compact Flash: 256 MB
- Hardware crypto acceleration: IPsec and SSL
- USB: 2 x USB 2.0 type A
- Console: 1 x USB type B, 1 x serial console, 1 x serial auxiliary
- AC input: 100 to 240 VAC auto-ranging, 47 to 63 Hz, 7.1 to 3.0 A
- Maximum PoE power to endpoints: 520 W (1040 W with enhanced PoE)
- Form factor: 3 RU, 19-inch EIA / 23-inch rack mount
- Dimensions (H x W x D): 133.35 x 438.15 x 476.25 mm
- Weight with AC supply, no modules: 17.7 kg
- Operating temperature: 0 to 40 C
- Operating relative humidity: 5 to 85%
- Licensing: SEC technology-package licence PAK included

FAQs

Q: What licence is included with this router?
A: It includes the SEC (Security) technology-package licence PAK on the Cisco IOS Universal image, on top of the default IP Base. Other technology packages such as UC and Data are licensed separately.

Q: How does the 3945E differ from the standard 3945?
A: The 3945E uses the SPE250 services performance engine, which delivers higher performance than the SPE150 used in the standard 3945.

Q: What modules does the 3945E support?
A: It supports Cisco EHWICs, PVDM3 DSP modules, ISMs and Services Ready Engine service modules, with 3 EHWIC slots, 3 DSP slots, 4 service module slots and 1 ISM slot.

Q: What power options does this router support?
A: It uses an internal AC supply (100 to 240 VAC, 47 to 63 Hz), with PoE and DC internal supply options and redundant supply support.

Q: Does it include hardware encryption?
A: Yes. It has integrated hardware crypto acceleration for IPsec and SSL.
