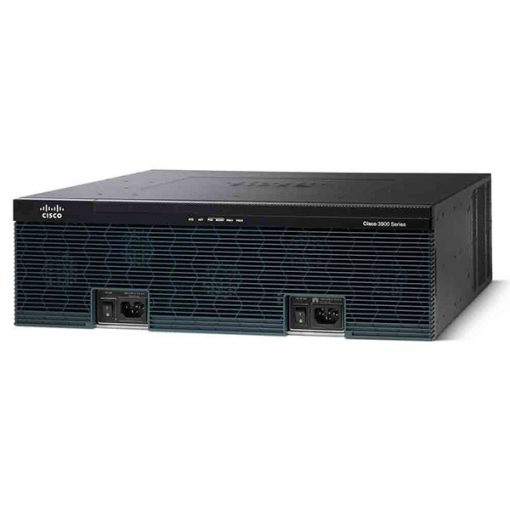

• Cisco 3945-V/K9 router with 3x 1G ports, sleek black design
1 1

Cisco

Cisco CISCO3945-V/K9 | ISR 3945 Router, Voice Bundle, PVDM3-64, SPE150

CISCO3945-V/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 3945 voice bundle is a Cisco 3900 Series Integrated Services Router G2 built on the SPE150 services performance engine. It suits medium to large branch offices that need an integrated voice gateway, WAN routing, VPN and security services in a single chassis.

This bundle includes a PVDM3-64 DSP module and a Unified Communications licence PAK on an IP Base image. It provides 3 onboard 10/100/1000 ports, 2 of which are SFP-capable, along with 4 EHWIC slots, 4 onboard DSP slots, 4 service-module slots (one supports double-wide) and 1 ISM slot. Default memory is 1 GB DDR2 ECC DRAM, expandable to 2 GB, with 256 MB CompactFlash expandable to 4 GB. It supports up to 350 CUCM Express sessions and up to 1200 SRST sessions. Embedded hardware crypto acceleration handles IPsec and SSL.

The chassis takes EHWIC, HWIC, WIC, VIC and VWIC interface cards, SM and SM-D service modules, and PVDM3 DSP modules. SFP optics can be fitted to two of the three onboard Gigabit ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular SPE150 services performance engine, upgradable as WAN needs grow
- Dual integrated power supplies, with optional PoE boost mode in place of redundancy
- Integrated power distribution to modules supporting 802.3af PoE
- Embedded hardware-accelerated VPN encryption
- Cisco IOS Firewall, Zone-Based Firewall, IPS and Content Filtering
- High-density packet voice DSP modules for voice and video
- Cisco Unified Border Element, Unity Express voicemail, CUCM Express and SRST support
- NEBS-designed platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard Gigabit ports: 3 x 10/100/1000 RJ-45, 2 also SFP-capable
- Services performance engine: SPE150 (C3900-SPE150/K9)
- EHWIC slots: 4
- Onboard DSP (PVDM) slots: 4, PVDM3-64 included
- Service-module slots: 4, 1 double-wide capable
- ISM slots: 1
- Memory: 1 GB DDR2 ECC DRAM default, 2 GB maximum
- CompactFlash: 256 MB default in slot 0, 4 GB maximum per slot
- USB: 2 x USB 2.0 Type A, 1 x USB Type B console
- Hardware crypto acceleration: IPsec and SSL
- Cisco Unified Communications Manager Express sessions: 350
- Cisco Unified SRST sessions: 1200
- Software image: IOS IP Base with UC licence PAK
- DC operating input voltage: 24 to 60 VDC
- Typical power with no modules: 105 W
- Maximum power with AC or PoE power supply: 540 W
- Online insertion and removal: service modules

FAQs

Q: Which licences does this bundle ship with?
A: It ships with the IOS IP Base image and the Unified Communications licence PAK. The Security licence is not part of this bundle, as that is the CISCO3945-VSEC/K9 variant.

Q: How many voice sessions does it support?
A: It supports up to 350 Cisco Unified Communications Manager Express sessions and up to 1200 SRST sessions.

Q: What interface cards and modules does it take?
A: It accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, SM and SM-D service modules, PVDM3 DSP modules and CompactFlash up to 4 GB.

Q: What power does it draw?
A: Typical draw is 105 W with no modules, and maximum draw is 540 W with an AC or PoE power supply. It has dual integrated power supply slots and supports 802.3af PoE distribution to modules.

Q: Can I use SFP optics on the onboard ports?
A: Yes, 2 of the 3 onboard 10/100/1000 ports are SFP-capable, so they can take SFP optics instead of RJ-45 copper.
