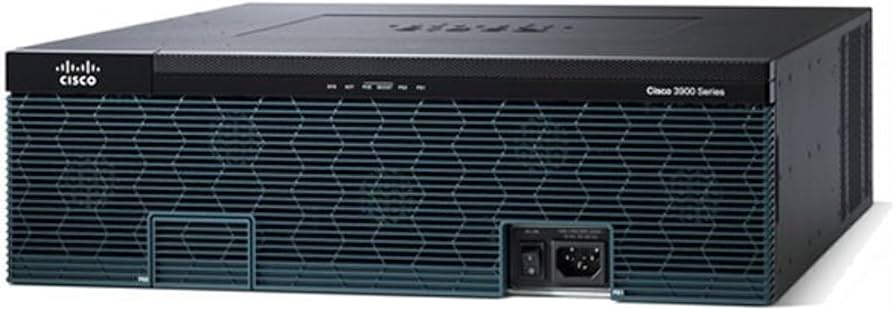

• Cisco 3945 HSEC+/K9 router with black silver honeycomb front
1 1

Cisco

Cisco CISCO3945-HSEC+/K9 | 3945 Modular Router, 3GE, SPE150, HSEC+ Bundle

CISCO3945-HSEC+/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 3945 is a modular Integrated Services Router from the Cisco 3900 Series (ISR G2), built for branch and regional-office WAN edge deployments. It combines routing, security and voice services in a single 3RU chassis, and suits sites that need secure site-to-site and remote-access VPN termination alongside a converged voice and data gateway.

This HSEC+ bundle pairs the HSEC high-performance security licence with the VPN ISM hardware encryption module, supporting embedded IPsec and SSL cryptography acceleration. It has three onboard 10/100/1000 Gigabit Ethernet ports, with two SFP-based ports that each disable one RJ-45 port, and a field-replaceable SPE150 Services Performance Engine. Expansion comes from four EHWIC slots, four DSP slots, four service module slots and one ISM slot. Memory is 1 GB DDR2 ECC DRAM by default, expandable to 2 GB, with 256 MB of external CompactFlash by default and up to 4 GB per slot.

The chassis supports existing ISR EHWIC, PVDM and service modules, plus SFP optics on the onboard Gigabit ports. Power supply options are AC, AC-PoE and DC, with redundant supplies supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Embedded hardware-based IPsec and SSL cryptography acceleration
- Field-replaceable Services Performance Engine (SPE150) for performance upgrades
- Multigigabit fabric architecture, with up to 150 Mbps of WAN performance with services enabled
- Voice and video capable DSP slots with Cisco Unified CME and SRST support
- Optional firewall, intrusion prevention, call processing and voicemail service modules that need no external interface connections
- Online insertion and removal (OIR) of service modules
- Supports existing ISR EHWIC, PVDM and service modules
- Optional redundant internal power supplies (AC, AC-PoE, DC)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN/LAN ports: 3 x 10/100/1000 Gigabit Ethernet
- RJ-45-based ports: 3
- SFP-based ports: 2 (each disables one RJ-45 port)
- Services Performance Engine: SPE150 (field-replaceable)
- EHWIC slots: 4 (2 double-wide)
- DSP (PVDM) slots: 4
- Service module slots: 4 (1 double-wide)
- ISM slots: 1 (VPN ISM module in this bundle)
- Memory: 1 GB DDR2 ECC DRAM default, 2 GB maximum
- External CompactFlash: Slot 0 256 MB default, 4 GB maximum; Slot 1 empty by default, 4 GB maximum
- USB 2.0 Type A ports: 2
- Console ports: USB Type B and serial, up to 115.2 kbps
- Auxiliary port: 1 serial, up to 115.2 kbps
- Cisco Unified SRST sessions: 1200
- Cisco Unified CME sessions: 350
- Power supply options: Internal AC, AC-PoE and DC, redundant supported
- AC input: 100 to 240 VAC autoranging, 47 to 63 Hz
- DC input: 24 to 60 VDC
- Typical power (no modules): 105 W
- Dimensions (H x W x D): 133.35 x 438.15 x 476.25 mm, 3 RU
- Weight with AC power supply (no modules): 17.7 kg
- Weight fully configured: 27.2 kg
- Operating temperature up to 3000 m: 0 to 40 C
- Maximum operating altitude: 4000 m

FAQs

Q: What does the HSEC+ bundle include?
A: The bundle includes the HSEC high-performance security licence PAK and the VPN ISM hardware encryption module. The base IOS image is IP Base, and the Data, UC and other technology packages are separate licences.

Q: What power supply options does the 3945 support?
A: Internal AC, AC-PoE and DC power supplies are supported, with redundant supplies available. AC input is 100 to 240 VAC autoranging and DC input is 24 to 60 VDC. Typical power with no modules is 105 W.

Q: Which modules and optics does it work with?
A: It supports EHWIC, PVDM/DSP, ISM and service modules from the ISR G2 portfolio. CompactFlash cards up to 4 GB and SFP optics on the onboard Gigabit ports are also supported.

Q: How many onboard Gigabit ports are there and how do the SFP ports work?
A: There are three onboard 10/100/1000 ports. Two of them are SFP-based, and each SFP port disables its paired RJ-45 port when used.

Q: What is the replacement path for the Cisco 3945?
A: The Cisco 3900 Series is end-of-sale, with the Cisco ISR 4431 and ISR 4451-X as the announced replacements.
