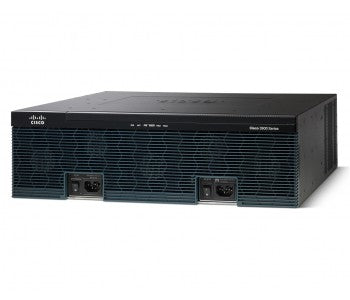

• Cisco 3925-V/K9 enterprise router with black chassis and silver GE ports
1 1

Cisco

Cisco CISCO3925-V/K9 | 3900 Series 3x GE Router, Voice Bundle, PVDM3-64, CUBE-25

CISCO3925-V/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 3925 Voice Bundle is a modular router from the 3900 Series Integrated Services Routers (ISR G2), built for medium-to-large branch and enterprise sites that need a voice gateway alongside secure WAN connectivity. It suits deployments using CUBE or SBC functions, SRST and CME, with optional application services added through its module slots.

This voice bundle pairs the 3925 chassis with a PVDM3-64 DSP module, a Unified Communications licence PAK and an FL-CUBE25 licence for 25 CUBE sessions. It has 3 onboard 10/100/1000 Gigabit Ethernet ports, a C3900-SPE100/K9 Services Performance Engine, 4 EHWIC slots, 4 onboard DSP (PVDM3) slots, 2 service module slots and 1 ISM slot. Default memory is 1 GB DDR2 DRAM with 256 MB Compact Flash, and embedded hardware crypto acceleration covers IPsec and SSL. It runs the IP Base feature set. Security and Data licences are separate technology packages.

The router accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, PVDM3 DSP modules, Service Modules including SRE, and ISM modules. DRAM can be upgraded using MEM-3900-1GU4GB or MEM-3900-1GU2GB.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable Services Performance Engine allows router performance to scale
- Embedded hardware-based encryption acceleration
- Voice and video capable DSP slots supporting PVDM3 modules
- Cisco Unified Border Element (CUBE) with a 25-session licence
- Optional firewall, intrusion prevention, call processing, voicemail and application services
- Service Module and EHWIC slots for flexible WAN, voice and application modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard 10/100/1000 ports (WAN or LAN): 3
- Services Performance Engine: C3900-SPE100/K9
- EHWIC slots: 4
- Onboard DSP (PVDM) slots: 4
- DSP module: PVDM3-64
- Service module slots: 2 (1 doublewide capable)
- ISM slots: 1
- Default DRAM (DDR2 ECC): 1 GB
- Maximum DRAM (DDR2 ECC): 2 GB (4 GB via MEM-3900-1GU4GB upgrade)
- Default Compact Flash: Slot 0: 256 MB, Slot 1: none
- Embedded hardware crypto acceleration (IPsec and SSL): Yes
- Online insertion and removal (OIR): Services modules
- Default IOS feature set: IP Base
- Licences in bundle: UC License PAK, FL-CUBE25
- AC input: 100 to 240 VAC autoranging
- Chassis weight with AC power supply (no modules): 39 lb (17.7 kg)
- Dimensions (H x W x D): 5.25 x 17.25 x 18.75 in. (133.35 x 438.15 x 476.25 mm)

FAQs

Q: Which licences does this voice bundle include?
A: It ships with the IP Base feature set, a Unified Communications licence PAK and an FL-CUBE25 licence for 25 CUBE sessions. Security and Data licences are separate Cisco ISR G2 technology packages and are not part of this bundle.

Q: Which voice features is this bundle designed for?
A: The PVDM3-64 DSP module and UC licence PAK support voice gateway deployments, including CUBE, SRST and CME functions.

Q: What interface cards and modules does it accept?
A: It accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, PVDM3 DSP modules, Service Modules including SRE, and ISM modules.

Q: Can the memory be upgraded?
A: Yes. It ships with 1 GB of DDR2 DRAM and can be upgraded using MEM-3900-1GU2GB or MEM-3900-1GU4GB.

Q: What power input does the AC model use?
A: The AC power supply accepts 100 to 240 VAC autoranging input.
