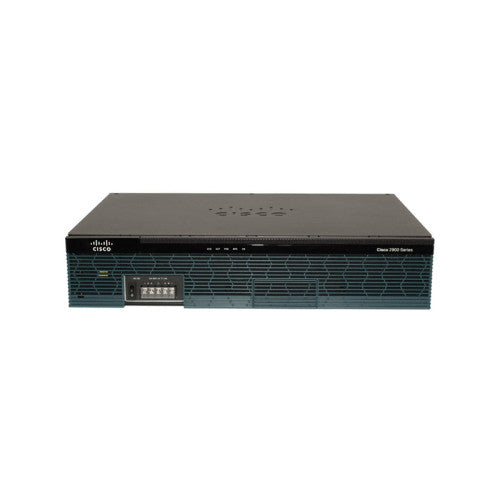

• Cisco 2951-V/K9 ISR G2 router with green accents and grille
1 1

Cisco

Cisco CISCO2951-V/K9 | ISR 2951 Router, Voice Bundle, UC-Ready

CISCO2951-V/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 2951 is the highest-density member of the modular 2900 Series ISR G2 branch-office routers. The CISCO2951-V/K9 is the Voice Bundle SKU, aimed at small and midsize branch sites that run voice and unified communications services on the router alongside data routing, security and WAN connectivity.

It provides 3 onboard 10/100/1000 RJ-45 WAN ports and 1 SFP-based Gigabit Ethernet port, which shares with one of the RJ-45 ports. Expansion comes from 4 EHWIC slots (2 double-wide), 2 Service Module slots (1 double-wide), 1 ISM slot and 3 onboard PVDM3 DSP slots. Memory is 512 MB DDR2 ECC DRAM by default, expandable to 2 GB. Concurrent services throughput is up to 75 Mbps, and embedded hardware IPsec acceleration is built in. For call control it supports up to 250 Cisco Unified SRST sessions and up to 150 Cisco Unified CME sessions.

The router runs a single Cisco IOS Universal image, with IP Base enabled by default and the Data, Unified Communications and Security technology sets activated through software licensing. It accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, service modules including SRE, ISM modules, PVDM3 DSP modules and SFPs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single Cisco IOS Universal image containing all technology sets, activated by software licence
- Multi-core processors and Multigigabit Fabric (MGF) for module-to-module communication
- TDM interconnectivity fabric for DS-0 channel scaling in UC deployments
- Embedded hardware IPsec VPN acceleration, used with the optional Security licence
- Voice- and video-capable PVDM3 DSP slots, with PVDM2 supported via adapter
- Native Cisco Unified CME and SRST support within IOS
- USB-based console port alongside traditional console and auxiliary ports
- Supports wired and wireless WAN connectivity including T1/E1, T3/E3, xDSL, and copper and fibre Gigabit Ethernet
- Cisco Services Ready Engine (SRE) service modules for hosting application services

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 3 x 10/100/1000 RJ-45
- SFP-based Gigabit Ethernet port: 1 (using the SFP disables the corresponding RJ-45 port)
- EHWIC slots: 4 (2 double-wide)
- Service Module slots: 2 (1 double-wide)
- ISM slots: 1
- Onboard PVDM3 DSP slots: 3
- Memory: 512 MB DDR2 ECC DRAM default, 2 GB maximum
- Concurrent services throughput: up to 75 Mbps
- Cisco Unified SRST sessions: up to 250
- Cisco Unified CME sessions: up to 150
- Service module slot throughput: up to 4 Gbps toward the route processor, up to 2 Gbps to other module slots over MGF
- EHWIC slot throughput: up to 1.6 Gbps toward the route processor, up to 2 Gbps to other module slots over MGF
- PVDM3 slot link: 2 Gbps aggregate to the system via MGF
- Embedded hardware-based cryptography and acceleration: Yes
- NEBS: designed for NEBS environments
- Power: internal AC supply by default, optional PoE-capable AC and DC supplies, external Cisco RPS 2300 for redundancy or PoE boost

FAQs

Q: Which software licences does the ISR 2951 use?
A: It runs a single Cisco IOS Universal image. IP Base is enabled by default, and the Data, Unified Communications and Security technology sets are activated separately through Cisco software activation.

Q: How many IP phones can it support for survivable call control?
A: The ISR 2951 supports up to 250 Cisco Unified SRST sessions and up to 150 Cisco Unified CME sessions.

Q: Can I use the SFP port and all three RJ-45 ports at the same time?
A: No. The SFP-based Gigabit Ethernet port shares with one of the RJ-45 ports, so using the SFP disables the corresponding RJ-45 port.

Q: What can be added to the expansion slots?
A: It accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, service modules including SRE, ISM modules, PVDM3 DSP modules (PVDM2 via adapter) and SFPs.

Q: How is the router powered and can it be made redundant?
A: It uses an internal AC supply by default, with optional PoE-capable AC and DC supplies. An external Cisco RPS 2300 can provide redundancy or PoE boost.
