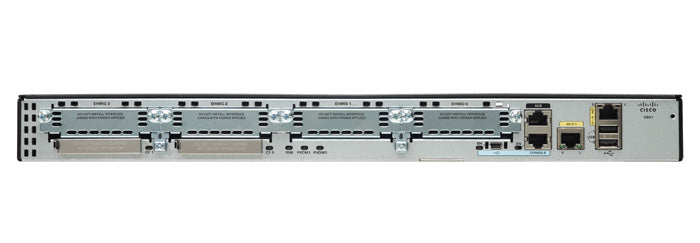

• Cisco 2951 ISR G2 router with 3 GE LAN ports and expansion slots
1 1

Cisco

Cisco CISCO2951-K9 | ISR 2951 Router, 3x GE, 4x EHWIC, 3x DSP, IP Base

CISCO2951-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 2951 is a modular second-generation Integrated Services Router from the Cisco 2900 Series, built for larger branch offices and small to medium enterprise WAN edge deployments that need to consolidate voice, video, security and data services on a single platform.

It provides three onboard 10/100/1000 Gigabit Ethernet WAN ports, one of which is an RJ-45/SFP combination port. Expansion comes from four EHWIC slots (two of them double-wide), two service module slots (one double-wide), one Internal Services Module slot and three onboard PVDM3 DSP slots. Memory is 512 MB DDR2 ECC DRAM by default, expandable to 2.5 GB, and concurrent services WAN performance is up to 75 Mbps. Embedded hardware-based IPSec VPN acceleration is included, and the unit supports up to 250 Cisco Unified SRST sessions or 150 CCME sessions.

This SKU runs the Cisco IOS Universal image with the IP Base technology package enabled by default. Data, Unified Communications and Security licences are optional and activated through Cisco software activation. The router accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, service modules, ISM modules such as the Services Ready Engine, PVDM3 DSP modules and SFP optics on the combination port.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular platform with EHWIC, service module, ISM and PVDM3 slots for field upgrades
- Embedded IPSec VPN hardware acceleration on board
- Multigigabit Fabric (MGF) for high-bandwidth module-to-module communication
- TDM interconnectivity fabric for scalable DS-0 voice channel capacity
- One of the three GE WAN ports supports SFP fibre connectivity
- USB-based console access
- Optional DC power supply and external redundant power supply support
- Single Universal IOS image with technology packages activated by software licence
- Supports Services Ready Engine and ISM modules for integrated application services

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 3 x 10/100/1000 Gigabit Ethernet
- SFP: 1 combination RJ-45/SFP port (using the SFP port disables the matching RJ-45 port)
- EHWIC slots: 4 (2 double-wide)
- Service module slots: 2 (1 double-wide)
- Internal Services Module (ISM) slots: 1
- Onboard DSP (PVDM3) slots: 3
- Memory: 512 MB DDR2 ECC DRAM default, 2.5 GB maximum
- Concurrent services WAN performance: up to 75 Mbps
- Cisco Unified SRST sessions: 250
- Cisco Unified CCME sessions: 150
- Service module slot throughput: up to 4 Gbps toward the route processor, 2 Gbps to other slots over MGF
- EHWIC slot throughput: up to 1.6 Gbps toward the route processor, 2 Gbps to other slots over MGF
- PVDM3 slot link: 2 Gbps aggregate via MGF
- Storage: 2 external Compact Flash slots
- Console: USB console port plus traditional console and auxiliary ports
- Hardware encryption: embedded IPSec VPN acceleration
- Feature set: IP Base technology package on Universal IOS image
- Power options: AC (default), optional DC, optional PoE-capable supply, optional external RPS (Cisco RPS 2300 with adapter)
- Environment: NEBS-designed

FAQs

Q: Which licence does this SKU include?
A: CISCO2951-K9 runs the Cisco IOS Universal image with the IP Base technology package enabled by default. Data, Unified Communications and Security technology licences are optional and activated through Cisco software activation.

Q: What power options are available?
A: The router uses an internal AC power supply by default. An optional DC supply, an optional PoE-capable supply for integrated switch modules, and an external Cisco RPS 2300 with adapter for redundancy or PoE boost are also supported.

Q: What modules and interface cards does it support?
A: It supports EHWIC, HWIC, WIC, VIC and VWIC interface cards, service modules including double-wide, ISM modules such as the Services Ready Engine, PVDM3 DSP modules and SFP optics on the combination GE port.

Q: How many voice sessions can it handle?
A: It supports up to 250 Cisco Unified SRST sessions or up to 150 Cisco Unified CCME sessions, with three onboard PVDM3 DSP slots for voice processing.

Q: How much memory does it support?
A: It ships with 512 MB DDR2 ECC DRAM and can be expanded to 2.5 GB using the two VLP RDIMM slots.
