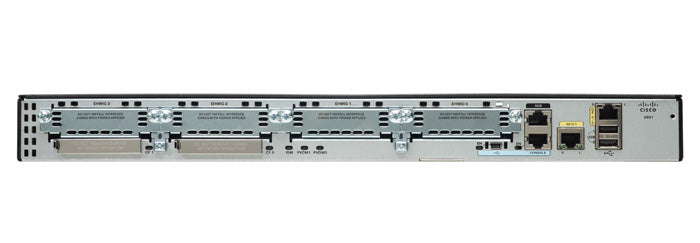

• Cisco 2951-HSEC-K9 ISR G2 router with Gigabit ports and expansion slots
1 1

Cisco

Cisco CISCO2951-HSEC-K9 | ISR 2951 Router, 2RU, HSEC Bundle with ISM VPN Module

CISCO2951-HSEC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 2951 is a modular 2RU router from the Cisco 2900 Series Integrated Services Routers, built for branch offices and small to medium enterprise WAN edge deployments that need encrypted site-to-site connectivity, secure voice and room for service expansion.

This SKU is the 2951 platform bundled with the HSEC (high-performance security) licence and the ISM VPN acceleration module, which sets it apart from the plain HSEC SKU that has no ISM VPN module. It provides 3 onboard 10/100/1000 WAN ports plus 1 SFP-based port that shares with an RJ-45 port. Expansion comes from 4 EHWIC slots (2 double-wide), 2 service module slots (1 double-wide), 3 onboard DSP (PVDM) slots and 1 ISM slot. Memory is 512 MB DDR2 ECC DRAM by default, expandable to 2 GB. Embedded hardware cryptography handles VPN acceleration, and the platform supports up to 250 Cisco Unified SRST sessions and 150 Unified CCME sessions.

The router accepts EHWIC, service module, PVDM3 DSP and ISM modules, with memory upgrades from the MEM-2951 series. Power is 100 to 240 VAC auto-ranging, and an optional AC PoE power supply can supply up to 370 W of end-point PoE. It is well suited to maintaining or replacing existing 2900 Series deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Embedded hardware-based VPN encryption and acceleration, with the ISM VPN module for extra IPsec performance
- HSEC (high-performance security) licence bundle for higher-throughput encrypted tunnels
- Modular EHWIC, service module, DSP and ISM slots for voice, WAN and security services
- Supports Cisco Unified SRST and CCME voice survivability
- Optional AC PoE power supply to power end-point devices
- Runs Cisco IOS software with embedded management features

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 3 x 10/100/1000 RJ-45
- SFP-based ports: 1 (use of the SFP port disables the corresponding RJ-45 port)
- EHWIC slots: 4 (2 double-wide)
- Service module slots: 2 (1 double-wide)
- ISM slots: 1
- Onboard DSP (PVDM) slots: 3
- Memory (DDR2 ECC DRAM): 512 MB default, 2 GB maximum
- Embedded hardware-based cryptography and acceleration: Yes
- Cisco Unified SRST sessions: 250
- Cisco Unified CCME sessions: 150
- AC input voltage: 100 to 240 VAC auto-ranging, 47 to 63 Hz
- Typical power (no modules): 70 W
- Maximum power with AC power supply (platform only): 340 W
- Maximum power with PoE power supply (platform only): 405 W
- Maximum end-point PoE from AC PoE power supply: 370 W
- Dimensions (H x W x D): 88.9 x 438.2 x 469.9 mm
- Rack height: 2RU
- Weight with AC power supply (no modules): 13.2 kg
- Operating temperature up to 1,800 m: 0 to 40 C
- Operating temperature up to 3,000 m: 0 to 25 C

FAQs

Q: Does this router include the HSEC licence?
A: Yes. This bundle includes the HSEC (high-security) licence, which unlocks higher-throughput crypto, together with the ISM VPN module. Check the Cisco licensing guide for the exact IOS feature set.

Q: How does this SKU differ from CISCO2951-HSEC/K9?
A: This SKU is the HSEC bundle with the ISM VPN module (HSEC+), while the plain CISCO2951-HSEC/K9 has no ISM VPN module.

Q: Can it provide PoE to connected devices?
A: With the optional AC PoE power supply, the platform can supply up to 370 W of end-point PoE. Maximum platform power is 340 W with the AC supply and 405 W with the PoE supply.

Q: Which modules does the 2951 accept?
A: It accepts EHWIC modules, service modules, PVDM3 DSP modules and ISM modules. Memory can be upgraded from 512 MB to 2 GB using the MEM-2951 series.

Q: Does it support voice survivability?
A: Yes. It supports Cisco Unified SRST with up to 250 sessions and Unified CCME with up to 150 sessions.
