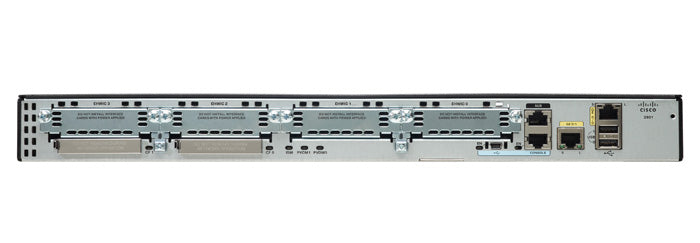

• Cisco 2921-K9 ISR G2 Router with 3 GE LAN Ports and 4 EHWIC Slots
1 1

Cisco

Cisco CISCO2921-K9 | ISR 2921 Router, 3x GE, 4x EHWIC, IP Base, 512MB

CISCO2921-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 2921 is a second-generation modular Integrated Services Router from the Cisco 2900 Series (ISR G2). It is built for branch-office WAN and Internet edge routing, combining security, unified communications (SRST and CME), switching and application services on one modular platform.

This SKU has three onboard 10/100/1000 WAN ports, one of which can use an SFP for fibre connectivity. It has four EHWIC slots, two of which can be used as double-wide, plus one service module slot, one ISM slot and three onboard DSP (PVDM) slots. It ships with 512 MB of DDR2 ECC DRAM, upgradeable to 2 GB, and two external Compact Flash slots. Embedded hardware cryptography handles IPsec VPN acceleration when the Security licence is added, and concurrent services throughput is up to 75 Mbps. It includes the IP Base technology package, with Data, Unified Communications and Security licences available through Cisco Software Activation.

The router accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, PVDM3 DSP modules, and service modules including SRE and Enhanced EtherSwitch.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Embedded hardware encryption acceleration for IPsec VPN, with the optional Security licence
- Multigigabit Fabric (MGF) for module-to-module communication
- TDM interconnectivity fabric for scaling DS-0 channel capacity
- Four EHWIC slots, backward compatible with HWIC, WIC, VIC and VWIC cards
- One of the three GE ports can use an SFP for fibre connectivity
- Support for Cisco Services Ready Engine (SRE) modules and EtherSwitch service modules
- Cisco IOS Universal image with licence-based activation of feature sets
- Energy-saving power management for modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 3 x 10/100/1000 Gigabit Ethernet (RJ-45)
- SFP port: 1 (shares with one RJ-45 port)
- EHWIC slots: 4 (2 double-wide supported)
- Service module slots: 1 (single or double-wide)
- ISM slots: 1
- Onboard DSP (PVDM) slots: 3
- Memory: 512 MB DDR2 ECC DRAM default, 2 GB maximum
- Compact Flash slots: 2 external (upgradeable to 4 GB)
- USB 2.0 ports: 2
- Console: USB console plus traditional console and auxiliary ports
- Concurrent services performance: up to 75 Mbps
- Cisco Unified SRST sessions: 100
- Cisco Unified CCME sessions: 100
- Hardware cryptography and acceleration: embedded
- Technology package: IP Base

FAQs

Q: Which licence does this SKU ship with?
A: CISCO2921-K9 ships with the IP Base technology package. Data, Unified Communications and Security (SEC or SEC-NPE) licences can be added through Cisco Software Activation.

Q: How does the SFP port work?
A: One of the three Gigabit Ethernet ports can use an SFP for fibre connectivity. Using the SFP port disables the corresponding RJ-45 port.

Q: What power options does the 2921 support?
A: It uses an internal AC power supply by default. Optional upgrades are a PoE-capable integrated supply, a DC power supply and an external Redundant Power Supply (RPS).

Q: What interface cards and modules does it accept?
A: It accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, PVDM3 DSP modules, and service modules including SRE and Enhanced EtherSwitch.

Q: Can the memory be upgraded?
A: Yes. It ships with 512 MB of DDR2 ECC DRAM and supports up to 2 GB.
