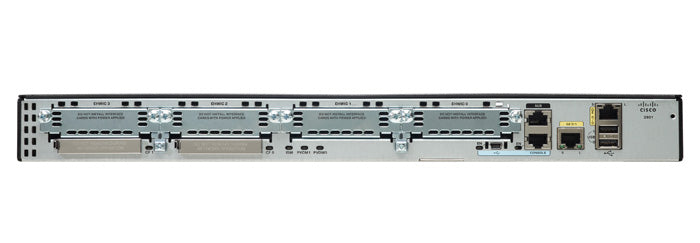

• Cisco 2901-V-K9 ISR router with 2x 1GbE ports and 4x EHWIC slots
1 1

Cisco

Cisco CISCO2901-V-K9 | 2901 Router, Voice Bundle, PVDM3 DSP, UC CME/SRST

CISCO2901-V-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 2901 is the entry-level model in the 2900 Series ISR G2, a modular branch-office router with embedded hardware encryption and DSP slots for voice and video. This voice bundle variant pairs the chassis with PVDM3 DSP capacity and the Unified Communications feature set, making it suited to small branch offices that need routing, VPN security and voice services in a single modular chassis.

Onboard connectivity is two 10/100/1000 RJ-45 WAN ports, plus four EHWIC slots (two of which can take double-wide cards), two onboard PVDM DSP slots and one ISM slot. Memory is 512 MB DDR2 ECC DRAM by default, expandable to 2 GB. The Unified Communications licence supports up to 35 Cisco Unified CME sessions and 35 Unified SRST sessions, covering local call control and survivability if the WAN link to the central call manager fails.

The router runs the Cisco IOS Universal image, with technology sets enabled by software licence. Security and data technology sets are separate optional licences. It accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, ISM modules and PVDM3 DSP modules. There are no service module slots on the 2901.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single Cisco IOS Universal image with technology sets activated by software licence
- Embedded IPSec VPN hardware acceleration
- Multigigabit Fabric (MGF) for module-to-module communication
- TDM interconnectivity fabric for scaling DS-0 voice channel capacity
- Voice and video DSP slots with support for Unified Communications, including CME, SRST and Unified Border Element
- USB-based console access alongside traditional console and auxiliary ports
- Backward compatibility with HWIC, WIC, VIC and VWIC cards through the EHWIC slots
- Optional integrated power supply providing 802.3af and Cisco Inline Power PoE to integrated switch modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 2 x 10/100/1000 RJ-45
- SFP-based ports: 0
- EHWIC slots: 4 (2 double-wide)
- Onboard DSP (PVDM) slots: 2
- ISM slots: 1
- Service module slots: 0
- Memory (default): 512 MB DDR2 ECC DRAM
- Memory (maximum): 2 GB DDR2 ECC DRAM
- Cisco Unified SRST sessions: 35
- Cisco Unified CME sessions: 35
- Embedded hardware-based encryption acceleration: Yes
- Concurrent services throughput: up to 75 Mbps (2900 Series)
- Software image: Cisco IOS Universal, technology sets enabled by licence
- Voice bundle licence: Unified Communications (SL-29-UC-K9)

FAQs

Q: Which licence does this voice bundle include?
A: It includes the Unified Communications technology-package licence (SL-29-UC-K9), which enables Cisco Unified CME and SRST. Security, Data and other technology sets are separate optional licences.

Q: How many phones or sessions does it support for CME and SRST?
A: The Unified Communications licence supports up to 35 Cisco Unified CME sessions and 35 Cisco Unified SRST sessions.

Q: What interface cards does the 2901 accept?
A: Its four EHWIC slots accept EHWIC, HWIC, WIC, VIC and VWIC cards, and two of the slots can be used as a double-wide slot. There is also one ISM slot and two onboard PVDM slots for PVDM3 DSP modules. The 2901 has no service module slots.

Q: Can I power IP phones directly from this router?
A: PoE is available through the optional integrated power supply, which provides 802.3af and Cisco Inline Power to integrated switch modules fitted in the router.

Q: How much memory does the 2901 support?
A: It uses 512 MB of DDR2 ECC DRAM by default and can be expanded to a maximum of 2 GB.
