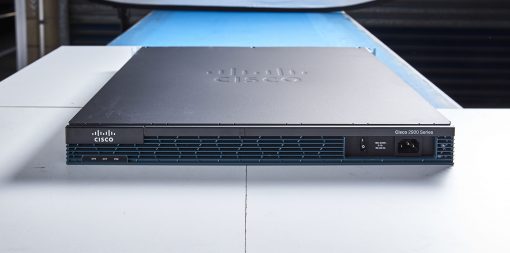

• Cisco 2901-K9 router with black chassis, silver accents, on blue surface
1 1

Cisco

Cisco CISCO2901-K9 | 2901 Router, 2x GE, 4x EHWIC, 1x ISM, IP Base

CISCO2901-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 2901 is a modular second-generation Integrated Services Router from the Cisco 2900 Series (ISR G2), built for small branch offices that need WAN and LAN routing alongside voice, security, VPN and wireless services in a single 1RU chassis.

It provides two onboard 10/100/1000 Gigabit Ethernet WAN ports on RJ-45, four EHWIC slots (two of which can be used as double-wide EHWIC slots), one ISM slot and two onboard DSP (PVDM) slots. Memory is 512 MB DDR2 ECC DRAM by default, expandable to 2 GB. Embedded hardware-based cryptography accelerates IPSec VPN, and the router supports 35 Cisco Unified SRST sessions or 35 CCME sessions for branch voice survivability. This SKU ships with the IP Base technology set enabled on the Cisco IOS Universal image, with Security, Unified Communications and Data technology sets activated by separate software licences.

It works with ISR G2 EHWIC, HWIC, WIC and VWIC interface cards, PVDM DSP modules and ISM modules. The 2901 has no service module slot, so SRE and SM modules are not supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Concurrent services performance of up to 75 Mbps on the 2900 Series
- Multigigabit Fabric (MGF) for high-bandwidth module-to-module communication
- TDM interconnectivity fabric for scaling DS-0 channel capacity
- Embedded IPSec VPN hardware encryption acceleration
- USB console port alongside traditional console and auxiliary ports
- Single Cisco IOS Universal image with technology sets activated by software licence
- Integrates voice, video, security, wireless and data services
- Energy-saving intelligent power management of modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 2 x 10/100/1000 Gigabit Ethernet (RJ-45)
- SFP-based ports: 0
- EHWIC slots: 4
- Double-wide EHWIC slots: 2 (each consumes two EHWIC slots)
- ISM slots: 1
- Onboard DSP (PVDM) slots: 2
- Service module slots: 0
- DRAM: 512 MB DDR2 ECC default, 2 GB maximum
- Flash memory: 256 MB CompactFlash default
- Cryptography: embedded hardware-based encryption and acceleration
- Cisco Unified SRST sessions: 35
- Cisco Unified CCME sessions: 35
- Feature set: IP Base (Cisco IOS Universal image)
- Power supply: internal, AC 120/230 V, 50/60 Hz
- Form factor: 1RU
- Dimensions (H x W x D): 4.5 x 43.8 x 43.9 cm (1.8 x 17.2 x 17.3 in)
- Weight: 6.08 kg (13.4 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Operating humidity: 10 to 85% non-condensing

FAQs

Q: Which licence tier does this SKU use?
A: This SKU runs the Cisco IOS Universal image with the IP Base technology set enabled. Security, Unified Communications and Data technology sets are activated by separate software licences.

Q: Which interface cards and modules does it work with?
A: It supports ISR G2 EHWIC, HWIC, WIC and VWIC interface cards, PVDM DSP modules and ISM modules. It has no service module slot, so SRE and SM modules are not supported.

Q: How much memory can be installed?
A: The router has 512 MB of DDR2 ECC DRAM as standard, expandable to a maximum of 2 GB.

Q: Can it provide PoE to integrated switch modules?
A: Yes, with the optional upgraded internal power supply, which adds 802.3af PoE and Cisco Inline Power for integrated switch modules.

Q: Does it support external RPS or DC power?
A: No. External RPS and DC power options apply to the 2911, 2921 and 2951, not the 2901.
