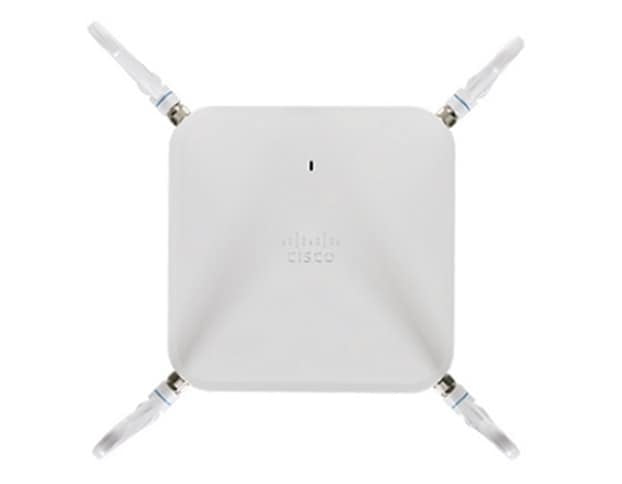

• Cisco CG418-E 4G LTE gateway with white wireless access point and four antennas
1 1

Cisco

Cisco CG418-E | Catalyst Cellular Gateway CAT18 LTE Advanced Pro

CG418-E

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst Cellular Gateway CG418-E is a CAT18 LTE Advanced Pro cellular gateway that connects to a Cisco host router over Ethernet. It provides primary or failover cellular WAN for branch sites, remote locations and SD-WAN deployments, and can be placed up to 100 m from the host router where cellular reception is strongest.

It delivers up to 1.2 Gbps download and 150 Mbps upload, and is backward compatible with LTE CAT 7, CAT6 and CAT 4. Connectivity includes one 2.5/10 multigigabit RJ45 port, an RJ45 console port, an RJ45 aux port, four SMA antenna ports for 4x4 MIMO and one SMA GPS port. Dual micro-SIMs run in active/standby, and external antennas are supported. Management is through the CLI, the local WebUI or Catalyst SD-WAN Manager, with zero-touch provisioning and IP passthrough mode using a single PDN.

It works with Cisco IOS XE based host platforms, including Cisco 1000 and 4000 Series Integrated Services Routers and Catalyst 8000 Series Edge Platforms. Power is supplied by AC, with PoE available via the CG-POE-AT model.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multigigabit LTE Advanced Pro connectivity for primary or failover cellular WAN
- Connects to virtually any Cisco host router via Ethernet, deployable up to 100 m from the host router
- Zero-touch provisioning and IP passthrough mode using a single PDN
- Dual SIMs for multiple connection options
- Console port for out-of-band management
- Multiple mounting options with AC and PoE power options
- Cisco Trust Anchor technologies including image signing, Secure Boot and Trust Anchor module
- Lets you upgrade cellular capability without a full router refresh

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cellular category: CAT18 LTE Advanced Pro, backward compatible with LTE CAT 7, CAT6 and CAT 4
- Download/upload bandwidth: 1.2 Gbps / 150 Mbps
- Ethernet port: 1x 2.5/10 multigigabit RJ45
- Console and aux: 1x RJ45 console port, 1x RJ45 aux port
- Antenna ports: 4x SMA (4x4 MIMO), 1x SMA GPS
- SIM card: Dual micro-SIMs (active/standby)
- Management: CLI, local WebUI, Catalyst SD-WAN Manager
- Supported platforms: Cisco IOS XE based platforms, including Cisco 1000 and 4000 Series ISR and Catalyst 8000 Series Edge Platforms
- Frequency bands: 4G LTE bands 1-5, 7, 8, 12-14, 17-20, 25, 26, 28-30, 32, 38-43, 46, 48, 66 and 71
- Power consumption: 15 W, AC (PoE optional)
- System memory: 1024 MB DRAM, 4096 MB eMMC
- Dimensions (H x W x D): 3.8 x 19.3 x 19.3 cm without antennas
- Operating temperature: 0 to 45 C
- Operating humidity: 10% to 85% RH (noncondensing)
- Operating altitude: 0 to 3000 m
- Storage temperature: -40 to 70 C
- MTBF: 680,990 hours
- Indicators: Tricolor RGB LED for gateway status

FAQs

Q: Does the CG418-E need a separate licence?
A: No separate licence is stated for the gateway itself. Management through Catalyst SD-WAN Manager requires a Catalyst SD-WAN deployment. The minimum gateway software image is Cisco SCG418-EIPS-173.

Q: How is the CG418-E powered?
A: It runs from AC power with a typical consumption of 15 W. PoE is available via the CG-POE-AT model, and an AIR-PWRINJ6 power injector can be used if the host router WAN port does not provide PoE.

Q: Which routers can it connect to?
A: It connects to Cisco IOS XE based host platforms, including Cisco 1000 and 4000 Series Integrated Services Routers and Catalyst 8000 Series Edge Platforms.

Q: How far from the router can the gateway be placed?
A: The gateway connects over Ethernet and can be deployed up to 100 m from the host router, which lets you position it where cellular signal is best.

Q: Does it support GPS?
A: Yes. It has an SMA GPS antenna port, which needs a compatible GPS antenna.
