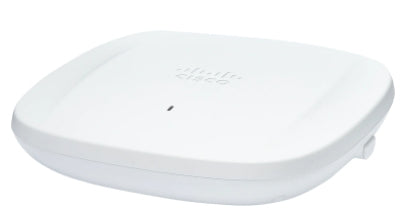

Cisco C9136I-Z | Catalyst 9136I Wi-Fi 6E Access Point, Internal, -Z

SKU:C9136I-Z-USED

2 in stock

$1,495.00 inc. GST

$1,359.09 ex. GST

Sale Sold out

Shipping calculated at checkout.

Condition New Used

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9136I is a high-end indoor Wi-Fi 6E access point with integrated internal antennas, operating across the 2.4, 5 and 6 GHz bands using a five-radio design. This -Z regulatory domain variant suits enterprise deployments managed by Catalyst 9800 series wireless controllers, with 2.5G and 5G Multigigabit Ethernet uplinks and Cisco UPOE or PoE+ power options. The 8x8 5 GHz radio, tri-band scanning radio and MU-MIMO with OFDMA support high-density environments that need extra capacity and reduced interference.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- MU-MIMO and OFDMA
- Dedicated tri-band scanning radio
- 6 GHz band support for higher throughput, more capacity and less interference
- Full interoperability with 802.11ax and 802.11ac clients
- Wi-Fi Alliance certifications: Wi-Fi 6 (R2), Wi-Fi 6E and WPA3
- Integrated security, resiliency and operational flexibility
- Bluetooth Low Energy support
- Managed by Catalyst 9800 Series wireless controllers (physical or virtual)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 6E (802.11ax) tri-band: 2.4 GHz, 5 GHz and 6 GHz
- Two 4x4 radios and one 8x8 radio
- Five radios: 4x4:4 6 GHz, 8x8:8 5 GHz, 4x4:4 2.4 GHz, tri-band scanning radio, 2.4 GHz IoT (802.15.4) radio
- Integrated internal antennas, omni-directional in azimuth
- 2x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)
- Management console port (RJ-45)
- USB 2.0 at 9W
- Power: 802.3bt Cisco UPOE, 802.3at PoE+, or AIR-PWRINJ7= injector; 802.3af for configuration staging with radios off only
- Bluetooth 5.0 LE
- Dimensions (excluding brackets): 25.1 x 25.1 x 5.6 cm
- Weight: 1.65 kg
- Operating temperature: 0 to 50°C (8x8 drops to 4x4 on 5 GHz above 40°C)
- Software: Cisco IOS XE 17.7.1 or later
- Regulatory domain: -Z

FAQs

Q: Which wireless controllers manage the Catalyst 9136I?
A: It is managed by Catalyst 9800 Series wireless controllers, either physical or virtual, and by Catalyst 9k switches running the Embedded Wireless Controller in SDA mode. It requires Cisco IOS XE 17.7.1 or later.

Q: How can the access point be powered?
A: It supports 802.3bt Cisco UPOE, 802.3at PoE+ or the AIR-PWRINJ7= power injector. 802.3af is suitable only for configuration staging with the radios off.

Q: What does the -Z suffix mean?
A: The -Z suffix denotes the regulatory domain of this SKU. It has internal antennas and is the variant to select when your deployment region matches this domain.

Q: Does the C9136I support the 6 GHz band?
A: Yes. It is a Wi-Fi 6E access point with a 4x4:4 6 GHz radio alongside an 8x8:8 5 GHz radio and a 4x4:4 2.4 GHz radio.

Q: What uplink speeds are available?
A: It has two RJ-45 Multigigabit Ethernet ports supporting 100M, 1G, 2.5G and 5G speeds.
