Cisco C9136I-ROW | Catalyst 9136I Wi-Fi 6E Access Point, ROW, Internal Antennas

Name: Cisco C9136I-ROW | Catalyst 9136I Wi-Fi 6E Access Point, ROW, Internal Antennas
Brand: Cisco
SKU: C9136I-ROW
Price: 5087.16 AUD
Availability: BackOrder

SKU:C9136I-ROW

Stock Status: Enquire

$5,087.16 inc. GST

$4,624.69 ex. GST

Sale Sold out

Shipping calculated at checkout.

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

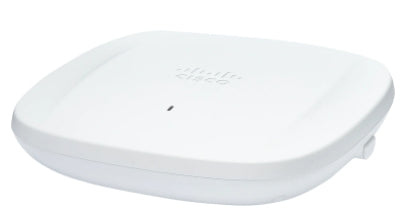

The Cisco Catalyst 9136I ROW is an indoor Wi-Fi 6E (802.11ax) tri-band access point covering the 2.4 GHz, 5 GHz and 6 GHz bands, with a maximum PHY data rate of about 10.2 Gbps. It combines two 4x4 radios and one 8x8 radio with internal antennas, and offers dual multigigabit Ethernet uplinks with redundant 802.3af/at/bt PoE-in. This variant is built for the Rest-of-World regulatory domain and suits high-density enterprise and campus deployments managed by a Catalyst 9800 Series wireless controller or a Catalyst 9000 switch running the Embedded Wireless Controller in SDA mode.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 6 GHz band support for higher throughput, greater capacity and less client interference
- Integrated BLE radio for IoT use cases such as location tracking and wayfinding
- Redundant PoE-in with Link Aggregation Group (LAG) support
- Recovery push button for partial or full configuration recovery
- Controller-based operation (CAPWAP) with integrated security, resiliency and operational flexibility
- Interoperates with 802.11ax and 802.11ac clients in mixed deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 6E (802.11ax) tri-band: 2.4 GHz, 5 GHz and 6 GHz
- Two 4x4 radios and one 8x8 radio
- Maximum PHY data rate of about 10.2 Gbps
- 2 x 100M/1G/2.5G/5G Multigigabit Ethernet (RJ-45)
- Management console port (RJ-45)
- USB 2.0 port at 9W
- Integrated Bluetooth 5.0 LE radio
- Internal antennas, indoor use
- Redundant dual 802.3af/at/bt PoE-in, about 46.5W required for full functionality
- 2 GB RAM and 1 GB flash
- Dimensions about 25.1 x 25.1 x 5.6 cm (9.9 x 9.9 x 2.2 in)
- Weight about 1.6 kg (3.5-3.64 lb)
- Requires Cisco IOS XE 17.7.1 or later
- Rest-of-World (ROW) regulatory domain

FAQs

Q: Which wireless controllers does the C9136I-ROW work with?
A: It is supported by Catalyst 9800 Series controllers (physical or virtual) and by Catalyst 9000 series switches running the Embedded Wireless Controller in SDA mode.

Q: Does this access point support the 6 GHz band?
A: Yes. It is a Wi-Fi 6E tri-band access point operating on 2.4 GHz, 5 GHz and 6 GHz, with two 4x4 radios and one 8x8 radio.

Q: What PoE power does the C9136I-ROW need?
A: It supports redundant dual 802.3af/at/bt PoE-in. About 46.5W is required for full functionality, so a UPOE-class or 802.3bt power source is recommended.

Q: What does the ROW suffix mean?
A: ROW denotes the Rest-of-World regulatory domain variant. Confirm that this domain is permitted in your country before deployment.

Q: Does it have internal or external antennas?
A: The C9136I uses internal antennas and is designed for indoor deployments.
