Cisco

Cisco C9130AXE-Z | Wi‑Fi 6 (802.11ax), 2.4 GHz + 5 GHz, External Antennas, up to 5.38 Gbps

SKU:C9130AXE-Z

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Enterprise Wi‑Fi 6 access point with external antenna connectors for precision RF designs in warehouses, arenas, or long corridors. Delivers OFDMA/MU‑MIMO efficiency and a multigig uplink to remove wired bottlenecks. Pair with your choice of directional or omni antennas to match the site survey.

Features

- External antenna flexibility for precision RF coverage
- Wi‑Fi 6 performance with OFDMA and MU‑MIMO
- Dual 5 GHz capability via Flexible Radio Assignment
- Multigig uplink up to 5G for high throughput
- Enterprise security with WPA3 and 802.1X
- Built‑in BLE/802.15.4 for IoT integrations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Who should choose the external‑antenna model?
A: Deploy where directional coverage or specialized patterns are needed, such as stadium seating, narrow aisles, or long hallways.

Q: Do I need to buy antennas separately?
A: Yes. External antennas are required and must match the regulatory domain and connector type.

Q: What controller options are supported?
A: It can join Catalyst wireless controllers. If you need on‑AP management, select an Embedded Wireless Controller (EWC) variant.

Q: What PoE class is recommended?
A: IEEE 802.3at PoE+ to enable full radio performance and features.

Q: Does it support dual 5 GHz operation?
A: Yes, with Flexible Radio Assignment the AP can operate two 5 GHz radios for higher density.

Technical Specifications

- Model variant: External antenna (E)
- Wireless standard: 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
- Radios/streams: 2.4 GHz 4x4:4; 5 GHz 4x4:4 (up to 8x8:8 with FRA dual‑5 GHz)
- Max aggregate PHY rate: up to 5.38 Gbps
- Bands: Concurrent 2.4 GHz and 5 GHz
- Efficiency: OFDMA, MU‑MIMO, BSS Coloring, Target Wake Time

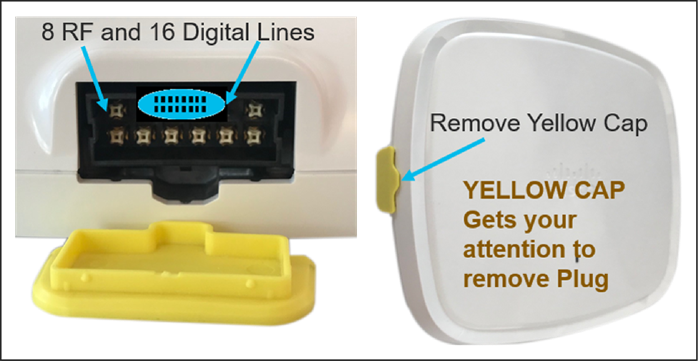

- Antenna interface: External RP‑TNC connectors (antennas sold separately)
- Uplink: 1x 100/1000/2.5G/5G mGig (RJ45, 802.3bz)
- PoE power: IEEE 802.3at PoE+ recommended (802.3af limited)
- Controller modes: Supports Catalyst wireless controllers; EWC variants available separately
- Security: WPA3/WPA2‑Enterprise, 802.1X
- IoT/aux radios: Integrated BLE and 802.15.4
- Mounting: Ceiling/wall compatible
