Cisco

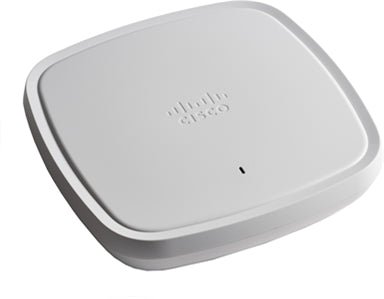

Cisco C9130AXE-EWC-Z | Wi‑Fi 6 (802.11ax), 2.4 GHz + 5 GHz, External Antennas, Embedded Wireless Controller (EWC), up to 5.38 Gbps

C9130AXE-EWC-Z

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density enterprise Wi‑Fi 6 access point with external antenna flexibility and an embedded wireless controller for on‑AP management. Supports dual concurrent 2.4/5 GHz, OFDMA, MU‑MIMO, and multigig uplink for demanding campuses and venues. Ideal where directional or specialty antennas are required.

Features

- Embedded Wireless Controller for simplified on‑device management
- Wi‑Fi 6 performance with OFDMA, MU‑MIMO, and BSS Coloring
- Flexible Radio Assignment enabling dual 5 GHz high‑density deployments
- Multigig (up to 5G) uplink to prevent wired bottlenecks
- External antenna flexibility for challenging RF environments
- Enterprise security with WPA3 and 802.1X
- Integrated BLE/802.15.4 for IoT use cases

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

FAQs

Technical Specifications

FAQs

Q: What is the difference between the E (external) and I (internal) variants?
A: E models use external antennas for tailored coverage patterns; I models have integrated omnidirectional antennas for general indoor coverage.

Q: Does this unit include an embedded controller?
A: Yes. The EWC variant includes an Embedded Wireless Controller for managing a small to medium WLAN without a separate hardware controller.

Q: What PoE class is required?
A: IEEE 802.3at PoE+ is recommended to enable full radio performance and features.

Q: What wired uplink speeds are supported?
A: The multigigabit Ethernet uplink supports 1G/2.5G/5G over RJ45 (802.3bz).

Q: Are antennas included?
A: External antennas are required and sold separately for the E model unless purchased as a specific antenna bundle.

Technical Specifications

- Model variant: External antenna (E)
- Wireless standard: 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
- Radios/streams: 2.4 GHz 4x4:4; 5 GHz 4x4:4 (up to 8x8:8 with Flexible Radio Assignment in dual‑5 GHz mode)
- Max aggregate PHY rate: up to 5.38 Gbps
- Bands: Concurrent 2.4 GHz and 5 GHz
- Key features: OFDMA, MU‑MIMO, BSS Coloring, Target Wake Time
- Antenna interface: External RP‑TNC connectors (antennas required, not included)
- Uplink: 1x 100/1000/2.5G/5G mGig (RJ45, 802.3bz)
- PoE power: IEEE 802.3at PoE+ recommended for full feature set (802.3af limited)
- Controller modes: Embedded Wireless Controller (EWC) onboard or join external Catalyst controllers
- Security: WPA3/WPA2‑Enterprise, 802.1X
- IoT/aux radios: Integrated Bluetooth Low Energy (BLE) and 802.15.4
- Mounting: Ceiling/wall mount capable
