Cisco C9120AXI-EWC-Z | Catalyst 9120AXI Wi-Fi 6 AP, Embedded Controller, Z

Name: Cisco C9120AXI-EWC-Z | Catalyst 9120AXI Wi-Fi 6 AP, Embedded Controller, Z
Brand: Cisco
SKU: C9120AXI-EWC-Z
Price: 2765.69 AUD
Availability: BackOrder

SKU:C9120AXI-EWC-Z

Stock Status: Enquire

$2,765.69 inc. GST

$2,514.26 ex. GST

Sale Sold out

Shipping calculated at checkout.

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

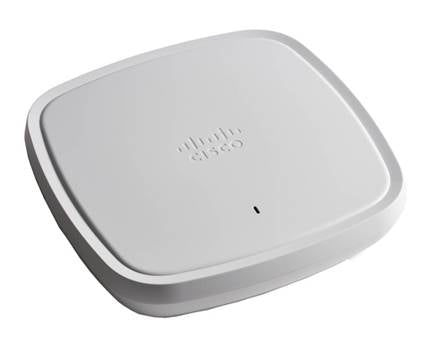

The Catalyst 9120AXI is an indoor Wi-Fi 6 (802.11ax) access point with four internal dual-band antennas, 4x4:4 MIMO and a 2.5G Multigigabit Ethernet uplink. This SKU is loaded with the Embedded Wireless Controller image, so the controller runs on the access point itself and no separate controller appliance is required, supporting up to 100 access points and 2000 clients. It is built for the Z regulatory domain and suits small to mid-sized campus, office and branch wireless deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Embedded Wireless Controller runs on the access point with no added appliance footprint
- Uses Cisco Catalyst 9800 Series code, easing migration as the network grows
- Uplink and downlink OFDMA and MU-MIMO
- Target Wake Time for power savings
- Flexible Radio Assignment, with dual 5 GHz mode for up to 5.2 Gbps over the air
- Cisco CleanAir with 160 MHz channel support
- Multigigabit Ethernet with 2.5 Gbps uplink on Cat 5e cabling
- Integrated BLE 5 for IoT use cases such as location tracking and wayfinding
- Management via Cisco DNA Center, integrated WebUI and mobile app
- Smart Licensing enabled

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 6 (IEEE 802.11ax), dual-band 2.4 GHz and 5 GHz
- 4x4:4 MIMO with four spatial streams
- Four radios: 4x4 XOR 2.4/5 GHz radio, single-band 4x4 5 GHz radio, 2.4 GHz IoT/BLE radio and an auxiliary radio
- Four dual-band internal antennas
- 1 x 100/1000/2500 Multigigabit Ethernet (RJ-45), IEEE 802.3bz
- Management console port (RJ-45)
- USB 2.0 at 3.75W
- Integrated Bluetooth Low Energy 5 radio
- Dimensions (excluding brackets): 21.6 x 21.6 x 4.3 cm
- Weight: 1.3 kg (2.87 lb)
- 2048 MB DRAM, 1024 MB flash
- Operating temperature: -20 to 50 °C, humidity 10% to 90% non-condensing
- Embedded Wireless Controller: up to 100 access points, 2000 clients and 16 WLANs
- Embedded Wireless Controller requires Cisco IOS XE 16.12.2 or later
- Z regulatory domain

FAQs

Q: Do I need a separate wireless controller with this access point?
A: No. This SKU ships with the Embedded Wireless Controller image, so the controller function runs on the access point itself. It supports up to 100 access points and 2000 clients.

Q: What uplink does the C9120AXI-EWC-Z provide?
A: It has one 100/1000/2500 Multigigabit Ethernet RJ-45 port (IEEE 802.3bz), allowing a 2.5 Gbps uplink over Cat 5e cabling.

Q: What does the Z in the SKU mean?
A: Z refers to the regulatory domain this access point is built for. It is a fixed hardware setting, so confirm the domain suits your deployment region before ordering.

Q: Does it have internal or external antennas?
A: It uses four dual-band internal antennas, so no external antennas are needed. This is what the I in 9120AXI denotes.

Q: Which software version does the Embedded Wireless Controller need?
A: The Embedded Wireless Controller requires Cisco IOS XE 16.12.2 or later. It uses Catalyst 9800 Series code and can be managed through the WebUI, the mobile app or Cisco DNA Center.
