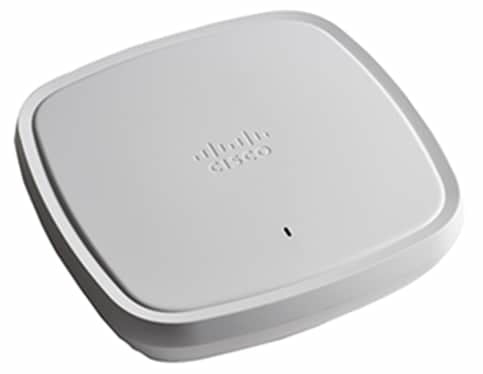

Cisco C9115AXI-EWC-Z | Catalyst 9115AXI Wi-Fi 6 Access Point, EWC, Z Domain

Name: Cisco C9115AXI-EWC-Z | Catalyst 9115AXI Wi-Fi 6 Access Point, EWC, Z Domain
Brand: Cisco
SKU: C9115AXI-EWC-Z
Price: 1727.13 AUD
Availability: BackOrder

SKU:C9115AXI-EWC-Z

Stock Status: Enquire

$1,727.13 inc. GST

$1,570.12 ex. GST

Sale Sold out

Shipping calculated at checkout.

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

Indoor Wi-Fi 6 (802.11ax) dual-band access point with four integrated internal antennas and a 1x 2.5G Multigigabit RJ45 uplink. This SKU ships with the Embedded Wireless Controller, so a small wireless network can run without a separate controller appliance, supporting up to 100 access points and 2000 clients. Built for the Z regulatory domain and powered by 802.3at PoE+ for full 4x4 operation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Embedded Wireless Controller runs on the access point itself, so no physical controller appliance is needed
- OFDMA (uplink and downlink), MU-MIMO, TWT and BSS colouring
- Multigigabit Ethernet works over existing Cat5e/Cat6 cabling
- FlexConnect deployment mode
- Managed through Cisco DNA Center, the integrated WebUI, a mobile app or third-party open APIs
- Smart Licence enabled and runs Cisco IOS XE
- Can also operate as a standard controller-based (lightweight) access point

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 6 (802.11ax), dual-band 2.4 GHz and 5 GHz, 4x4 MU-MIMO with four spatial streams
- PHY data rates up to 5.38 Gbps
- Three radios: 2.4 GHz (4x4), 5 GHz (4x4) and BLE
- Four integrated internal dual-band antennas: 3 dBi peak gain at 2.4 GHz, 4 dBi at 5 GHz
- 1x 100/1000/2500 Multigigabit Ethernet (RJ-45), IEEE 802.3bz
- Management console port (RJ-45) and USB 2.0 port
- PoE: 802.3at (PoE+) for full 4x4 operation, approximately 20.4 W
- Memory: 2048 MB DRAM, 1024 MB flash
- Dimensions (without brackets): 20.3 x 20.3 x 3.8 cm
- Embedded Wireless Controller: up to 100 access points, 2000 clients and 16 WLANs
- Minimum software for EWC: Cisco IOS XE 16.12.2 or later
- Z regulatory domain: 2.412-2.462 GHz, 5.180-5.320 GHz, 5.500-5.700 GHz (excluding 5.600-5.640 GHz), 5.745-5.825 GHz

FAQs

Q: Do I need a separate wireless controller for this access point?
A: No. This SKU includes the Embedded Wireless Controller, which runs on the access point itself and manages up to 100 access points and 2000 clients.

Q: What PoE standard does it require?
A: 802.3at (PoE+) is needed for full 4x4 operation. Under 802.3af the access point runs with reduced capability, at 2x2 and a 1G link.

Q: What uplink does the C9115AXI-EWC-Z provide?
A: It has one 100/1000/2500 Multigigabit Ethernet RJ-45 port (IEEE 802.3bz), which runs over existing Cat5e or Cat6 cabling.

Q: Does it use internal or external antennas?
A: It uses four integrated internal dual-band antennas, with 3 dBi peak gain at 2.4 GHz and 4 dBi at 5 GHz.

Q: Can it be used as a normal controller-based access point?
A: Yes. It can also operate as a standard lightweight access point under a controller, as well as in FlexConnect mode.
