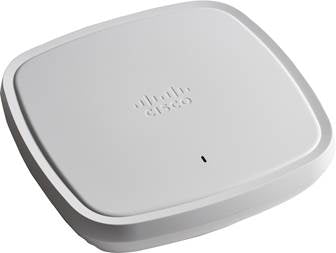

Cisco C9115AXE-Z | Catalyst 9115AX Wi-Fi 6 Access Point, External Antennas, Z

SKU:C9115AXE-Z

5 in stock

$1,578.18 inc. GST

$1,434.71 ex. GST

Sale Sold out

Shipping calculated at checkout.

Condition New Used

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

Indoor Wi-Fi 6 (802.11ax) enterprise access point from the Catalyst 9100 family, with 4x4 MIMO on both the 2.4 GHz and 5 GHz radios and a 2.5G multigigabit RJ45 uplink. This external antenna variant is built for challenging environments, with antennas sold separately, and is configured for the Z regulatory domain. It supports 802.3at PoE+ power, an optional embedded wireless controller and management through Catalyst 9800 Series controllers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- OFDMA and MU-MIMO
- Multigigabit support: 2.5 Gbps uplink over Cat 5e cabling
- Available with optional embedded wireless controller (EWC) on the access point
- Runs Catalyst 9800 Series code
- Supports Cisco DNA Spaces, Identity Services Engine and DNA Analytics and Assurance
- Full interoperability with 802.11ax and 802.11ac clients in mixed deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 6 (802.11ax) with 802.11a/b/g/n/ac Wave 2 support
- Three radios: 2.4 GHz (4x4), 5 GHz (4x4) and BLE 5.0
- 4x4 MIMO with four spatial streams on both 2.4 GHz and 5 GHz
- 1 x 100/1000/2500 Multigigabit Ethernet (RJ-45) uplink, IEEE 802.3bz
- 1 x RJ-45 console port, 1 x USB 2.0 port
- Power: 802.3at PoE+, or Cisco UPOE/UPOE+ (802.3bt)
- External antennas, sold separately, certified for gains up to 6 dBi on 2.4 GHz and 5 GHz
- Z regulatory domain
- 2048 MB DRAM, 1024 MB flash
- Above 40°C ambient, the AP shifts to 2x2 on both radios, the uplink drops to 1GbE and USB is disabled
- Supported controllers: Catalyst 9800 Series, Cisco 3500/5520/8540 Series and Virtual Wireless Controller
- Software: Cisco IOS XE 16.11 or later, or Unified Wireless Network Software 8.9 or later

FAQs

Q: Are antennas included with the C9115AXE-Z?
A: No. This model uses external antennas, which are sold separately. It is certified for external antenna gains up to 6 dBi on both the 2.4 GHz and 5 GHz bands.

Q: How is the C9115AXE-Z powered?
A: It can be powered by 802.3at PoE+, or by Cisco UPOE or UPOE+ (802.3bt). Note that above 40°C ambient the access point shifts to 2x2 operation on both radios, the uplink drops to 1GbE and USB is disabled.

Q: Which wireless controllers does it work with?
A: It is supported by Catalyst 9800 Series controllers, Cisco 3500, 5520 and 8540 Series controllers and the Virtual Wireless Controller. It also supports an optional embedded wireless controller running on the access point.

Q: What uplink does it provide?
A: It has one 100/1000/2500 Multigigabit Ethernet RJ45 port (IEEE 802.3bz), allowing a 2.5 Gbps uplink over Cat 5e cabling.

Q: What does the Z suffix mean?
A: The Z suffix indicates the Z regulatory domain variant of the C9115AXE access point. Choose the domain that matches the country of deployment.
