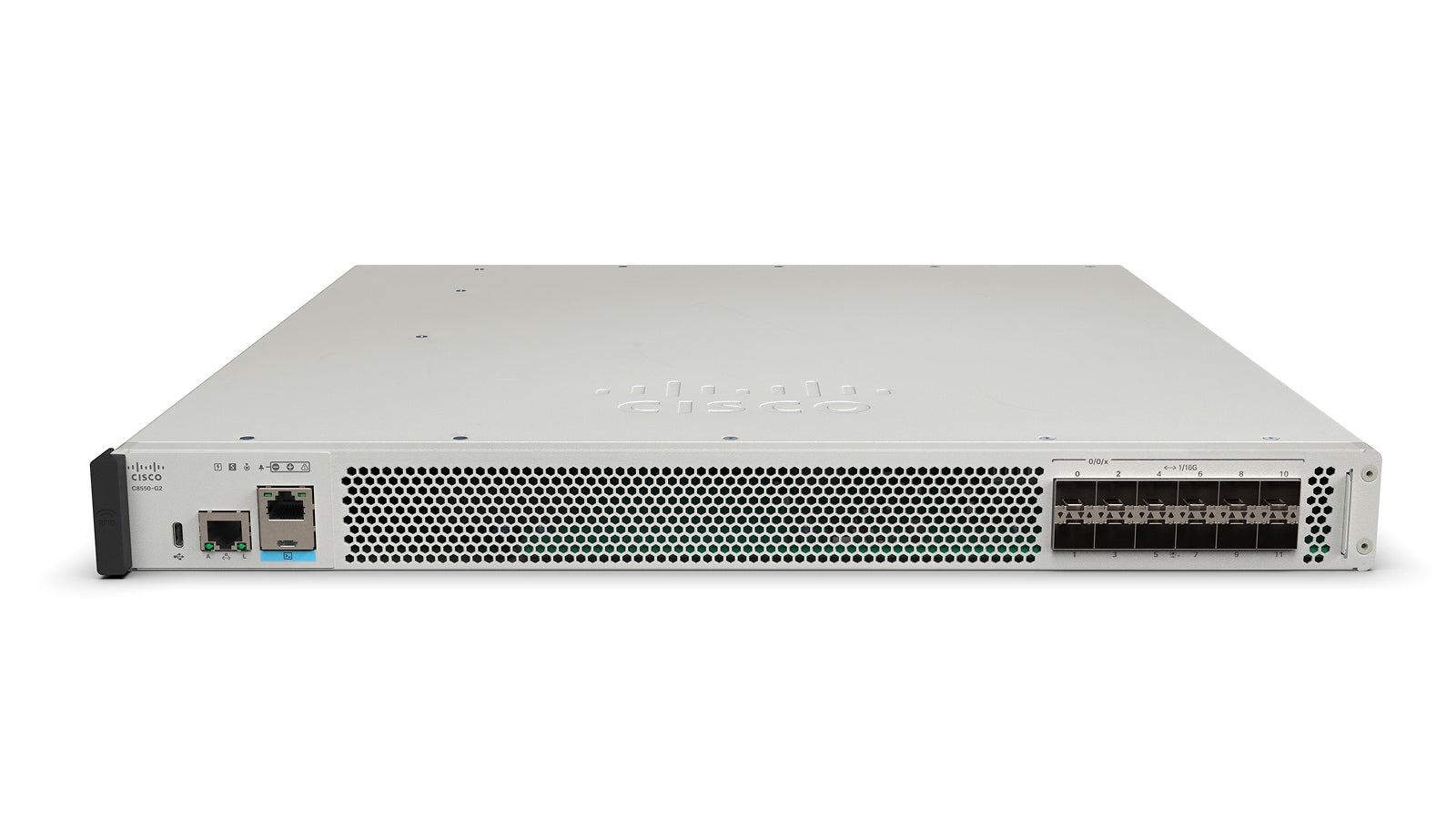

• Cisco C8570-G2 silver server rack with black mesh panel and blue ports
1 1

Cisco

Cisco C8570-G2 | 8500 12x 10G SFP+ Router, 2x 40G, 2x 100G, 190Gbps

C8570-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8500 Series C8570-G2 is a 1RU fixed-form-factor secure router built on the third-generation Quantum Flow Processor (QFP) ASIC. It is aimed at data centre and colocation WAN aggregation and interconnect, where large data flows need to be routed securely between sites, data centres and clouds.

This model provides 12x 1/10GE SFP+ ports, 2x 40GE QSFP+ ports and 2x 40/100GE QSFP28 ports, with up to 240GE of ports enabled simultaneously. Forwarding throughput reaches up to 190 Gbps at 512B packets, with up to 63 Gbps of IPsec throughput and up to 21 Gbps of SD-WAN throughput. It ships with 32 GB DRAM as standard (64 GB option) and 480 GB of storage, and is powered by a 750 W AC or 950 W DC supply. Compared with the C8550-G2, which offers 12x 10GE and 115 Gbps forwarding, the C8570-G2 adds the 40G and 100G ports and a higher forwarding ceiling.

Minimum software is IOS XE 17.15.4, with Catalyst SD-WAN Manager 20.15.4 for SD-WAN deployments. It can be managed through Catalyst SD-WAN Manager, Catalyst Center, or the Meraki dashboard for WAN only.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Third-generation Quantum Flow Processor (QFP) ASIC for hardware-accelerated cryptography and deep packet inspection
- Platform-level security with post-quantum cryptography (PQC) readiness
- Routing and SD-WAN support, managed on-premises, via infrastructure-as-code, or from the cloud
- Compact 1 RU design for data centre deployments, with front-panel label trays
- ENERGY STAR certified, with 80 PLUS Platinum or Titanium certified power supplies
- Bezel-free design with powder-coat finish

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- WAN ports: 12x 1/10GE SFP+, 2x 40GE QSFP+, 2x 40/100GE QSFP28
- Maximum ports enabled simultaneously: 240GE
- WAN MAC: supported on all built-in ports
- Management: 1x RJ-45 OOB management port, 1x RJ-45 and 1x Micro-USB console
- Forwarding throughput (512B): up to 190 Gbps
- IPsec throughput (512B): up to 63 Gbps
- SD-WAN throughput (512B, IPsec + QoS + DPI + Flexible NetFlow): up to 21 Gbps
- DRAM: 32 GB default, 64 GB option
- Storage: 480 GB
- Power supply: 750 W AC or 950 W DC
- IPv4/IPv6 routes: 8M
- IPsec tunnels: 10,000
- IPv4 ACLs: 4K
- IPv4 ACEs: 380K
- NAT sessions: 16M
- VRFs: 8K
- Dimensions (H x W x D): 44 x 445 x 469 mm
- Form factor: 1 RU
- Chassis weight with 2x AC power supplies and fan tray: 21 lbs
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 65 C
- Relative humidity: operating 10 to 85%, non-operating and storage 5 to 95%
- Altitude: -152 to 3048 m
- NEBS criteria levels: GR-1089 and GR-63
- Minimum software: IOS XE 17.15.4, Catalyst SD-WAN Manager 20.15.4

FAQs

Q: What is the difference between the C8570-G2 and the C8550-G2?
A: The C8570-G2 provides 12x 10GE SFP+ plus 2x 40GE and 2x 100GE ports with up to 190 Gbps forwarding. The C8550-G2 offers 12x 10GE ports with 115 Gbps forwarding.

Q: What can I fit in the port bays?
A: Bay 0 takes 8x 1/10G SFP+. Bay 1 takes 1x 40/100G QSFP28 plus 4x 1/10G SFP+. Bay 2 takes 1x 40/100G QSFP28 plus 2x 40G QSFP+.

Q: Which software release does it require?
A: It requires a minimum of IOS XE 17.15.4, and Catalyst SD-WAN Manager 20.15.4 for SD-WAN deployments.

Q: What power supply options are available?
A: It uses a 750 W AC or 950 W DC power supply. The power supplies are 80 PLUS Platinum or Titanium certified.

Q: Can I run all the high-speed ports at once?
A: Up to 240GE of ports can be enabled simultaneously across the built-in 10G, 40G and 100G ports.
