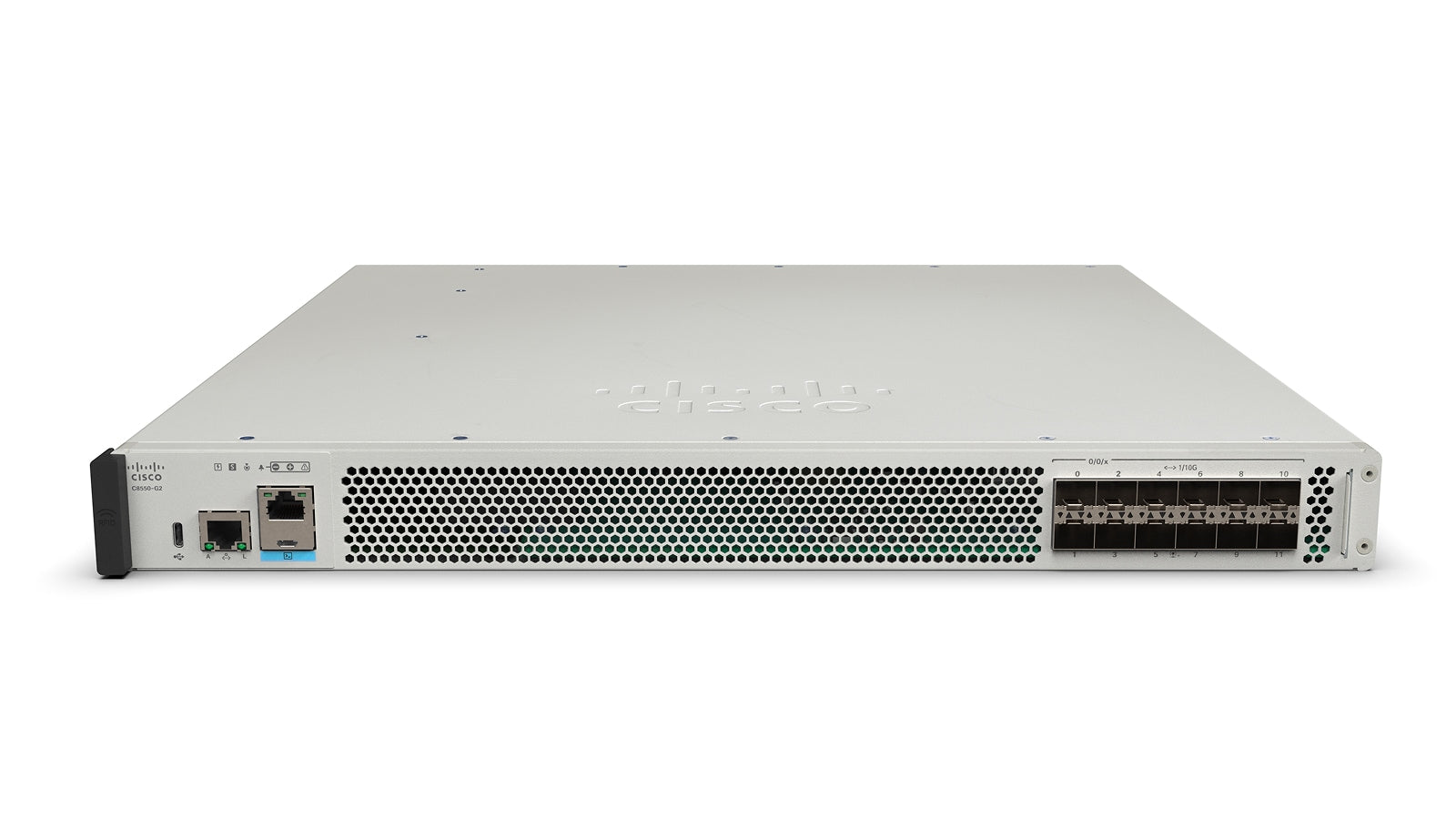

• Cisco C8550-G2 SD-WAN router with silver rack and blue ports
1 1

Cisco

Cisco C8550-G2 | 8500 12x 10G SFP+ Secure Router, 115 Gbps

C8550-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8500 Series C8550-G2 is a 1 RU fixed-form-factor secure router built on the third-generation Quantum Flow Processor (QFP) ASIC. It is aimed at data centre and colocation WAN aggregation, secure interconnects between data centres and clouds, and edge deployments that need routing, security and SD-WAN capability in one compact chassis.

The C8550-G2 provides 12 x 1/10GE SFP+ WAN ports, with up to 115 Gbps forwarding throughput, up to 48 Gbps IPsec throughput and up to 19 Gbps SD-WAN throughput (all at 512B). It scales to 8M IPv4/IPv6 routes, 10,000 IPsec tunnels, 16M NAT sessions and 8K VRFs. Memory is 32 GB DRAM by default with a 64 GB option, plus 480 GB of default storage. Power options are 750 W AC or 950 W DC. This is the 12-port 1/10GE variant, whereas the C8570-G2 uses 40/100GE ports for up to 190 Gbps forwarding.

The router runs Cisco IOS XE 17.15.4 or later and can be managed on-premises, through infrastructure-as-code, or with Cisco Catalyst SD-WAN Manager 20.15.4 or later. The 12 built-in ports accept SFP and SFP+ optics, and a USB 3.0 Type-C storage port is on the front panel.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dedicated third-generation QFP ASIC for fast cryptography and deep packet inspection
- Hardware acceleration for high throughput and scale
- Compact 1 RU form factor suited to data centre deployments
- Post-quantum cryptography readiness with quantum-resistant encryption
- Platform-level security combined with routing and SD-WAN performance
- On-premises, infrastructure-as-code or cloud management options
- 80 PLUS Platinum or Titanium certified power supply units available
- Front-panel accessible label trays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- WAN ports: 12x 1/10GE SFP+
- WAN MACsec: Supported on all built-in ports
- Management: 1x RJ-45 OOB management port
- Console: 1x RJ-45 and 1x Micro-USB
- Forwarding throughput (512B): up to 115 Gbps
- IPsec throughput (512B): up to 48 Gbps
- SD-WAN throughput (512B, IPsec + QoS + DPI + Flexible NetFlow): up to 19 Gbps
- IPv4/IPv6 routes: 8M
- IPsec tunnels: 10,000
- IPv4 ACLs: 4K
- IPv4 ACEs: 380K
- NAT sessions: 16M
- VRFs: 8K
- DRAM: 32 GB default, 64 GB option
- Storage: 480 GB default
- Power supply: 750 W AC or 950 W DC
- Form factor: 1 RU fixed
- Dimensions (H x W x D): 44 x 445 x 469 mm
- Chassis weight with 2x AC power supplies and fan tray: approx. 9.3 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 65 C
- Operating humidity: 10 to 85%
- Altitude: -152 to 3048 m
- Minimum software: IOS XE 17.15.4 / Catalyst SD-WAN Manager 20.15.4
- NEBS: GR-1089 and GR-63 criteria levels

FAQs

Q: What software does the C8550-G2 run?
A: It runs Cisco IOS XE, with a minimum release of 17.15.4, and can be managed by Cisco Catalyst SD-WAN Manager 20.15.4 or later.

Q: What power supply options are available?
A: The router supports 750 W AC or 950 W DC power supplies. The units are available as 80 PLUS Platinum (up to 94% efficiency at 50% load) or Titanium (up to 96%) rated.

Q: Which optics fit the built-in ports?
A: The 12 built-in WAN ports accept SFP and SFP+ optics at 1G and 10G speeds. MACsec is supported on all of them.

Q: How does the C8550-G2 differ from the C8570-G2?
A: The C8550-G2 has 12 x 1/10GE SFP+ ports and up to 115 Gbps forwarding. The C8570-G2 uses 40/100GE ports and reaches up to 190 Gbps forwarding.

Q: How much memory and storage does it have?
A: It ships with 32 GB DRAM by default, with a 64 GB option, and 480 GB of default storage.
