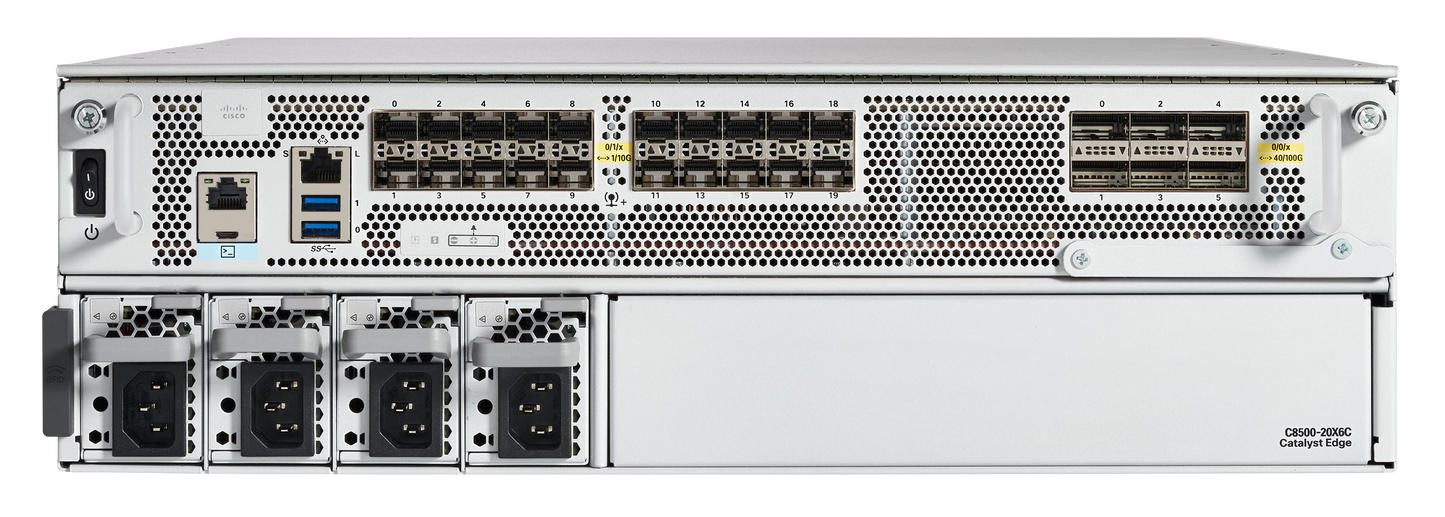

• Cisco C8500-20X6C silver server rack with 20x 1/10G SFP+ ports and 6x 100G QSFP28 slots
1 1

Cisco

Cisco C8500-20X6C | Catalyst 8500 Router, 20x 10G SFP+, 6x 100G QSFP28

C8500-20X6C

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8500 is a 3RU edge router in the Catalyst 8500 Series Edge Platforms range, running Cisco IOS XE. It is built for WAN edge, SD-WAN headend or aggregation, internet or data-centre edge, and high-throughput secure connectivity for large branch, campus and colocation sites.

This C8500-20X6C model provides 20 x 1/10GE SFP+ ports and 6 x 40/100GE QSFP+/QSFP28 ports, and all of them can be enabled at the same time. It is fitted with the maximum 64 GB of DRAM and a 480 GB SSD as standard. Up to four power supply slots are available with at least two populated, and high-efficiency power supplies provide hardware redundancy by default. AC (PWR-CH1-1100WAC) and DC (PWR-CH1-950WDC) power supply options are available.

The platform supports both SD-WAN and autonomous modes, with a programmable software architecture, API support, hardware-anchored secure boot and software redundancy through two IOS processes on a single device. It works with 1/10GE SFP/SFP+ optics and 40/100GE QSFP+/QSFP28 optics, and requires IOS XE 17.10.1 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- All 20 x 1/10GE and 6 x 40/100GE ports can run at the same time
- Runs Cisco IOS XE with a fully programmable software architecture and API support
- Supports SD-WAN and autonomous (non SD-WAN) modes
- Hardware-anchored secure boot and integrated security
- Hardware redundancy through high-efficiency power supplies fitted by default
- Software redundancy with 2 Cisco IOS processes on a single device
- Maximum DRAM and SSD fitted as standard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Platform: C8500-20X6C
- Port configuration: 20-port 1/10GE SFP+, 6-port 40/100GE QSFP+/QSFP28
- Port enablement: all ports can be enabled simultaneously
- Form factor: 3RU
- DRAM: 64 GB (default, maximum)
- Storage: 480 GB SSD (default, maximum)
- Power supply slots: 4 maximum, minimum 2 populated
- Power supply options: PWR-CH1-1100WAC, PWR-CH1-950WDC
- Software: Cisco IOS XE
- Software redundancy: 2 IOS processes on a single device (IOS XE routing mode)
- Minimum software: IOS XE 17.10.1

FAQs

Q: Can all the ports be used at the same time?
A: Yes. All 20 x 1/10GE ports and all 6 x 40/100GE ports on the C8500-20X6C can be enabled simultaneously.

Q: Does it need a Cisco DNA subscription?
A: Catalyst 8500 family routers use Cisco DNA subscription licensing (L-DNA-C8500). Check the Catalyst 8500 Ordering Guide to select the tier that suits your deployment.

Q: What power supplies does it use?
A: It has up to four power supply slots with at least two populated. AC (PWR-CH1-1100WAC) and DC (PWR-CH1-950WDC) options are available.

Q: What optics does it work with?
A: The 1/10GE ports take SFP/SFP+ optics and the 40/100GE ports take QSFP+/QSFP28 optics.

Q: Which software does it require?
A: It runs Cisco IOS XE and requires IOS XE 17.10.1 or later.
