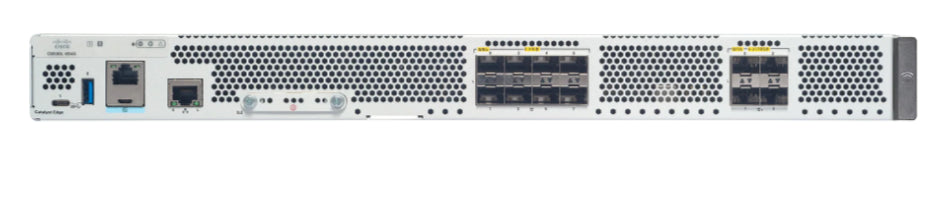

• Cisco C8500-12X 12x 1/10G SFP+ edge router with ethernet ports
1 1

Cisco

Cisco C8500-12X | Catalyst 8500 Router, 12x 1/10G SFP+, 1RU

C8500-12X

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8500 C8500-12X is a 1RU cloud edge router built for WAN aggregation and headend sites, SD-WAN hub deployments, and cloud or data-centre edge routing. It is built around a third-generation Quantum Flow Processor with inline hardware-accelerated IPsec and MACsec encryption, and runs Cisco IOS XE in either autonomous mode or Catalyst SD-WAN controller mode.

This variant provides twelve 1/10GE SFP+ ports and no QSFP ports. In autonomous mode it delivers up to 118 Gbps of IPv4 forwarding throughput and up to 84 Gbps of IPsec throughput at 1400 byte packets, and up to 51 Gbps of SD-WAN IPsec throughput. It ships with 16 GB DRAM, 32 GB eUSB storage and dual redundant hot-swap power supplies, in either 750W AC or 950W DC form. Scale figures include 8000 SD-WAN overlay tunnels, 4000 IPsec SVTI tunnels, 12M NAT sessions, 6M firewall sessions and 4M IPv4 routes.

Memory can be expanded with MEM-C8500-32GB or MEM-C8500-64GB, and storage with SSD-M2SATA-480G. Rack kits C8500-ACCKIT-19, C8500-ACCKIT-23 and C8500-4PT-KIT are available, along with a NEBS level 3 filter and spare fan tray. It requires Cisco IOS XE 17.3.2 or later and uses a Cisco DNA Advantage software subscription under Smart Licensing.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Third-generation Quantum Flow Processor with inline hardware-accelerated IPsec and MACsec encryption
- Runs Cisco IOS XE in autonomous mode or Catalyst SD-WAN controller mode from a single integrated image
- Intel x86 multicore control processor
- Dual power supplies for power redundancy
- Software redundancy with two IOS XE processes on a single device in IOS XE routing mode
- Hardware-anchored Secure Boot and SUDI support for Plug and Play
- Integration with Cisco ThousandEyes for internet and cloud visibility
- Programmable software architecture with API support for zero-touch automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Platform: C8500-12X, Catalyst 8500 Series 12-port SFP+
- Ports: 12x 1/10GE SFP+
- Maximum 40GE ports: 0
- Maximum 100GE ports: 0
- Form factor: 1RU
- Forwarding ASIC: 3rd-generation Quantum Flow Processor (QFP)
- DRAM: 16 GB default, upgradable to 32 or 64 GB
- Storage: 32 GB eUSB default, optional 480 GB M.2 SSD
- IPv4 forwarding throughput (1400 B, autonomous mode): up to 118 Gbps
- IPsec throughput (1400 B, autonomous mode): up to 84 Gbps
- SD-WAN IPsec throughput (1400 B): up to 51 Gbps
- SD-WAN IPsec throughput (IMIX): up to 22.6 Gbps
- SD-WAN overlay tunnels: 8000
- IPsec SVTI tunnels: 4000
- NAT sessions: 12M
- Firewall sessions: 6M
- IPv4 routes: 4M with default 16 GB
- VRFs: 8000
- Power supplies: dual redundant, 750W AC or 950W DC
- AC input: 85 to 264 VAC
- DC input: -40 to -72 VDC
- Heat dissipation: 682.4 BTU/hr typical, 1023.6 BTU/hr maximum
- Dimensions (H x W x D): 1.73 x 17.50 x 18.46 in
- Operating temperature: 0 to 40 C
- Minimum software: Cisco IOS XE 17.3.2

FAQs

Q: What licensing does the C8500-12X need?
A: Catalyst 8500 Series Edge Platforms initially require a Cisco DNA Advantage software subscription, orderable as L-DNA-C8500. Licensing uses Cisco Smart Licensing and requires a Smart Account.

Q: What power supply options are available?
A: It uses dual redundant hot-swap power supplies. The AC option is PWR-CH1-750WACR (750W, 85 to 264 VAC) and the DC option is PWR-CH1-950WDCR (950W, -40 to -72 VDC).

Q: Can the memory and storage be upgraded?
A: Yes. DRAM can be upgraded with MEM-C8500-32GB or MEM-C8500-64GB from the default 16 GB, and an optional 480 GB M.2 SSD is available as SSD-M2SATA-480G.

Q: Does it have QSFP ports?
A: No. The C8500-12X provides twelve 1/10GE SFP+ ports only, with no 40GE or 100GE ports.

Q: Which software release does it require?
A: It requires Cisco IOS XE 17.3.2 or later. IOS XE 17.9.3 or later is needed for long-lived release support.

Q: Which optics are supported?
A: Supported optics are listed in the Cisco TMG Compatibility Matrix at tmgmatrix.cisco.com, filtered for C8500.
