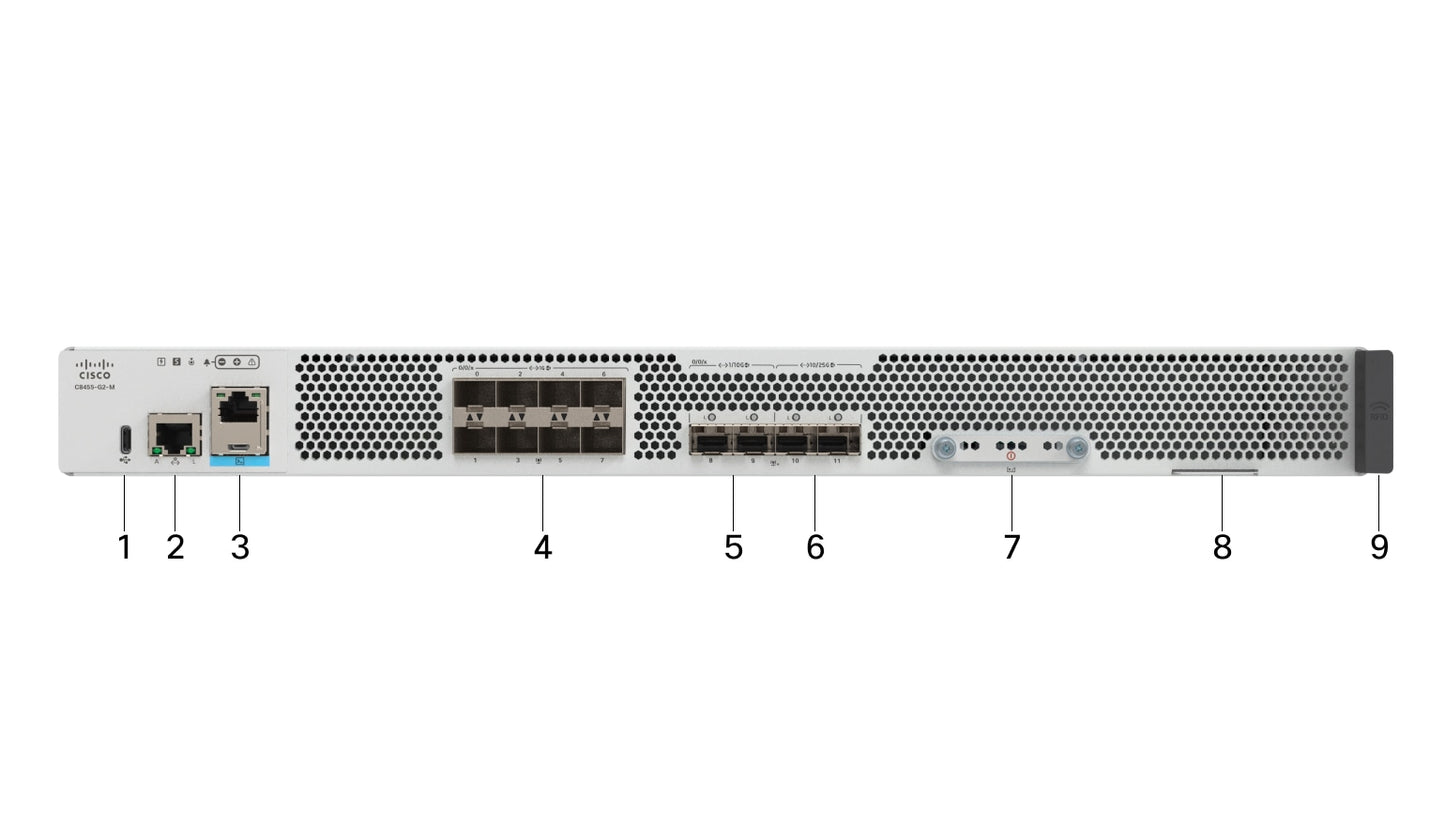

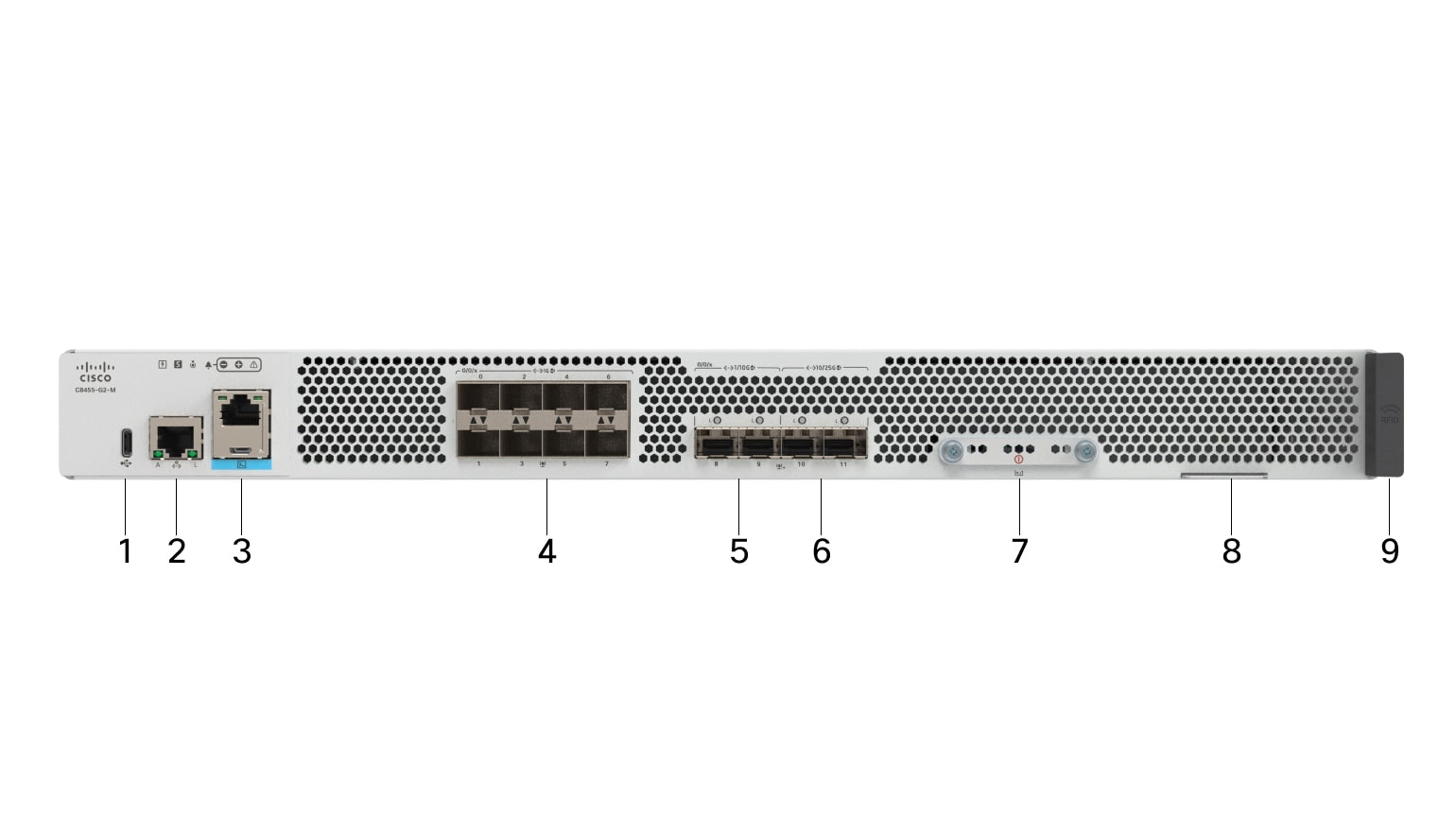

• Cisco C8455-G2 secure edge router with silver chassis and white panel
1 1

Cisco

Cisco C8455-G2 | 8400 Secure Router, 8x1G SFP, 2x10G SFP+, 2x25G SFP28

C8455-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C8455-G2 is a 1RU fixed-form-factor secure router from the Cisco 8400 Series, built for campus and internet-edge deployments. It combines routing, SD-WAN and next-generation firewall security on a dedicated secure networking processor with hardware-accelerated cryptography and post-quantum cryptography readiness. It suits university campuses, large hospitals and healthcare sites, corporate headquarters and municipal government networks, as well as high-bandwidth applications such as video, research and telemedicine.

This IOS XE model provides 8 x 1GE SFP ports, 2 x 1/10GE SFP+ ports and 2 x 10/25GE SFP28 ports. Cisco rates it at up to 67 Gbps forwarding, up to 31 Gbps IPsec and up to 15.5 Gbps SD-WAN at 512B, with up to 9.5 Gbps of security throughput (EMIX). It ships with 32 GB DRAM and 64 GB storage, with 600 GB and 2 TB storage options. Power supply options are 250W AC, 400W DC or 400W HVDC, and the chassis is only 12 inches deep, which suits small racks.

The router runs Cisco IOS XE and is managed through Catalyst SD-WAN Manager. It starts at IOS XE 17.15.3 and SD-WAN Manager 20.15.3. It accepts SFP, SFP+ and SFP28 optics for 1G, 10G and 25G links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dedicated secure networking processor for fast cryptography and deep packet inspection
- Hardware acceleration for high throughput with threat protection enabled
- NGFW security, routing and SD-WAN combined in one platform
- Post-quantum cryptography (PQC) readiness
- Hardware acceleration for AI/ML tasks
- Shorter 12 in chassis with front-panel access and label trays for small racks
- ENERGY STAR certified with 80 PLUS Platinum/Titanium power supplies
- Managed via Catalyst SD-WAN Manager, on-premises, infrastructure-as-code or cloud management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU fixed
- Operating system: Cisco IOS XE (non-Meraki)
- WAN ports: 8 x 1GE SFP
- WAN ports: 2 x 1/10GE SFP+
- WAN ports: 2 x 10/25GE SFP28
- Management: 1 x RJ45 OOB management
- Console: 1 x RJ45 / 1 x micro-USB
- Front panel: USB 3.0 Type-C storage, M.2 storage slot
- DRAM: 32 GB (default)
- Storage: 64 GB (default), 600 GB or 2 TB options
- Forwarding (512B): up to 67 Gbps
- IPsec (512B): up to 31 Gbps
- SD-WAN (512B, IPsec + QoS + DPI + Flexible NetFlow): up to 15.5 Gbps
- Security (EMIX): up to 9.5 Gbps
- IPv4/IPv6 routes: up to 5.8M
- IPsec tunnels: up to 6K (from IOS XE 26.2.1), up to 3.5K (prior)
- Power supply options: 250W AC, 400W DC, 400W HVDC
- Dimensions (H x W x D): 1.73 in x 17.50 in x 12 in
- Chassis weight with 2x AC power supplies and fan tray: 12.5 lbs
- Operating temperature: 32 to 104 F
- Storage temperature: -40 to 150 F
- Relative humidity (non-condensing): operating 10 to 85%, storage 5 to 95%
- Altitude: -500 to 10,000 feet
- NEBS criteria levels: GR-1089 and GR-63
- Minimum software: IOS XE 17.15.3 / Catalyst SD-WAN Manager 20.15.3

FAQs

Q: What software does the C8455-G2 run?
A: It runs Cisco IOS XE and is managed through Catalyst SD-WAN Manager. The minimum releases are IOS XE 17.15.3 and SD-WAN Manager 20.15.3.

Q: Is this the Meraki version of the 8455-G2?
A: No. This SKU is the IOS XE model. The Meraki OS variant is a separate model, the 8455-G2-MX.

Q: What power supply options are available?
A: The platform supports 250W AC, 400W DC and 400W HVDC power supplies, and it supports 80 PLUS Platinum/Titanium high-efficiency supplies.

Q: Which optics does it take?
A: The ports accept SFP optics for 1G, SFP+ optics for 1G or 10G and SFP28 optics for 10G or 25G.

Q: How does it differ from the C8475-G2?
A: The C8455-G2 has a shorter 12 in depth chassis with 8 x 1GE SFP, 2 x 10GE SFP+ and 2 x 25GE SFP28 ports. The C8475-G2 is a larger sibling with more ports and a 16.25 in depth.
