Cisco

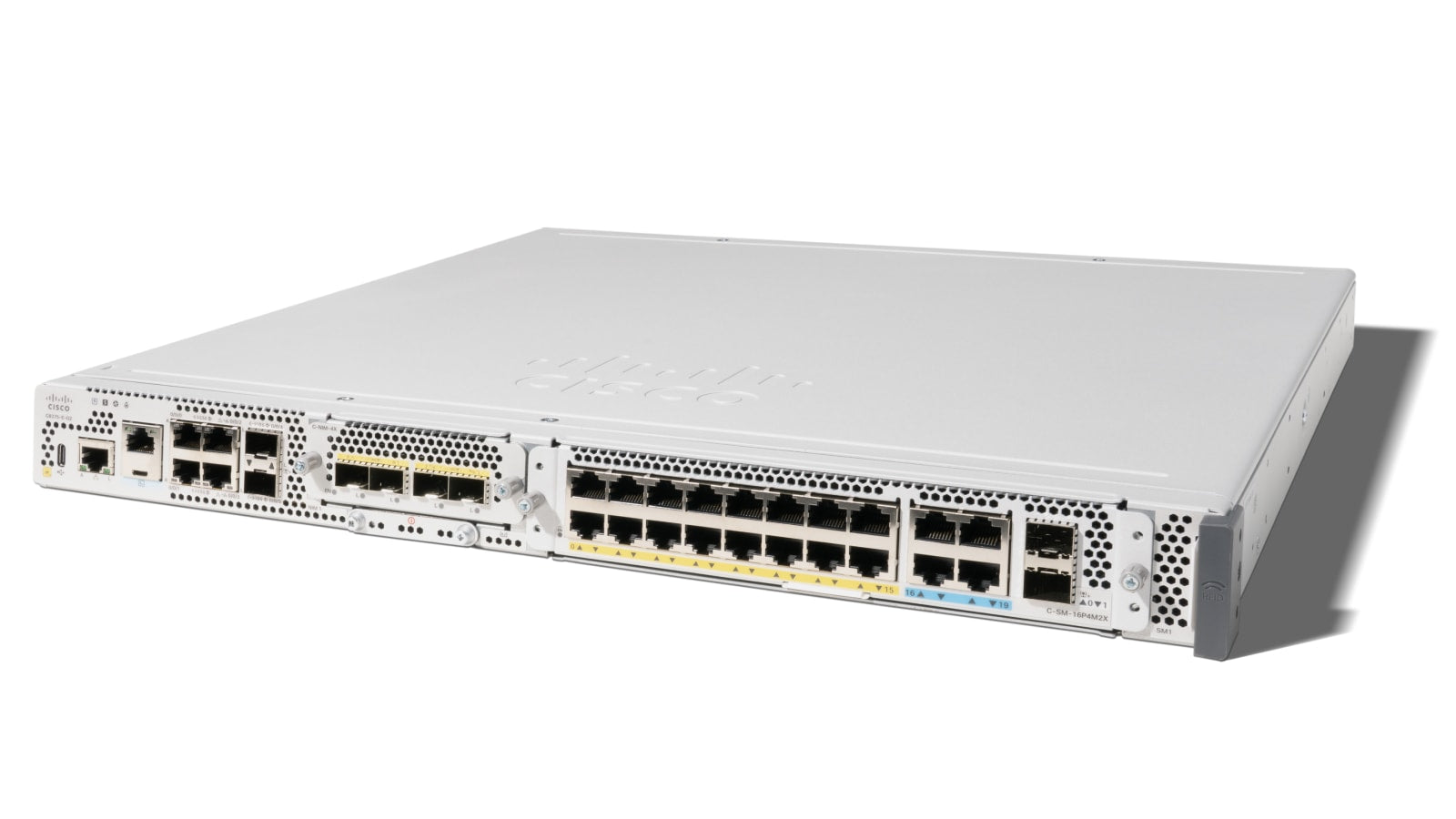

Cisco C8375-E-G2 | 8300 Modular Router, 2x 10G SFP+, 4x 2.5G

C8375-E-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8300 Series Secure Router is a modular 1RU router built for large branch sites, with a dedicated secure networking processor for cryptography and deep packet inspection. It brings routing, next-generation firewall security and Catalyst SD-WAN together on one platform, which suits locations serving thousands of users and devices, bandwidth-intensive applications, network segmentation for compliance and advanced threat protection.

This SKU provides 2x 10G SFP/SFP+ and 4x 2.5G mGig RJ45 WAN ports, with two of the mGig ports supporting UPoE+. Expansion comes from one NIM slot, one SM slot and one PIM slot for pluggable 5G or LTE cellular. It ships with 16 GB DRAM, upgradeable to 32 GB, and dual 400W AC internal power supplies. Quoted performance at 512B is 38 Gbps forwarding, 20 Gbps IPsec and 12 Gbps SD-WAN, with 7 Gbps of threat protection on EMIX traffic. It ships preloaded with Cisco Routing OS Essentials, with Advantage options available.

It works with WAN NIMs C-NIM-WAN-2X and C-NIM-WAN-4S, LAN NIMs C-NIM-4X, C-NIM-8T and C-NIM-8M, and the C-SM-16P4M2X switch module. Cellular options include P-5GS6-R16SA-GL, P-LTEA7-NA, P-LTEA7-EAL and P-LTEA7-JP. Minimum software is IOS XE 17.15.3.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dedicated secure networking processor for fast cryptography and deep packet inspection
- Hardware acceleration for high throughput with threat protection enabled
- NGFW security, routing and SD-WAN combined in one platform
- Post-quantum cryptography (PQC) readiness
- Modular design with NIM and SM slots plus a pluggable PIM slot for 5G or LTE
- Replaceable fan tray and dual PSU slots with AC or DC options
- Managed through Catalyst SD-WAN Manager, cloud management or infrastructure-as-code

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- WAN ports: 2 x 10G SFP/SFP+, 4 x 2.5G mGig RJ45 (2x UPoE+)
- Expansion slots: 1 x NIM, 1 x SM
- Cellular slot: 1 x PIM
- Management port: 1 x RJ45 OOB Mgmt, 1 x RJ45 / 1 x Micro-USB console
- DRAM: 16 GB (default), upgradeable to 32 GB
- Storage: 16 GB (default), options of 32 GB, 600 GB or 2 TB
- Power supply (default, dual PSU): 400W AC internal
- Power supply (options): 760W AC + PoE (360W PoE budget), 500W DC
- Typical power consumption (default PSU, no modules): 55 W
- Forwarding (512B): 38 Gbps
- IPsec (512B): 20 Gbps
- SD-WAN (512B): 12 Gbps
- Threat protection (EMIX): 7 Gbps
- IPv4/IPv6 routes: 2M
- NAT sessions: 1.5M
- VRFs: 4000
- Dimensions (H x W x D): 1.73 in x 17.5 in x 16.25 in
- Rack units: 1 RU
- Chassis weight: 14.3 lbs (with 2x AC power supplies and fan tray)
- Input voltage: AC 85 to 264 VAC; DC -40 to 72 V
- Operating temperature: 0 to 40 C up to 10,000 ft; 0 to 45 C up to 6,000 ft
- Storage temperature: -40 to 70 C
- Minimum software: IOS XE 17.15.3; Catalyst SD-WAN Manager 20.15.3

FAQs

Q: What licensing does the C8375-E-G2 ship with?
A: It ships preloaded with Cisco Routing OS Essentials, a perpetual embedded OS licence. Upgrades are the OS Advantage perpetual licence or a Cisco Routing Advantage subscription. For Catalyst SD-WAN deployments, a Cisco WAN Essentials or WAN Advantage subscription is selected separately.

Q: What power supplies does it use?
A: The default is dual 400W AC internal power supplies, PWR-CC1-400WAC. Options are PWR-CC1-760WAC, which adds a 360W PoE budget, and PWR-CC1-500WDC for DC feeds. The 2.5G mGig ports support UPoE+.

Q: Which modules does it support?
A: It takes both NIMs and SMs. WAN NIMs include C-NIM-WAN-2X and C-NIM-WAN-4S, and LAN NIMs include C-NIM-4X, C-NIM-8T and C-NIM-8M. The switch module is C-SM-16P4M2X, and the C-SM-NIM-ADPT carrier fits dual NIMs.

Q: How do I add 5G or LTE?
A: The PIM slot accepts cellular pluggables: P-5GS6-R16SA-GL for 5G SA global, and P-LTEA7-NA, P-LTEA7-EAL or P-LTEA7-JP for LTE Advanced in specific regions.

Q: Can the memory and storage be upgraded?
A: Yes. DRAM can be upgraded from 16 GB to 32 GB with MEM-C83G2-32GB. Storage options are M2USB-32G, SSD-M2SED-600G and SSD-M2SED-2T.
