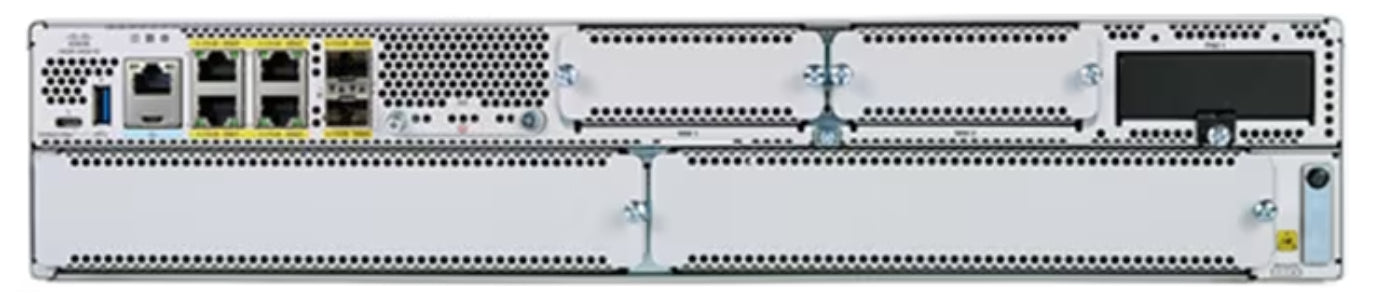

• Cisco 1941 router with black silver accents and Ethernet ports
1 1

Cisco

Cisco C8300-2N2S-6T-V | Catalyst 8300 Router, 6x 1GbE, Voice Bundle, NIM-PVDM

C8300-2N2S-6T-V

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8300 is a 2RU edge router for branch sites that need WAN routing and integrated voice in one chassis. This voice bundle ships with a NIM-PVDM voice DSP module for DSP-based voice termination and transcoding, and it runs in either SD-WAN controller mode or autonomous mode, so it suits SD-WAN rollouts, secure direct internet access and branch voice or UC deployments.

The chassis provides six embedded Layer 3 Gigabit Ethernet ports (2x SFP and 4x RJ45), plus 2 SM slots, 2 NIM slots and 1 PIM slot for expansion. It comes with 8 GB DRAM (upgradable to 32 GB) and 16 GB M.2 USB storage. SD-WAN IPsec throughput reaches up to 2 Gbps (1400 B), and IPv4 forwarding in autonomous mode reaches up to 19.7 Gbps (1400 B). Dual power supplies are standard, with a 650W AC unit as the default.

The platform needs a Cisco DNA software subscription with a bandwidth tier, managed through Cisco Smart Licensing. Voice modules require the Cisco DNA Advantage tier. It works with the Catalyst 8300 NIM and SM module range, including NIM-PVDM-32, 64, 128 and 256, and requires Cisco IOS XE 17.3.2 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs in SD-WAN controller mode or autonomous mode
- Multicore CPU architecture with dynamic core allocation
- Dual power supplies as standard for redundancy, with AC PoE and DC options available
- Modular design with SM, NIM and PIM slots for voice and WAN expansion
- Supports a NIM-PVDM DSP module in a NIM slot, or in an SM slot via the C-SM-NIM-ADPTR adapter
- Routing and VPN protocols including BGP, OSPF, EIGRP, IS-IS, MPLS, IPsec and LISP
- Security features including NGFW, IPS, URL filtering and AMP through the UTD security stack
- Embedded RFID tag holding serial number and product ID for asset management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU
- Dimensions (H x W x D): 89 x 438 x 470 mm (3.5 x 17.25 x 18.52 in)
- Chassis weight with 2 AC power supplies and fan tray: approx. 18 kg (40 lbs)
- Embedded ports: 6 x 1GbE Layer 3 (2 x SFP, 4 x RJ45)
- Module slots: 2 SM, 2 NIM, 1 PIM
- Voice module: NIM-PVDM voice DSP module
- Default memory: 8 GB DRAM (upgradable to 16 GB or 32 GB)
- Default storage: 16 GB M.2 USB
- SD-WAN IPsec throughput (1400 B): up to 2 Gbps
- SD-WAN IPsec throughput (IMIX): 1.8 Gbps
- SD-WAN overlay tunnels: 6000
- IPv4 forwarding throughput, autonomous mode (1400 B): up to 19.7 Gbps
- IPsec throughput, autonomous mode (1400 B): up to 1.9 Gbps
- IPsec SVTI tunnels: 4000
- IPv4 routes: 1.6M with 8 GB, up to 4M with 32 GB
- NAT sessions: 1.2M with 8 GB, up to 2M with 32 GB
- Default power supply: PWR-CC1-650WAC (650 W AC, 100-240 VAC, 50-60 Hz)
- Typical power consumption (no modules, single PSU): 89 W
- Operating temperature: 0 to 40 C (32 to 104 F)
- Operating humidity: 5 to 85% non-condensing
- Altitude: 0 to 3050 m (0 to 10,000 ft)
- MTBF: 710,300 hours
- Minimum software: Cisco IOS XE 17.3.2

FAQs

Q: Which licence does this router need?
A: It requires a Cisco DNA software subscription with a bandwidth tier, managed through Cisco Smart Licensing. Voice modules need the Cisco DNA Advantage tier, as the Catalyst Routing Essentials tier does not include voice features.

Q: What power supply does it use?
A: Dual power supplies are standard, with PWR-CC1-650WAC (650 W AC) as the default. Options include PWR-CC1-1000WAC-P (1000 W with a 500 W PoE budget), PWR-CC1-650WDC and PWR-CC1-650WDCR (NEBS). At least one PoE-capable supply is needed to enable PoE on NIM or SM modules.

Q: Which modules and options does it work with?
A: It supports the Catalyst 8300 NIM and SM module range, including NIM-PVDM-32, 64, 128 and 256 and SM-X-PVDM modules. Memory options are MEM-C8300-8GB, 16GB and 32GB, and storage options include M2USB-16G and M2USB-32G.

Q: Can I use NIM modules in the SM slots?
A: Yes. The C-SM-NIM-ADPTR adapter card lets NIM modules, including NIM-PVDM, be used in SM slots.

Q: Which rack-mount kit does this 2RU chassis use?
A: The 2RU Catalyst 8300 uses the C8300-RM-19-2R, C8300-RM-23-2R or C8300-RM-4PT-2R rack-mount kits.
