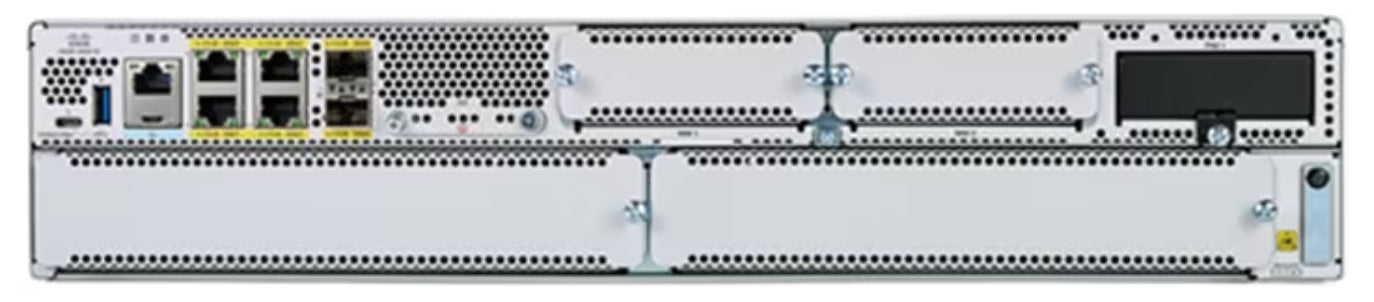

• Cisco C8300-2N2S-6T SD-WAN router with 6x 1G Ethernet ports
1 1

Cisco

Cisco C8300-2N2S-6T | Catalyst 8300 Router, 6x 1G, 2 NIM + 2 SM Slots

C8300-2N2S-6T

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8300 2RU edge router is built for medium and large enterprise branch offices that need strong WAN performance with integrated SD-WAN, multi-layer security and direct internet and cloud access. It also suits sites that rely on voice and UC survivability or LTE and 5G WAN connectivity.

This SKU is the 2RU model with 6 built-in 1-Gigabit Ethernet Layer 3 ports and no 10G ports. It provides two NIM slots, two SM slots and one PIM slot for modular expansion. It ships with 8 GB DRAM, upgradable to 16 GB or 32 GB, and 16 GB of M.2 storage. Cisco rates it at up to 2 Gbps SD-WAN IPsec throughput and up to 19.7 Gbps IPv4 forwarding in autonomous mode, with 6000 SD-WAN overlay tunnels. Dual power supplies support redundancy, with AC, AC PoE, DC and NEBS DC options.

The router supports Cisco NIMs, SMs and PIMs, including Ethernet, LAN and voice modules, and requires Cisco IOS XE 17.3.2 or later. It runs either Cisco IOS XE SD-WAN or autonomous IOS XE, and is managed through Catalyst SD-WAN Manager or Cisco DNA Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore CPU with dynamic core allocation between data plane and service plane
- Embedded IPsec VPN hardware acceleration with SSL and crypto offload
- Runs either Cisco IOS XE SD-WAN or autonomous IOS XE, and can move between them
- Integrated security: NGFW with application awareness, IPS/IDS, Advanced Malware Protection, URL filtering and Cisco Umbrella SIG
- Hardware-anchored Secure Boot and SUDI for Plug and Play identity verification
- Modular design with SM, NIM and PIM slots, including LTE and 5G pluggable modules
- Managed via Catalyst SD-WAN Manager or Cisco DNA Center
- Supports KVM and Docker container-based applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU
- Ports: 6 x 1-Gigabit Ethernet embedded Layer 3 ports (no 10G ports)
- Slots: 2 SM, 2 NIM, 1 PIM
- Memory (DRAM): 8 GB default, upgradable to 16 GB and 32 GB
- Storage (M.2): 16 GB default
- Onboard flash: 8 GB (not upgradable)
- SD-WAN IPsec throughput (1400 B): up to 2 Gbps
- SD-WAN IPsec throughput (IMIX): 1.8 Gbps
- SD-WAN overlay tunnel scale: 6000
- Autonomous mode IPv4 forwarding throughput (1400 B): up to 19.7 Gbps
- Autonomous mode IPsec throughput (1400 B): up to 1.9 Gbps
- IPsec SVTI tunnels: 4000
- IPv4 routes: 1.6M with 8 GB, up to 4M with 32 GB
- IPv6 routes: 1.5M with 8 GB, up to 4M with 32 GB
- NAT sessions: 1.2M with 8 GB, up to 2M with 32 GB
- Firewall sessions: 512K
- VRFs: 4000
- Typical power consumption (no modules, single PSU): 89 W
- Input voltage: AC 85 to 264 VAC; DC -40 to -72 V
- Dimensions (H x W x D): 88.9 x 438.2 x 470.4 mm
- Chassis weight with 2 AC power supplies and fan tray: approx. 18.1 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Altitude: 0 to 3050 m
- MTBF: 710,300 hours
- Minimum software: Cisco IOS XE 17.3.2

FAQs

Q: Does this router need a software licence or subscription?
A: Yes. The Catalyst 8300 is sold with a Cisco DNA Software subscription, Enterprise Agreement or MSLA, managed through Cisco Smart Licensing. The tier (Catalyst Routing Essentials, Cisco DNA Essentials or Cisco DNA Advantage) is selected separately from the hardware.

Q: Which power supplies does the 2RU Catalyst 8300 use?
A: It takes dual power supplies. Options are PWR-CC1-650WAC, PWR-CC1-1000WAC (500 W PoE budget), PWR-CC1-650WDC and PWR-CC1-650WDCR (reversed-airflow DC, NEBS). Powering PoE ports on NIMs or SMs needs at least one PoE-capable PSU.

Q: Which modules work in the NIM and SM slots?
A: Supported Ethernet L3 NIMs include C-NIM-1X, C-NIM-1M and C-NIM-2T. LAN NIMs include C-NIM-4X, C-NIM-8T, C-NIM-8M, NIM-ES2-4 and NIM-ES2-8. Voice modules include NIM-4BRI-NT/TE, SM-X-8FXS/12FXO, SM-X-16FXS/2FXO, SM-X-24FXS/4FXO, SM-X-72FXS, NIM-PVDM-32 and NIM-PVDM-64.

Q: Can the memory and storage be upgraded?
A: Yes. DRAM can be upgraded from 8 GB to 16 GB or 32 GB, and M.2 storage can be upgraded to 32 GB USB or 600 GB and 2 TB NVMe. The 8 GB onboard flash is not upgradable.

Q: How does this model differ from other Catalyst 8300 SKUs?
A: This is the 2RU model with 6 x 1GbE WAN ports and no 10G ports. It provides 2 NIM and 2 SM slots, so it suits sites that do not need 10G WAN connectivity.

Q: What software version does it require?
A: It requires Cisco IOS XE 17.3.2 or later, and can run either IOS XE SD-WAN or autonomous IOS XE.
