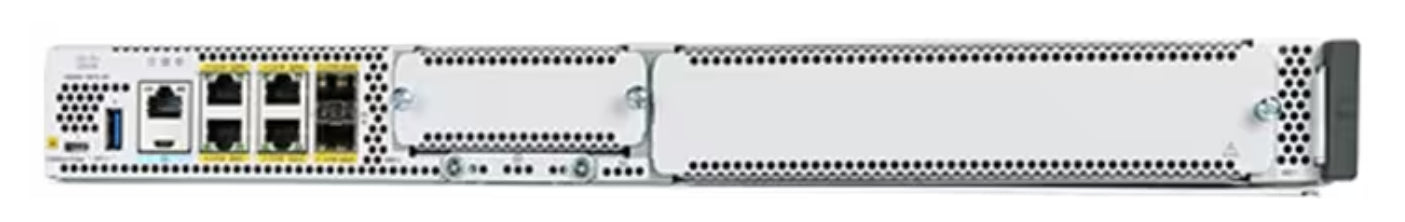

• Cisco C8300-1N1S-6T-V SD-WAN router with 6x 1G ports and silver chassis
1 1

Cisco

Cisco C8300-1N1S-6T-V | Catalyst 8300 Router, 6x 1G RJ45, Voice Bundle PVDM3

C8300-1N1S-6T-V

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8300 is a 1RU edge router for branch and remote-site deployments built around SD-WAN, SASE and direct internet access with integrated security such as NGFW, IPS, URL filtering and AMP. This voice bundle adds a NIM-PVDM DSP module to the base C8300-1N1S-6T chassis, so it also suits sites that need voice gateway or DSP resources for services like conferencing and transcoding.

The chassis provides six embedded 1 Gigabit Ethernet RJ45 ports, plus one SM slot, one NIM slot and one PIM slot. It ships with 8 GB of DRAM, upgradable to 32 GB, and 16 GB of M.2 USB storage. Cisco rates it at up to 2 Gbps of SD-WAN IPsec throughput and up to 19.7 Gbps of IPv4 forwarding throughput in autonomous mode, with typical power draw of 82 W with no modules and a single power supply.

The platform runs Cisco IOS XE, minimum release 17.3.2, and uses Cisco Smart Licensing under a DNA Software subscription. It is backward compatible with ISR 4000 NIMs and SMs, including NIM-PVDM-32/64/128/256 and SM-X-PVDM modules, and supports PWR-CC1 series 1RU power supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 5G-ready cloud edge platform designed for SD-WAN, multi-layer security and cloud-native services
- Runs Cisco IOS XE with a programmable architecture and API support for automation and zero-touch deployment
- Modular design supports WAN, LAN, voice and compute modules, backward compatible with ISR 4000 NIMs and SMs
- NIM-PVDM DSP module adds voice services such as conferencing and transcoding
- Memory upgradable to 32 GB, with M.2 USB and NVMe SED storage options
- Embedded RFID tag holds the serial number and PID for asset management
- Redundant power supply capability in the 1RU chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Embedded ports: 6 x 1 Gigabit Ethernet (RJ45)
- Module slots: 1 SM, 1 NIM, 1 PIM
- Rack units: 1RU
- Default memory: 8 GB DRAM, upgradable to 32 GB
- Default storage: 16 GB M.2 USB
- SD-WAN IPsec throughput (1400 bytes): up to 2 Gbps
- SD-WAN IPsec throughput (IMIX): 1.8 Gbps
- SD-WAN overlay tunnels scale: 6000
- IPv4 forwarding throughput (1400 bytes, autonomous): up to 19.7 Gbps
- IPsec throughput (1400 bytes, autonomous): up to 1.9 Gbps
- IPsec SVTI tunnels: 4000
- Firewall sessions: 512K
- NAT sessions: 1.2M with 8 GB, up to 2M with 32 GB
- IPv4 routes: 1.6M with 8 GB, up to 4M with 32 GB
- Typical power consumption (no modules, single PSU): 82 W
- Input voltage: AC 85 to 264 VAC; DC -40 to 72 V
- Dimensions (H x W x D): 1.73 x 17.50 x 16.25 in
- Operating temperature: 0 to 40 C (32 to 104 F)
- Relative humidity (operating): 5 to 85% noncondensing
- Altitude: 0 to 10,000 ft (0 to 3050 m)
- MTBF: 536,060 hours
- Minimum software: Cisco IOS XE 17.3.2

FAQs

Q: Does this router need a licence or subscription?
A: Catalyst 8300 platforms are offered with a Cisco DNA Software subscription (Catalyst Routing Essentials, Cisco DNA Essentials or Cisco DNA Advantage) and use Cisco Smart Licensing. A High Security (HSEC) licence is needed for full crypto throughput, and it is included with DNA subscriptions.

Q: How does C8300-1N1S-6T-V differ from the base C8300-1N1S-6T?
A: It uses the same 1RU chassis with six 1G RJ45 ports, but it is the voice bundle and adds a NIM-PVDM voice DSP module for voice and DSP resources.

Q: Which power supplies work with this chassis?
A: The 1RU Catalyst 8300 chassis uses PWR-CC1-250WAC, PWR-CC1-400WAC, PWR-CC1-500WAC, PWR-CC1-400WDC or PWR-CC1-400WHV. The chassis itself has no PoE, so PoE needs the 500 W supply plus a PoE-capable NIM such as C-NIM-1M.

Q: Which modules does it support?
A: It supports NIMs such as C-NIM-1X, C-NIM-1M, C-NIM-2T, C-NIM-4X, C-NIM-8T and C-NIM-8M, plus FXS, FXO, BRI, T1 and E1 voice NIMs and NIM-PVDM-32/64/128/256. SMs include SM-X-PVDM-500/1000/2000/3000 and UCS-E modules. Double-wide SMs are supported only on 2RU chassis.

Q: Can the memory be upgraded?
A: Yes. It ships with 8 GB of DRAM and can be upgraded to 32 GB using MEM-C8300-16GB or MEM-C8300-32GB, which also raises the supported route and NAT session scale.

Q: Which software release does it need?
A: The minimum supported software is Cisco IOS XE 17.3.2.
