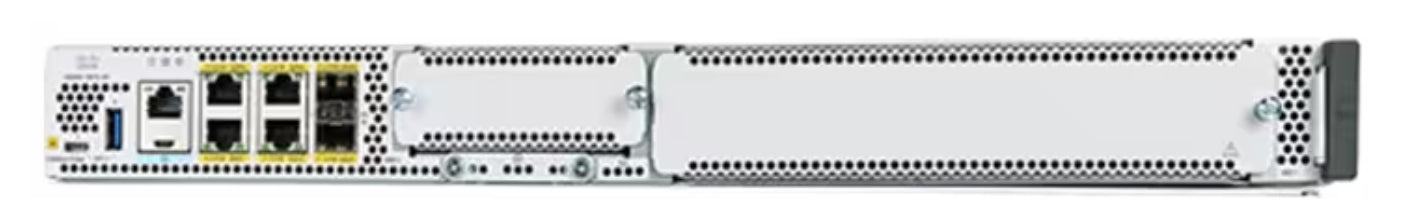

• Cisco C8300-1N1S-6T SD-WAN edge router with 6x 1G RJ45 ports
1 1

Cisco

Cisco C8300-1N1S-6T | Catalyst 8300 Router, 6x 1G, 1 SM + 1 NIM, 8GB DRAM

C8300-1N1S-6T

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8300 is a 1RU edge router for medium to large enterprise branch offices that need high WAN IPsec performance, integrated Catalyst SD-WAN services, multi-layer security and a path to cloud or SASE architectures. It runs Cisco IOS XE in either autonomous mode or Catalyst SD-WAN mode.

This model provides 6 embedded 1 Gigabit Layer 3 Ethernet ports for 1G WAN connectivity, along with 1 Service Module (SM) slot, 1 Network Interface Module (NIM) slot and 1 Pluggable Interface Module (PIM) slot. It ships with 8 GB DRAM, upgradable to 16 GB or 32 GB, and a 16 GB M.2 USB drive alongside 8 GB of onboard flash. SD-WAN IPsec throughput is up to 2 Gbps with 1400 byte packets, with support for up to 6000 SD-WAN overlay tunnels. In autonomous mode, IPv4 forwarding reaches up to 19.7 Gbps.

The router is sold with a Cisco DNA Software subscription managed through Cisco Smart Licensing, with Catalyst Routing Essentials, Cisco DNA Essentials and Cisco DNA Advantage tiers available. It supports a range of NIMs including C-NIM-1X, C-NIM-1M, C-NIM-2T, C-NIM-4X and C-NIM-8T, as well as ISR 4000-compatible service modules. Cisco IOS XE 17.3.2 or later is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore processor with dynamic core allocation for service-oriented or data-plane-heavy workloads
- Embedded IPsec VPN hardware acceleration plus SSL and crypto acceleration
- Runs in autonomous mode or Catalyst SD-WAN mode, with SD-Routing support via SD-WAN Manager
- Integrated security including application-aware NGFW, IPS/IDS, Advanced Malware Protection, URL filtering and Umbrella SIG (SASE)
- Hardware-anchored secure boot and SUDI for Plug and Play provisioning
- Dual redundant power supplies by default, with AC PoE and DC options
- Modular SM, NIM and PIM slots, backward compatible with many ISR 4000 modules
- Supports KVM and Docker container-based applications on the service plane

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: C8300-1N1S-6T
- Form factor: 1RU
- Embedded ports: 6 x 1GbE Layer 3
- Slots: 1 SM, 1 NIM, 1 PIM
- DRAM: 8 GB default, upgradable to 16 GB or 32 GB
- Storage: 16 GB M.2 USB default, plus 8 GB onboard flash (not upgradeable)
- SD-WAN IPsec throughput (1400 B): up to 2 Gbps
- SD-WAN IPsec throughput (IMIX): 1.8 Gbps
- SD-WAN overlay tunnels: 6000
- Autonomous mode IPv4 forwarding throughput (1400 B): up to 19.7 Gbps
- Autonomous mode IPsec throughput (1400 B): up to 1.9 Gbps
- IPsec SVTI tunnels: 4000
- IPv4 routes: 1.6M with 8 GB, up to 4M with 32 GB
- IPv6 routes: 1.5M with 8 GB, up to 4M with 32 GB
- NAT sessions: 1.2M with 8 GB, up to 2M with 32 GB
- Firewall sessions: 512K
- VRFs: 4000
- Default power supply: PWR-CC1-250WAC (250 W AC)
- Input voltage: 85 to 264 VAC
- Typical power (no modules, single PSU): 82 W
- Dimensions (H x W x D): 1.73 x 17.50 x 16.25 in (approx. 43.9 x 444.5 x 412.8 mm)
- Chassis weight (2 AC power supplies and fan tray): 20 lbs (approx. 9.1 kg)
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Operating humidity: 5 to 85% noncondensing
- MTBF: 536,060 hours
- Minimum software: Cisco IOS XE 17.3.2

FAQs

Q: Does the C8300-1N1S-6T need a licence or subscription?
A: Yes. The Catalyst 8300 is sold with a Cisco DNA Software subscription managed through Cisco Smart Licensing and a Smart Account. Tiers available are Catalyst Routing Essentials, Cisco DNA Essentials and Cisco DNA Advantage, ordered separately or alongside the hardware.

Q: What power supply does it use?
A: The default supply is the PWR-CC1-250WAC (250 W AC). Optional supplies are the PWR-CC1-500WAC (500 W AC with a 250 W PoE budget) and the PWR-CC1-400WDC (400 W DC). PoE on NIM or SM modules needs at least one PoE-capable supply.

Q: Which modules does it work with?
A: It supports NIMs such as C-NIM-1X, C-NIM-1M, C-NIM-2T, C-NIM-4X, C-NIM-8T and NIM-ES2-4/8, plus ISR 4000-compatible service modules. It has one NIM slot and one SM slot.

Q: Can memory and storage be upgraded?
A: Yes. DRAM can be upgraded from 8 GB to 16 GB or 32 GB, and the M.2 storage can be upgraded to 32 GB USB or 600 GB or 2 TB NVMe. The 8 GB onboard flash is not upgradeable.

Q: What software version does it require?
A: It requires Cisco IOS XE Software Release 17.3.2 or later, and can run in autonomous mode or Catalyst SD-WAN mode.
