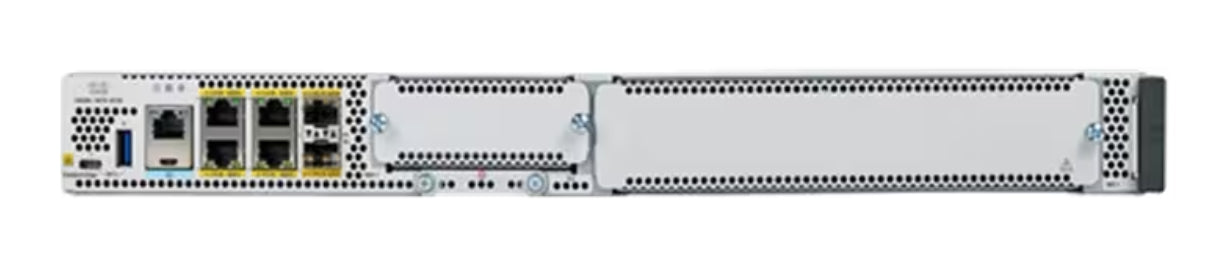

• Cisco C8300-1N1S-4T2X SD-WAN router with 4x1G ports, 2x10G SFP+, silver finish
1 1

Cisco

Cisco C8300-1N1S-4T2X | Catalyst 8300 Router, 2x 10G SFP+, 4x 1G RJ45, 1 SM + 1 NIM

C8300-1N1S-4T2X

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8300 is a 1RU branch edge router for medium and large enterprise sites that need high WAN IPsec performance with integrated Catalyst SD-WAN services, secure direct internet access and cloud connectivity. It runs Cisco IOS XE in autonomous mode or with Catalyst SD-WAN, managed through Catalyst SD-WAN Manager or Cisco DNA Center.

This C8300-1N1S-4T2X variant provides 2 x 10GbE SFP/SFP+ and 4 x 1GbE RJ-45 embedded Layer 3 Ethernet ports, with one SM slot, one NIM slot and one PIM slot. It ships with 8 GB DRAM (upgradeable to 16 or 32 GB) and 16 GB M.2 USB storage. Throughput reaches up to 17 Gbps of SD-WAN IPsec traffic and up to 19.7 Gbps of IPv4 forwarding in autonomous mode, both at 1400 byte packets. Dual power supplies are fitted by default, with a typical draw of 245 W with no modules and a single supply. The Catalyst 8300 Series is licensed through a Cisco DNA Software subscription using Cisco Smart Licensing, in Routing Essentials, DNA Essentials or DNA Advantage tiers.

The chassis accepts NIMs such as C-NIM-1X, C-NIM-2T, C-NIM-4X and C-NIM-8T, along with SM-based modules and PIMs. Memory, storage, rack-mount kit and fan tray options are available, and the router requires Cisco IOS XE 17.3.2 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore CPU with embedded IPsec VPN hardware acceleration and SSL/crypto acceleration
- Runs Cisco IOS XE in autonomous mode or with Catalyst SD-WAN
- Dual power supplies by default for redundancy, with AC, PoE-capable AC, DC and HV DC options
- Integrated security including NGFW with application awareness, IPS/IDS, Advanced Malware Protection, URL filtering and Umbrella SIG
- Hardware-anchored Secure Boot and SUDI for Plug and Play
- Modular design with SM, NIM and PIM slots for WAN, LAN, voice and compute modules
- Dynamic core allocation so data plane cores can be used for services as configured
- Managed through Catalyst SD-WAN Manager or Cisco DNA Center

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: C8300-1N1S-4T2X
- Form factor: 1RU
- Embedded ports: 2 x 10GbE SFP/SFP+ and 4 x 1GbE RJ-45 Layer 3 Ethernet
- Slots: 1 SM, 1 NIM, 1 PIM
- DRAM: 8 GB default, upgradeable to 16 GB or 32 GB
- Storage: 16 GB M.2 USB default
- On-board flash: 8 GB
- SD-WAN IPsec throughput (1400 byte): up to 17 Gbps
- SD-WAN IPsec throughput (IMIX): 6.3 Gbps
- SD-WAN overlay tunnels: 6000
- Autonomous mode IPv4 forwarding throughput (1400 byte): up to 19.7 Gbps
- Autonomous mode IPsec throughput (1400 byte): up to 16.9 Gbps
- IPsec SVTI tunnels: 4000
- IPv4 routes: 1.6M with 8 GB, up to 4M with 32 GB
- Typical power consumption (no modules, single PSU): 245 W
- Input voltage: AC 85 to 264 VAC, DC -40 to 72 V
- Dimensions (H x W x D): 44 x 445 x 413 mm
- Weight with 2 AC power supplies and fan tray: approx. 9.1 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 85% non-condensing
- MTBF: 536,060 hours
- Minimum software: Cisco IOS XE 17.3.2

FAQs

Q: Does the Catalyst 8300 need a licence or subscription?
A: The Catalyst 8300 Series is sold with a Cisco DNA Software subscription using Cisco Smart Licensing. Tiers offered are Catalyst Routing Essentials, Cisco DNA Essentials and Cisco DNA Advantage.

Q: What power supplies does it use?
A: It ships with dual power supplies by default. 1RU options are PWR-CC1-250WAC, PWR-CC1-500WAC (250 W PoE budget), PWR-CC1-400WDC and PWR-CC1-400WHV. Enabling PoE on NIMs or SMs requires at least one PoE-capable supply.

Q: Which modules and options does it work with?
A: It supports NIMs such as C-NIM-1X, C-NIM-2T, C-NIM-4X and C-NIM-8T, plus SM-based modules and PIMs. Memory options are MEM-C8300-8GB, 16GB and 32GB, and rack-mount kits are C8300-RM-19-1R, C8300-RM-23-1R and C8300-RM-4PT-1R. The fan tray is C8300-FAN-1R.

Q: What is the minimum software version?
A: The Catalyst 8300 Series requires Cisco IOS XE 17.3.2 or later.

Q: How does this variant differ from other Catalyst 8300 SKUs?
A: C8300-1N1S-4T2X is a 1RU unit with 2 x 10G SFP+ and 4 x 1G RJ-45 ports, plus one SM slot and one NIM slot.
