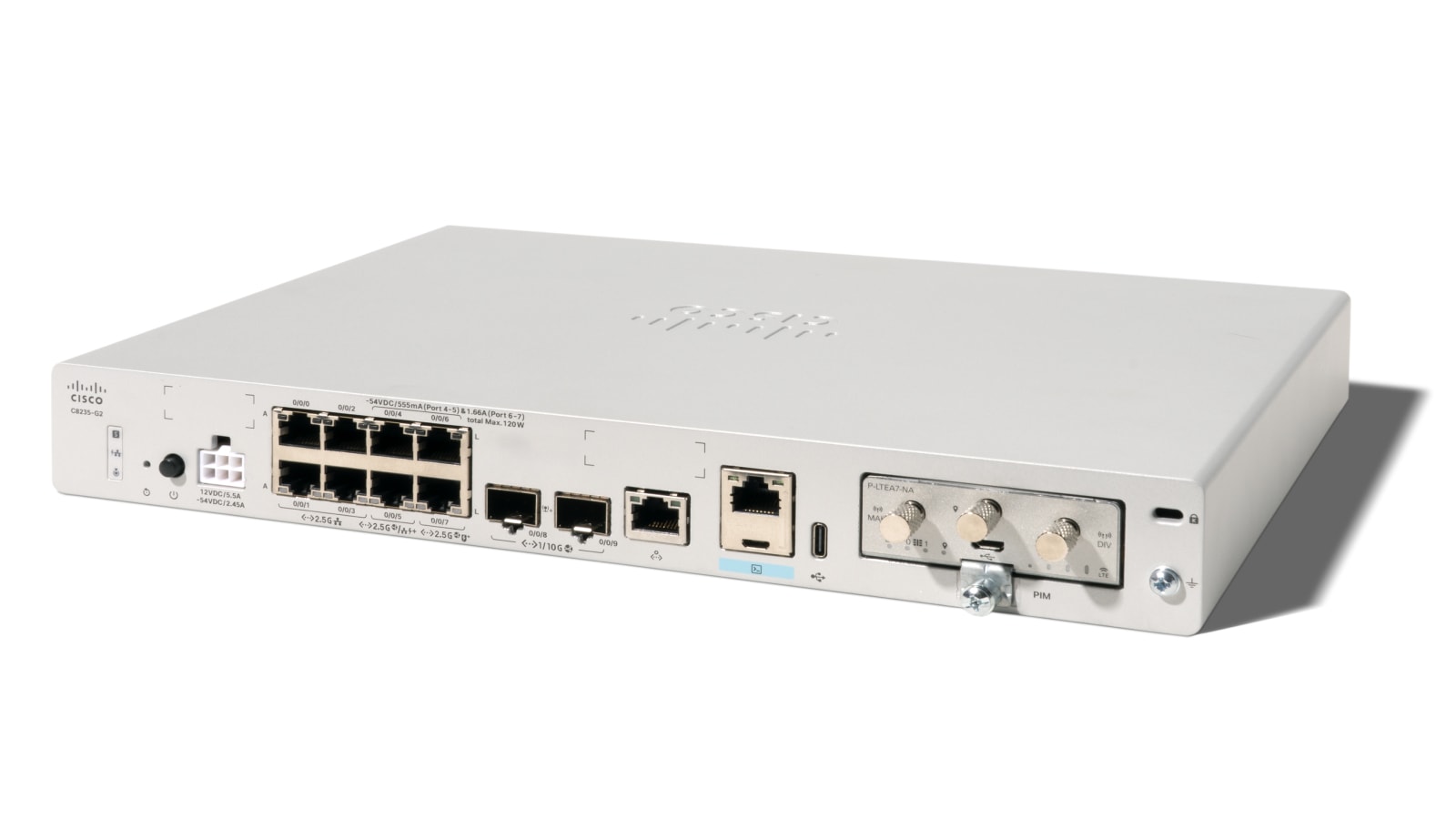

• Cisco C8235-G2 SD-WAN edge router with ports and sleek design
1 1

Cisco

Cisco C8235-G2 | Catalyst 8200 Secure Router, 2x 10G SFP+, 8x 2.5G mGig

C8235-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8200 C8235-G2 is a medium-branch secure router from the Cisco 8200 Series. It combines routing, SD-WAN and next-generation firewall security on a dedicated secure networking processor, and suits noise-sensitive or space-constrained WAN edge sites. It runs as a desktop unit or can be rack mounted at 2RU.

This model has two 1/10GE SFP+ ports and eight 2.5GE multigigabit RJ-45 ports, split into two WAN, two flex and four LAN ports. A single PIM slot takes cellular pluggables. There is no NIM slot. It has 16 GB of DRAM and 16 GB of storage. Throughput is 19 Gbps forwarding, 5 Gbps IPsec and 4 Gbps SD-WAN at 512B packets. The default 66 W AC adapter can be swapped for a 230 W PoE adapter that gives a 120 W PoE budget across two UPOE+ WAN ports and two PoE+ flex ports.

It ships with perpetual Cisco Routing OS Essentials, with an optional OS Advantage upgrade. The PIM slot works with the P-5GS6-R16SA-GL, P-LTEA7-NA, P-LTEA7-EAL and P-LTEA7-JP cellular modules. IOS XE 17.18.1 or later is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dedicated secure networking processor for fast cryptography and deep packet inspection
- Hardware acceleration for high throughput with threat protection enabled
- Integrated next-generation firewall security, routing and SD-WAN in one platform
- Post-quantum cryptography ready secure networking
- Managed on-premises, through infrastructure-as-code or from the cloud
- Cellular connectivity through PIM pluggables, including 5G Sub-6 SA and CAT7 LTE-A

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- WAN ports: 2x 1/10 GE SFP+, 2x 2.5 GE mGig RJ-45 (2x UPOE+)
- Flex ports: 2x 2.5 GE mGig RJ-45 (2x PoE+)
- LAN ports: 4x 2.5 GE mGig RJ-45
- Expansion slots: none (no NIM slot)
- Cellular slot: 1x PIM
- Management and console: 1x RJ-45 OOB management, 1x RJ-45 console, 1x micro-USB console
- Other front-panel ports: USB 3.0 Type C storage
- DRAM: 16 GB
- Storage: 16 GB
- Forwarding throughput (512B): 19 Gbps
- IPsec throughput (512B): 5 Gbps
- SD-WAN throughput (512B): 4 Gbps
- Threat protection throughput (EMIX): 2.4 Gbps
- IPv4/IPv6 routes: 1.5M
- IPsec tunnels: up to 2500 (IOS XE 26.2.1 and later), up to 700 (prior releases)
- NAT sessions: 1.5M
- VRF instances: 4000
- Power supply (default): 66 W AC external adapter
- Power supply (optional): 230 W AC PoE adapter, 120 W PoE budget
- Typical power consumption: 27.11 W
- Input voltage: 85 to 264 VAC
- Dimensions (H x D x W): 4.19 x 22.60 x 32.26 cm (1.65 x 8.9 x 12.7 in)
- Form factor: desktop, 2RU when rack mounted
- Chassis weight: 3.17 kg (7 lbs)
- Operating temperature: 0 to 40 C
- Minimum software: IOS XE 17.18.1 / SD-WAN 20.18.1

FAQs

Q: Which licence does the C8235-G2 include?
A: It is preloaded with perpetual Cisco Routing OS Essentials, and an optional OS Advantage perpetual upgrade is available. No subscription is included by default, so you choose Cisco Routing Advantage or Cisco WAN Essentials/Advantage separately depending on whether you run traditional routing or Catalyst SD-WAN.

Q: How is the router powered and what is the PoE budget?
A: The default power supply is a 66 W AC external adapter. The optional 230 W AC PoE adapter gives a 120 W PoE budget across the two UPOE+ WAN ports and two PoE+ flex ports. Typical power consumption is 27.11 W.

Q: Can I add NIM modules or cellular connectivity?
A: There is no NIM slot, so NIM modules are not supported. The single PIM slot accepts the P-5GS6-R16SA-GL, P-LTEA7-NA, P-LTEA7-EAL and P-LTEA7-JP cellular pluggables.

Q: Which software release does it need?
A: It requires IOS XE 17.18.1 or later, and SD-WAN Manager 20.18.1 or later for Catalyst SD-WAN deployments.

Q: Can it be rack mounted?
A: Yes. It is a desktop unit that occupies 2RU when installed with the rack-mount tray, which also holds the power supply.
