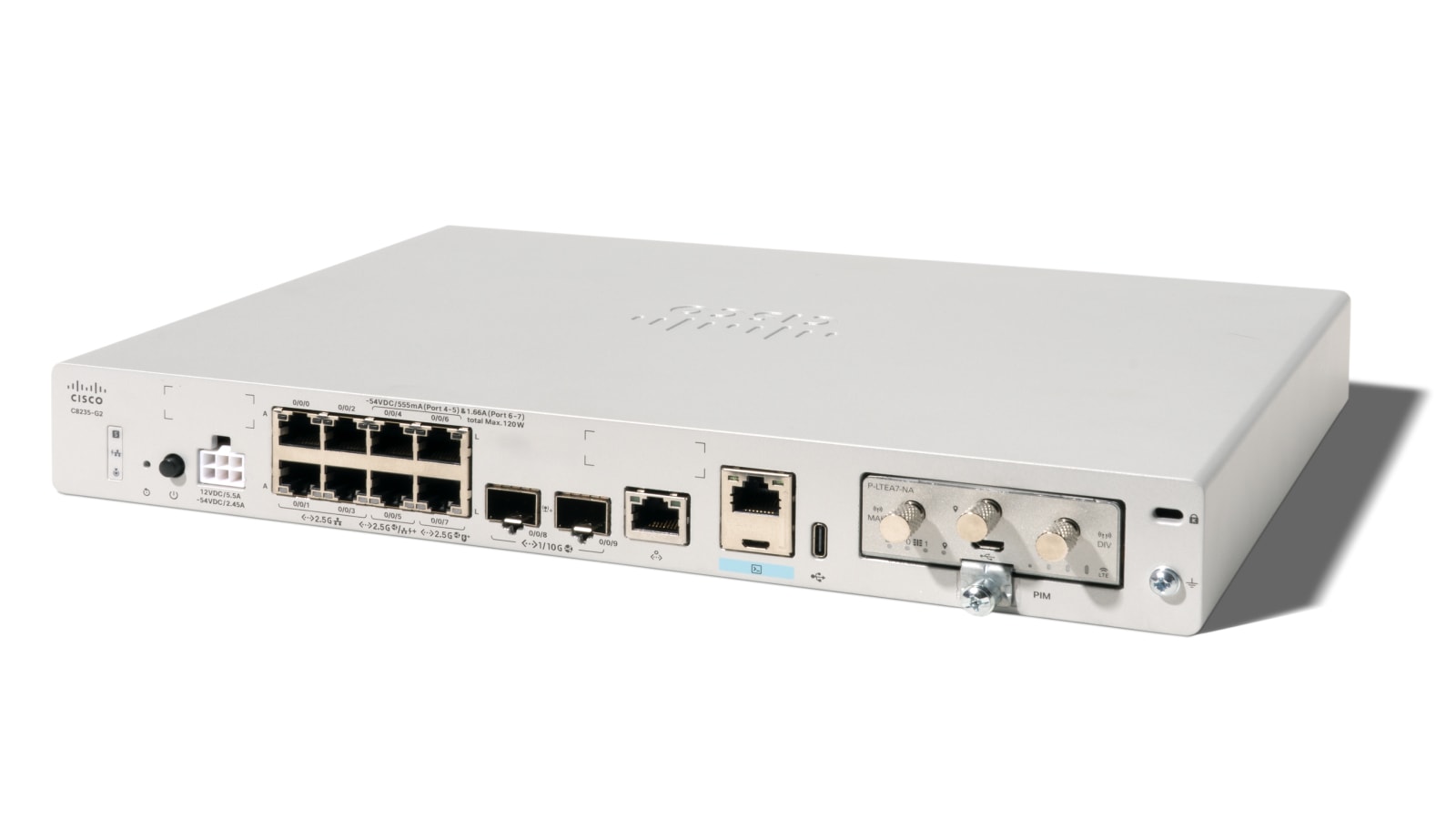

• Cisco C8231-G2 Gen2 SD-WAN branch router with LTE option and sleek white design
1 1

Cisco

Cisco C8231-G2 | 8200 Secure Router, 2x 10G SFP+, 4x 2.5G, Fanless

C8231-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8200 Series Secure Router is a fanless, desktop or rack-mountable branch router for medium-sized sites that need traditional routing or an SD-WAN edge with integrated next-generation firewall security. A dedicated secure networking processor handles cryptography and deep packet inspection in hardware, and the fanless chassis suits noise-sensitive or space-constrained locations.

Connectivity is built around two 1/10 GE SFP+ WAN ports and two 2.5 GE mGig RJ-45 WAN ports, one of which supports PoE+. Two further 2.5 GE mGig flex ports and four 1 GE RJ-45 LAN ports complete the front panel, with an RJ-45 out-of-band management port and an RJ-45 console. There is 8 GB of DRAM and 16 GB of storage. Forwarding throughput is 19 Gbps, with 5 Gbps of IPsec, 4 Gbps of SD-WAN and 1 Gbps of threat protection throughput. This model has no NIM or PIM slot.

It ships with Cisco Routing OS Essentials and can be licensed for Routing Advantage or the Cisco Catalyst SD-WAN subscription. Mounting options include rack-mount, wall-mount, DIN-rail and under-desk kits.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dedicated secure networking processor with hardware acceleration for cryptography and deep packet inspection
- Fanless design for noise-sensitive or space-constrained branch sites
- Routing, SD-WAN and next-generation firewall security in one platform
- Post-quantum cryptography readiness
- Management on-premises, via infrastructure-as-code or from the cloud with Cisco Catalyst SD-WAN Manager
- Rack-mount, wall-mount, DIN-rail and under-desk mounting options
- Blue beacon LED, Kensington lock and ground screw

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- WAN ports: 2x 1/10 GE SFP+, 2x 2.5 GE mGig RJ-45 (1x PoE+)
- Flex ports: 2x 2.5 GE mGig RJ-45
- LAN ports: 4x 1 GE RJ-45
- NIM expansion slots: None
- Cellular PIM slot: None
- Management and console: 1x RJ-45 OOB management, 1x RJ-45 console, USB 3.0 Type-C storage
- DRAM: 8 GB
- Storage: 16 GB
- Default power supply: 66 W AC external adapter
- Optional power supply: 115 W AC external adapter for PoE, 30 W PoE budget
- Typical power consumption: 26.70 W
- Forwarding throughput (512B): 19 Gbps
- IPsec throughput (512B): 5 Gbps
- SD-WAN throughput (512B): 4 Gbps
- Threat protection throughput (EMIX): 1 Gbps
- IPv4/IPv6 routes: 1.5M
- NAT sessions: 1.5M
- VRF instances: 4000
- IPsec tunnels: up to 1500 (IOS XE 26.2.1 onwards), up to 700 on earlier releases
- Dimensions (H x D x W): 2.89 x 20.57 x 31.06 cm
- Chassis weight: 2.27 kg
- Input voltage: 85 to 264 VAC
- Operating temperature: 0 to 45 C
- Minimum software: IOS XE 17.18.1 / SD-WAN Release 20.18.1

FAQs

Q: What licensing does the C8231-G2 use?
A: It ships preloaded with Cisco Routing OS Essentials. It is eligible for the Cisco Routing Advantage licence for traditional routing and for the Medium-tier Cisco WAN subscription under Cisco Networking Subscription for SD-WAN.

Q: How is the C8231-G2 powered and can it supply PoE?
A: The default is a 66 W AC external adapter with an 85 to 264 VAC input. An optional 115 W AC adapter provides a 30 W PoE budget, and one 2.5 GE mGig WAN port supports PoE+.

Q: Does it accept NIM modules or cellular PIMs?
A: No. The C8231-G2 has no NIM or PIM slot, so the C-NIM and cellular PIM modules used in other 8200 models do not apply. Cellular connectivity would need an external solution.

Q: What mounting options are available?
A: Rack-mount kit C8231-G2-RM-19, wall mount C8200-WM-1R, DIN-rail kit C82G2-DRM-F and under-desk kit C82G2-UDM-F.

Q: Which software release does it require?
A: The minimum software is IOS XE 17.18.1 for autonomous mode, or SD-WAN Release 20.18.1 and later for SD-WAN deployments.
