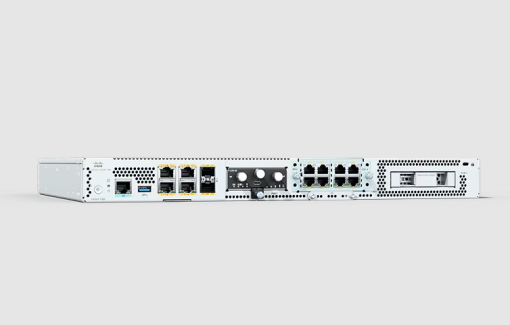

• Cisco C8200-UCPE-1N8 white router with Ethernet ports and ventilation panel
1 1

Cisco

Cisco C8200-UCPE-1N8 | Catalyst 8200 uCPE Edge Router, 8-Core, 6x 1GE, NIM+PIM

C8200-UCPE-1N8

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8200 Edge uCPE is a 1RU x86-based universal CPE platform for branch virtualisation. It runs the Catalyst 8000V routing VNF on the NFVIS hypervisor, so SD-WAN edge routing, security VNFs and business or analytics applications can share one box at small and lean branch sites. It is also positioned for 5G/LTE wireless WAN and Secure Direct Internet Access.

This C8200-UCPE-1N8 variant has an 8-core Intel CPU, one NIM slot and one PIM slot, and six 1GE ports made up of four RJ45 copper ports and two SFP ports. It supports up to 64 GB of DRAM, a default M.2 SSD upgradable to 2 TB M.2 NVMe, and a 2.5-inch SATA bay for up to 4 TB. Throughput reaches 1.85 Gbps IPsec (1400 B) in SD-WAN controller mode, with 500 SD-WAN overlay tunnels. It uses an internal 100 W AC power supply and is offered with a Cisco DNA Software subscription using Cisco Smart Licensing.

It works with a range of NIMs including NIM-ES2-4, NIM-ES2-8, NIM-ES2-8-P and NIM-LTEA-EA, and with PIM LTE modules such as P-LTEA-LA. Memory options include MEM-C8200-8GB, 16GB and 32GB, and the 19-inch rack kit is C8200-RM-19-1R.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for branch virtualisation, consolidating network and security functions to reduce truck rolls
- Eight x86 cores host more VNFs for routing, switching and application hosting in 1RU
- Runs the NFVIS hypervisor with the Catalyst 8000V routing VNF, supporting Cisco IOS XE SD-WAN or IOS XE from a single image
- Embedded IPsec VPN hardware acceleration with SSL and crypto offload
- PIM slot for LTE/5G modules, with 5G-ready wireless WAN for management traffic
- Hardware-anchored Secure Boot and SUDI for Plug and Play identity verification
- Orchestration through Cisco MSX, NSO and Catalyst SD-WAN Manager
- PoE available by adding a PoE NIM such as NIM-ES2-8-P

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: C8200-UCPE-1N8
- CPU: 8-core Intel x86
- Ethernet ports: 6 x 1GE (4 x RJ45 copper + 2 x SFP)
- Modular slots: 1 x NIM, 1 x PIM
- Memory (DRAM): up to 64 GB, default 32 GB
- M.2 storage: default 75 GB M.2 USB SSD, upgradable to 600 GB or 2 TB M.2 NVMe
- HDD/SATA storage: 1 x 2.5-inch slot, up to 4 TB SSD-SATA
- IPsec throughput (1400 B), SD-WAN controller mode: up to 1.85 Gbps
- IPsec throughput (IMIX), SD-WAN controller mode: up to 500 Mbps
- SD-WAN overlay tunnels: 500
- IPv4 forwarding throughput (1400 B), autonomous mode: up to 3.95 Gbps
- Performance test basis: Catalyst 8000V on 4 vCPUs, release 17.4.1 on NFVIS 4.4.0
- Form factor: 1RU
- Dimensions (H x W x D): 4.39 x 43.82 x 29.97 cm (1.73 x 17.25 x 11.8 in)
- Chassis weight: 4.2 kg (9.3 lb)
- Power supply: internal AC, 100 W max, 90 to 264 VAC, 47 to 63 Hz
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Operating humidity: 5% to 85% noncondensing
- Altitude: 0 to 3050 m
- MTBF at 25 C: 671,696 hours
- Minimum software: Catalyst 8000V 17.4.1, NFVIS 4.4.1

FAQs

Q: Does the C8200-UCPE-1N8 need a licence or subscription?
A: Yes. The Catalyst 8200 Edge uCPE is offered with a Cisco DNA Software subscription, Enterprise Agreement or Managed Service Licensing Agreement, using Cisco Smart Licensing.

Q: Can it provide PoE?
A: Not on its own. PoE is added with a PoE NIM such as NIM-ES2-8-P, which requires a PoE power supply.

Q: Which NIMs and LTE modules work with it?
A: Supported NIMs include NIM-ES2-4, NIM-ES2-8, NIM-ES2-8-P, NIM-VAB-A, NIM-VA-B, NIM-VAB-M, NIM-4SHDSL-EA, NIM-1T, NIM-2T, NIM-4T, NIM-LTEA-EA and NIM-LTEA-LA. PIM LTE options are P-LTEAP18-GL, P-LTEA-EA and P-LTEA-LA, with P-LTEA-LA covering APAC and ANZ.

Q: What memory and storage can it take?
A: It supports up to 64 GB of DRAM using MEM-C8200-8GB, 16GB or 32GB modules. Storage options include M2USB-75G, SSD-M2NVME-600G and SSD-M2NVME-2T for the M.2 slot, plus SATA drives up to 4 TB in the 2.5-inch bay.

Q: What software does it run?
A: It runs the Catalyst 8000V routing VNF on the NFVIS hypervisor. The minimum releases are Catalyst 8000V 17.4.1 and NFVIS 4.4.1.
