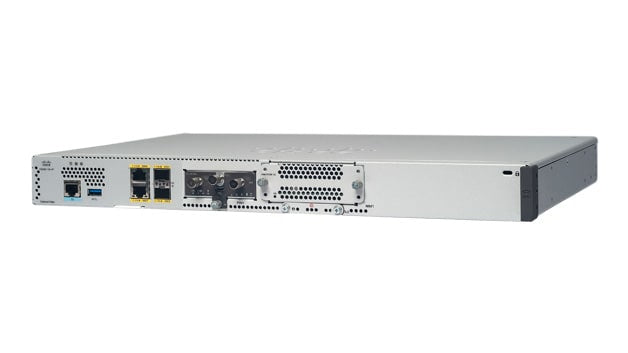

• Cisco C8200-1N-4T SD-WAN Edge Router with 4x 1G RJ45 ports
1 1

Cisco

Cisco C8200-1N-4T | Catalyst 8200 Router, 4x 1G WAN, 8-Core, 1 NIM

C8200-1N-4T

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8200 is a 1RU edge router built for small to medium branch offices that need more throughput, scale and service flexibility. It runs Cisco IOS XE with SD-WAN and SD-Routing, and suits SASE deployments, direct internet access with on-box security, and container-based services at the edge. It also handles voice and unified communications, and LTE/5G WAN backup through supported modules.

This 8-core variant has four 1GbE WAN ports (2x RJ45 and 2x SFP), one NIM slot and one PIM slot. It ships with 8 GB DRAM, upgradable to 16 GB or 32 GB, plus 16 GB M.2 storage and 8 GB onboard flash. Throughput reaches up to 1 Gbps SD-WAN IPsec and up to 3.8 Gbps IPv4 forwarding in autonomous mode (1400 byte packets), with scale for 2500 SD-WAN overlay tunnels. It is offered with a Cisco DNA Software subscription, so a licence tier is ordered separately from the hardware.

The C8200-1N-4T works with existing WAN, LAN and voice NIM modules, including Ethernet, switching, voice and LTE/5G options. Memory, storage and rack or wall mount accessories are available in the Catalyst 8200 range.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with SD-WAN and SD-Routing, managed through Catalyst SD-WAN Manager or Cisco DNA Center
- Dynamic core allocation between service-plane-heavy and data-plane-heavy modes
- Embedded IPsec VPN hardware acceleration plus SSL and crypto acceleration
- On-box security including NGFW, IPS/IDS, Advanced Malware Protection, URL filtering and Zone-Based Firewall
- Cisco Umbrella SIG support for SASE deployments
- Hardware-anchored Secure Boot and SUDI for Plug and Play
- Supports containerised third-party apps and the ThousandEyes agent
- Backward compatible with existing WAN, LAN and voice NIM modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: C8200-1N-4T
- Form factor: 1RU
- WAN ports: 4x 1GbE (2x RJ45 and 2x SFP)
- Slots: 1 NIM, 1 PIM
- CPU: 8-core
- DRAM: 8 GB default, upgradable to 16 GB or 32 GB
- M.2 storage: 16 GB default
- Onboard flash: 8 GB
- SD-WAN IPsec throughput (1400 bytes): up to 1 Gbps
- SD-WAN IPsec throughput (IMIX): 900 Mbps
- SD-WAN overlay tunnels: 2500
- IPv4 forwarding throughput (autonomous mode, 1400 bytes): up to 3.8 Gbps
- IPsec SVTI tunnels: 2500
- Firewall sessions: 512K
- NAT sessions: 1.2M with default 8 GB
- VRFs: 4000
- Power supply: internal fixed AC, 100 W max rating
- Input voltage: 90 to 264 VAC, 47 to 63 Hz
- Typical power consumption (no modules): 35 W
- Dimensions (H x W x D): 4.39 x 43.81 x 29.97 cm
- Weight: 4.54 kg
- Operating temperature: 0 to 40 C
- Minimum software: Cisco IOS XE 17.4.1

FAQs

Q: Does the C8200-1N-4T include a software licence?
A: No. It is offered with a Cisco DNA Software subscription, so a tier such as Catalyst Routing Essentials, Cisco DNA Essentials or Cisco DNA Advantage must be ordered separately.

Q: How does it differ from the C8200L-1N-4T?
A: The C8200-1N-4T has an 8-core CPU, 8 GB DRAM, 16 GB M.2 storage and up to 1 Gbps IPsec throughput. The C8200L-1N-4T has a 4-core CPU, 4 GB DRAM, no M.2 and 500 Mbps.

Q: Can it provide PoE?
A: Not from the built-in ports. PoE on supported NIMs needs the external PWR-CC1-150WAC power supply, which gives a 150 W PoE budget.

Q: Which modules does it work with?
A: It supports NIMs such as C-NIM-1M, C-NIM-2T, C-NIM-8T, C-NIM-8M, NIM-ES2 switching modules, voice NIMs and NIM-LTEA LTE modules. Memory options are MEM-C8200-8GB, 16GB and 32GB.

Q: What software release does it need?
A: The minimum software is Cisco IOS XE Release 17.4.1.
