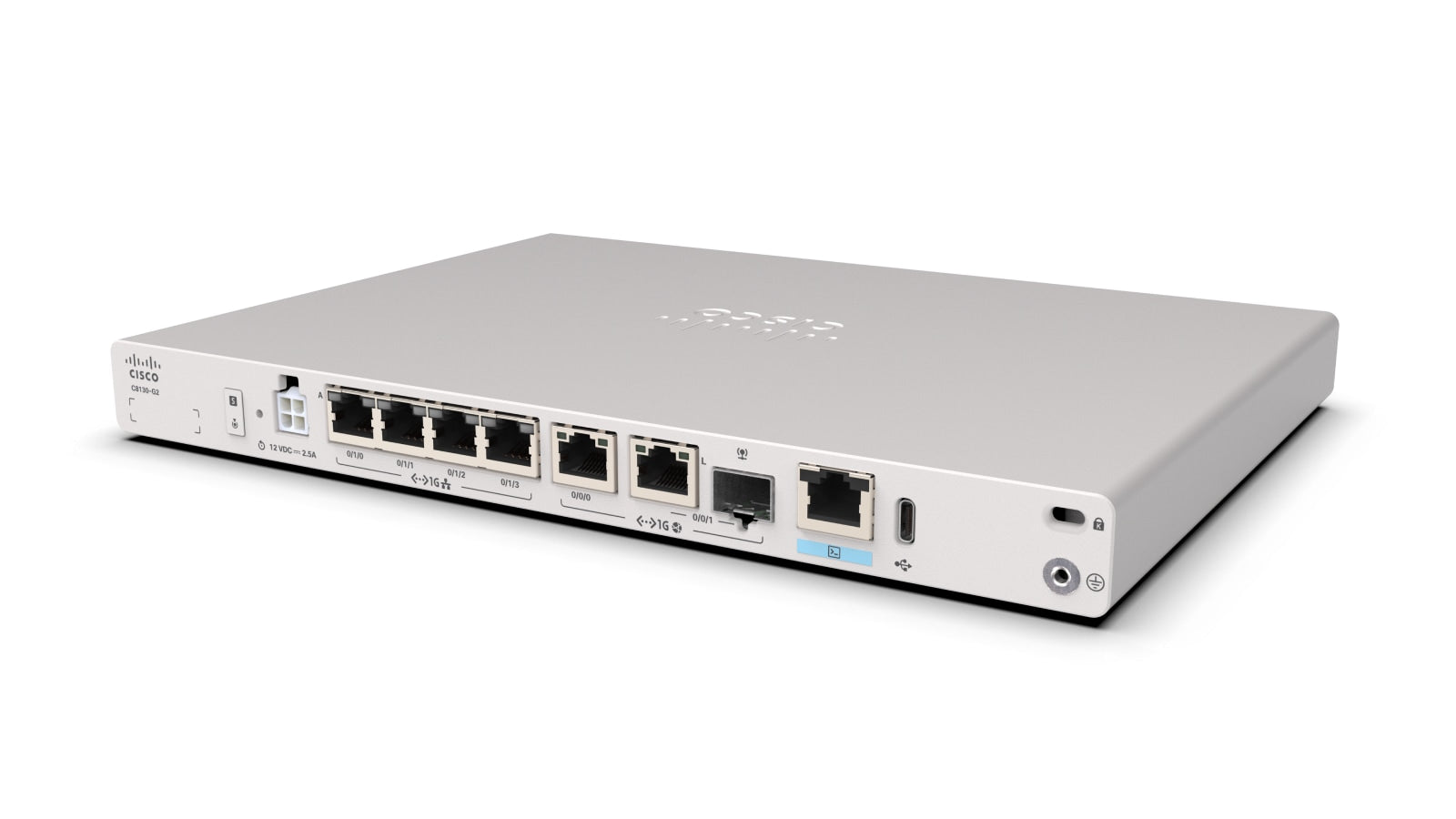

• Cisco C8161-G2 silver secure edge router with ports and sleek design
1 1

Cisco

Cisco C8161-G2 | 8100 10-Port Gigabit PoE+ Router, 80W, PIM Slot

C8161-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8100 Series C8161-G2 is a compact secure router for small branches, point-of-sale sites, remote workers and IoT deployments. Built on Cisco's secure networking processor, it combines routing, integrated security and SD-WAN capability in a small chassis that can be rack mounted, placed on a desk, fixed under a desk or mounted on a DIN rail or wall.

This model provides 10 x 1GE ports: 2 x RJ-45/SFP combo WAN ports, 2 x GE RJ-45 flex ports and 6 x GE RJ-45 LAN ports, of which 4 support PoE and 2 support PoE+, for up to 80W of PoE output. A single Pluggable Interface Module slot accepts an optional LTE-A or 5G Sub-6 cellular module. Rated throughput is 5.6 Gbps forwarding, 1.5 Gbps IPsec, 900 Mbps SD-WAN and 1 Gbps threat protection. It supports up to 500K IPv4 routes, 4K VRFs and 250 IPsec tunnels, and is powered by a 150W external supply.

It runs Cisco IOS XE 17.18.1 or later for autonomous routing and SD-WAN, with Catalyst SD-WAN Manager 20.18.1 as the minimum for SD-WAN management. Supported cellular modules are P-5GS6-R16SA-GL, P-LTEA7-NA, P-LTEA7-EAL and P-LTEA7-JP.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware-accelerated security and networking
- Integrated next-generation firewall and Zero Trust capabilities for small branches
- SASE-ready architecture
- Post-quantum cryptography readiness
- Flexible management: on-premises, infrastructure-as-code or cloud
- Optional pluggable CAT7 LTE Advanced or 5G Sub-6 cellular modules
- Multiple mounting options including rack, desktop, under desk and DIN-rail or wall
- Blue beacon LED and PoE status LED on the front panel

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 10 x 1GE in total
- WAN ports: 2 x 1GE RJ-45/SFP combo
- Flex ports: 2 x GE RJ-45
- LAN ports: 6 x GE RJ-45 (4 PoE, 2 PoE+)
- PoE output: 80W maximum
- Cellular: 1 x PIM slot for optional LTE-A or 5G module
- Management: 1 x RJ-45 console, 1 x USB Type-C 3.0
- Power supply: 150W external AC adapter (PWR-CC1-150WAC)
- Typical power: 25W
- Forwarding throughput (512B): 5.6 Gbps
- IPsec throughput (512B): 1.5 Gbps
- SD-WAN throughput (512B): 900 Mbps
- Threat protection throughput (EMIX): 1 Gbps
- IPv4 routes: 500K
- IPv6 routes: 500K
- NAT sessions: 100K
- VRFs: 4K
- IPsec tunnels: 250
- IPv4 ACLs: 4K
- IPv4 ACEs: 10K
- Dimensions (H x D x W): 1.57 in x 8.5 in x 12.7 in
- Chassis weight: 5.1 lb
- MTBF: over 100,000 hours
- Mounting: rackmount, desktop, under desk, DIN-rail or wall
- Operating temperature: 0 to 40 C, derated 1 C per 1000 ft above 40 C
- Operating humidity: 5% to 85% non-condensing
- Operating altitude: 0 to 3048 m
- Minimum IOS XE: 17.18.1

FAQs

Q: Does the C8161-G2 support SD-WAN?
A: Yes. It supports Cisco SD-WAN on IOS XE 17.18.1 or later, managed with Catalyst SD-WAN Manager 20.18.1 or later.

Q: How much PoE can it supply?
A: It supplies up to 80W of PoE output across its 4 PoE and 2 PoE+ LAN ports, powered by the 150W external supply.

Q: Which cellular modules fit the PIM slot?
A: The supported PIMs are P-5GS6-R16SA-GL (5G Sub-6 SA global), P-LTEA7-NA (North America), P-LTEA7-EAL (EMEA, APAC and LATAM) and P-LTEA7-JP (Japan). The slot can also stay empty.

Q: What software and licensing does it use?
A: It runs Cisco IOS XE. Software is ordered through Cisco routing or SD-WAN Essentials and Advantage options, with Universal or No Payload Encryption image variants available.

Q: How can I mount it?
A: It can be rack mounted with kit C8151-G2-RM-19, fitted to a DIN rail with ACS-1111-DRM, fixed under a desk with ACS-1100-UDM, or placed on a desktop.
