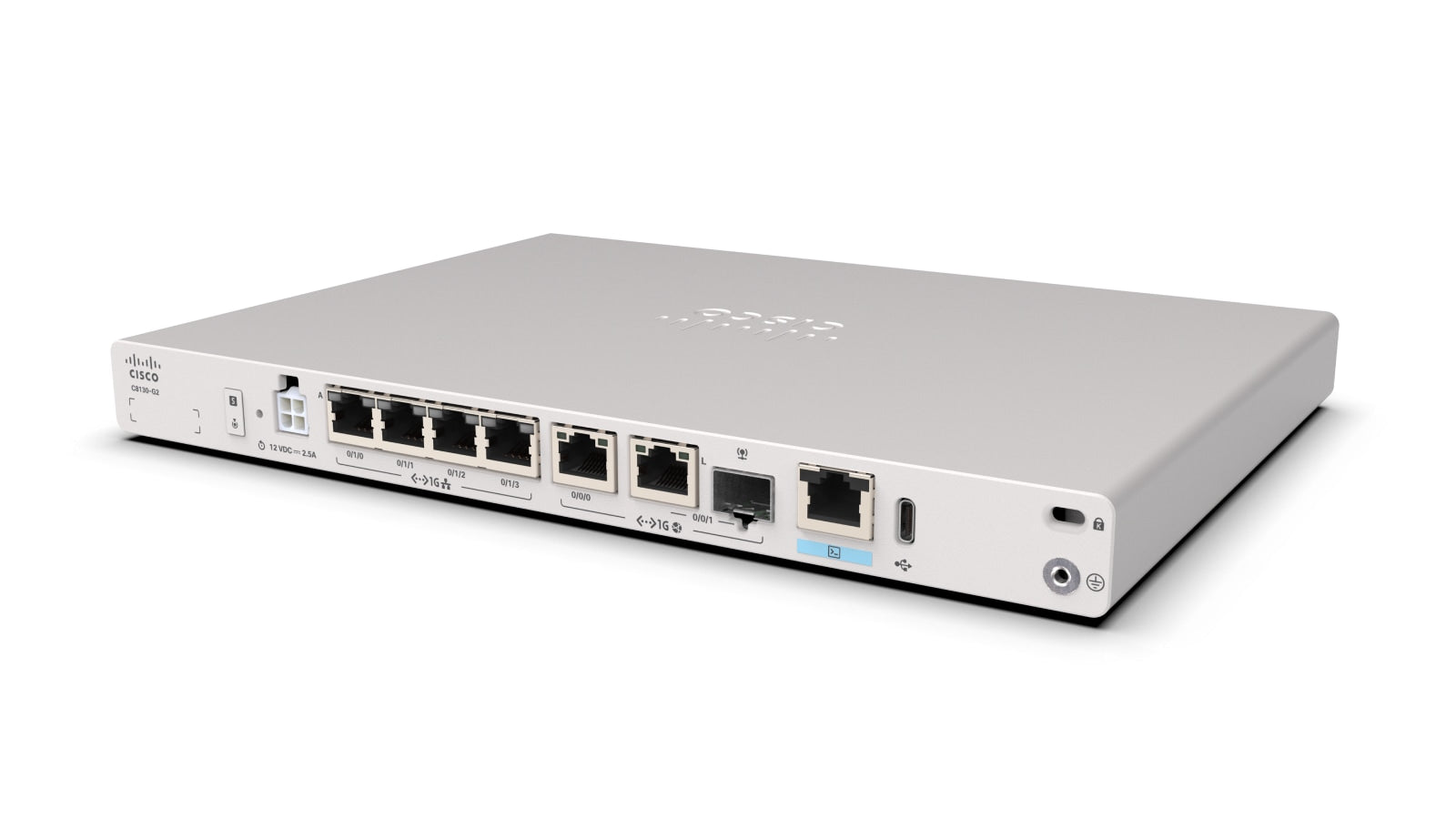

• Cisco C8151-G2 silver router with ports, sleek design, SD-WAN, LTE-ready
1 1

Cisco

Cisco C8151-G2 | 8100 10x 1GE Secure Router, PIM Slot, 66W PSU

C8151-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8100 Series C8151-G2 is a fanless, compact secure edge router designed for small branch sites. It combines hardware-accelerated routing and security with SD-WAN capability, and suits point-of-sale connectivity, small branch workers, remote workers, IoT and quick-deploy temporary or mobile sites.

This SKU provides 10 x 1GE ports, made up of 2 x 1GE RJ-45/SFP combo WAN ports, 2 x GE RJ-45 flex ports and 6 x 1GE RJ-45 LAN ports, plus a pluggable interface module (PIM) slot for optional LTE or 5G. It delivers 5.6 Gbps forwarding, 1.5 Gbps IPsec and 900 Mbps SD-WAN throughput (512B), with 1 Gbps threat protection throughput (EMIX). It has no PoE output and runs from a 66W external power supply, drawing 23W typically. SD-WAN operation requires IOS XE 17.18.1 and management through Cisco Catalyst SD-WAN Manager 20.18.1 or later.

The PIM slot accepts the P-5GS6-R16SA-GL 5G Sub-6 GHz module and the P-LTEA7-NA, P-LTEA7-EAL and P-LTEA7-JP CAT7 LTE-A modules. The two combo WAN ports accept SFP optics. Mounting options include rackmount, desktop, under desk and DIN-rail or wall mount.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware-accelerated security and networking
- Fanless design suited to small branch sites
- Integrated next-generation firewall, Zero Trust capabilities and SASE-ready architecture
- Post-quantum cryptography (PQC) readiness
- Secure routing or SD-WAN, managed on-premises, via infrastructure-as-code, or from the cloud
- Optional pluggable CAT7 LTE Advanced or 5G Sub-6 GHz module
- Flexible mounting: rackmount, desktop, under desk, DIN-rail or wall
- Kensington lock and ground screw for physical security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- WAN ports: 2 x 1GE RJ-45/SFP combo
- Flex ports: 2 x GE RJ-45
- LAN ports: 6 x 1GE RJ-45
- Total ports: 10 x 1GE including 1 x PIM slot
- Cellular: optional pluggable module, LTE or 5G
- Management port: 1 x RJ-45 console
- USB: 1 x USB Type-C 3.0 OOB management
- Forwarding throughput (512B): 5.6 Gbps
- IPsec throughput (512B): 1.5 Gbps
- SD-WAN throughput (512B, IPsec + QoS + DPI + Flexible NetFlow): 900 Mbps
- Threat protection throughput (EMIX): 1 Gbps
- IPv4 routes: 500K
- IPv6 routes: 500K
- IPv4 ACLs: 4K
- IPv4 ACEs: 10K
- NAT sessions: 100K
- VRFs: 4K
- IPsec tunnels: 250
- Power supply: 66W external, 12 VDC input
- Typical power: 23W
- PoE: none
- Dimensions (H x D x W): 1.57 in x 8.5 in x 12.7 in
- Chassis weight: 5.1 lb
- MTBF: over 100,000 hours
- Operating temperature: 0 to 40 C at sea level, derate 1 C per 1000 ft above 40 C
- Non-operating temperature: -40 to +70 C
- Operating humidity: 5% to 85% relative humidity, non-condensing
- Operating altitude: 0 to 10,000 ft (0 to 3048 m)
- Minimum IOS XE: 17.18.1
- Minimum Catalyst SD-WAN Manager: 20.18.1

FAQs

Q: Can this router run SD-WAN?
A: Yes. The C8151-G2 is SD-WAN capable and requires IOS XE 17.18.1 or later, managed through Cisco Catalyst SD-WAN Manager 20.18.1 or later.

Q: Which cellular modules work in the PIM slot?
A: The slot supports the P-5GS6-R16SA-GL 5G Sub-6 GHz module and the CAT7 LTE-A modules P-LTEA7-NA, P-LTEA7-EAL and P-LTEA7-JP. Choose the module that matches your region.

Q: Does the C8151-G2 provide PoE?
A: No. This model has no PoE output and is powered by a 66W external power supply. PoE is only available on the C8161-G2.

Q: How does the C8151-G2 differ from the C8161-G2?
A: Both support the same pluggable LTE and 5G modules, but the C8151-G2 has no PoE output, while PoE is a feature of the C8161-G2.

Q: Can I use SFP optics on the WAN ports?
A: Yes. The 2 x 1GE RJ-45/SFP combo WAN ports accept either copper RJ-45 connections or SFP optics.
