Cisco

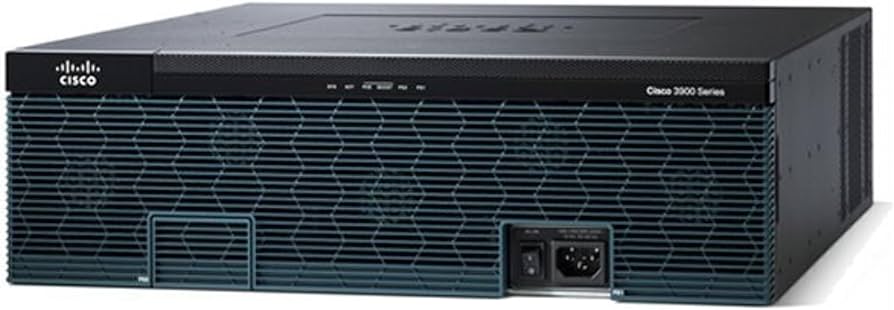

Cisco C3945E-VSEC-SRE-K9 | ISR 3945E UC+SEC Router, SRE 900/910, PVDM3-64

C3945E-VSEC-SRE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 3945E UC+SEC bundle is a Cisco 3900 Series Integrated Services Router (ISR G2) package for branch offices that want routing, voice, security and locally hosted applications in a single chassis. It pairs the modular 3945E router with a Services-Ready Engine blade, a PVDM3-64 voice DSP module and the UC and SEC licence PAKs.

The service module is either an SRE 900 or SRE 910 in the Service Module form factor. It runs on an Intel Core2 Duo 1.86 GHz processor with 4 GB DRAM as standard, expandable to 8 GB. Storage is two hot-swappable 500-GB SATA drives, giving 1 TB in non-RAID mode, with RAID 0 or 1 available depending on the application. The SRE connects to the router backplane over an internal Gigabit Ethernet link and also provides one USB connector and one RJ-45 Gigabit Ethernet port. The PVDM3-64 adds on-board DSP resources for voice and video, and the UC and SEC licence PAKs enable the Unified Communications and Security feature sets. SRE application licences such as WAAS or UCS Express are separate.

A 3945E chassis accepts up to four SRE 900 or SRE 910 service modules. These modules are also supported on Cisco 2911, 2921, 2951, 3925, 3925E and 3945 ISRs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- SRE module runs branch-office applications independently of router CPU resources
- Internal Gigabit Ethernet link between the SRE and the router
- Embedded cryptography chip and hardware-assisted virtualisation on the SRE
- Hot-swappable, field-replaceable disks with RAID 1 on SRE 900/910
- Hosts Cisco and third-party applications including WAAS, UCS Express, AXP, Unity Express, Unified SIP Proxy and WLC
- PVDM3-64 provides on-board DSP resources for voice and video
- UC and SEC licence PAKs enable the Unified Communications and Security feature sets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: Cisco ISR 3945E (ISR G2 3900 Series)
- Bundle contents: Cisco 3945E, SRE 900 or SRE 910, PVDM3-64, UC and SEC licence PAK
- SRE part numbers: SM-SRE-900-K9 / SM-SRE-910-K9
- SRE form factor: Service Module (SM)
- SRE CPU: Intel Core2 Duo, 1.86 GHz
- SRE DRAM: 4 GB (default) or 8 GB
- SRE flash memory: 2-GB internal USB flash-memory module
- SRE hard disk: two 500-GB SATA drives (1 TB in non-RAID mode)
- SRE disk speed: 5400 rpm (SRE 900), 7200 rpm (SRE 910)
- SRE hot-swappable HDD: Yes
- SRE RAID support: RAID 0 or 1, application dependent
- SRE internal network interface: Gigabit Ethernet to router backplane
- SRE external interfaces: one USB connector, one RJ-45 Gigabit Ethernet connector
- Voice DSP module: PVDM3-64
- Maximum SRE 900/910 service modules per 3945E: 4

FAQs

Q: Which licences does this bundle include?
A: It includes the UC (Unified Communications) and SEC (Security) technology-package licence PAKs for the ISR G2 3945E. SRE application licences, such as WAAS or UCS Express, are separate.

Q: What is the difference between the SRE 900 and SRE 910?
A: Both are Service Module form factor blades with the same Intel Core2 Duo 1.86 GHz CPU and two 500-GB SATA drives. The SRE 900 uses 5400 rpm drives and the SRE 910 uses 7200 rpm drives.

Q: How many SRE modules can a 3945E take?
A: A Cisco 3945E supports up to four SRE 900 or SRE 910 service modules.

Q: What is the PVDM3-64 used for?
A: The PVDM3-64 is a packet voice and video DSP module that provides on-board DSP resources for voice and video processing on the router.

Q: Which other routers support the SRE 900 and 910 modules?
A: SRE 900 and 910 service modules are supported on Cisco 2911, 2921, 2951, 3925, 3925E, 3945 and 3945E ISRs.
