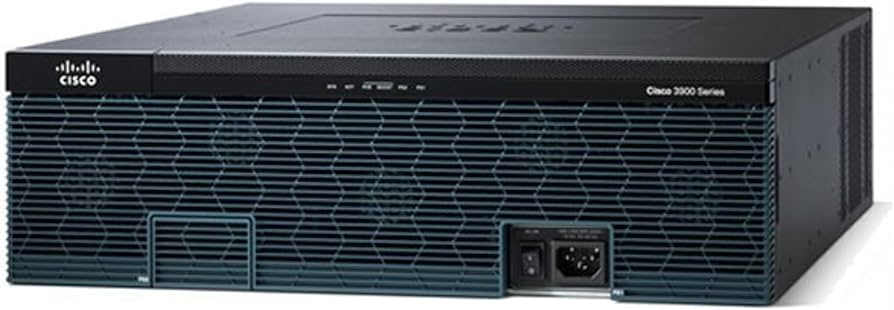

Cisco C3945-WAAS-SEC-K9 | ISR 3945 Router, SRE 900/910, Sec PAK, WAAS Large

C3945-WAAS-SEC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 3945 is a Cisco 3900 Series Integrated Services Router bundle built for large branch offices that need WAN optimisation alongside integrated routing, VPN and security on a single platform. It pairs the 3945 chassis with an SRE 900 or SRE 910 service module to host Cisco WAAS.

The bundle includes the Cisco WAAS Enterprise Large licence and the IOS Security (SEC) licence PAK, so the security feature set and WAN acceleration are ready to enable. The router provides 3 integrated 10/100/1000 WAN/LAN ports, two of which can be SFP-based, plus 1 GB of default ECC DDR2 DRAM (up to 2 GB) and 256 MB of external Compact Flash. Onboard hardware crypto acceleration handles IPSec and SSL, and the platform supports Cisco Unified CME with 350 sessions and SRST with 1200 sessions. Internal AC, PoE and DC power supply options are available, including a redundant supply option.

The 3945 accepts up to 4 SRE 700/710/900/910 service modules plus 1 SRE 300 ISM, along with EHWIC/HWIC, DSP and SFP interfaces. WAAS on SRE requires WAAS 4.2 or later and Cisco IOS 15.0(1)M2 or later, with 15.0(1)M3 or later recommended.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- SRE 900/910 service module hosts Cisco WAAS on the 3945
- WAAS Enterprise Large licence for WAN optimisation and application acceleration at large branches
- Security PAK enables the IOS security feature set including VPN, firewall and IPS
- Hardware-based IPSec and SSL encryption acceleration
- Cisco Unified CME and SRST support for branch voice survivability
- Modular design with EHWIC, DSP and service module slots
- Redundant power supply option for resilience

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Platform: Cisco 3945 ISR (3900 Series)
- Service module: SRE 900 or SRE 910
- Licences: IOS Security (SEC) PAK and WAAS Enterprise Large
- Integrated ports: 3 x 10/100/1000 WAN/LAN (RJ-45)
- SFP-based ports: 2 (using SFP disables the matching RJ-45 port)
- DRAM (ECC DDR2): 1 GB default, 2 GB maximum
- External Compact Flash: 256 MB default in slot 0, up to 4 GB per slot
- USB: 2 x USB 2.0 Type A
- Console and auxiliary: USB console, serial console, serial aux
- Maximum SRE modules: 5 total, up to 4 SRE 700/710/900/910 and 1 SRE 300 ISM
- Cisco Unified CME sessions: 350
- Cisco Unified SRST sessions: 1200
- Hardware crypto acceleration (IPSec and SSL): Yes
- Power supply: Internal AC, PoE and DC options, redundant option available
- Dimensions (H x W x D): 133.35 x 438.15 x 476.25 mm
- WAAS software requirement: WAAS 4.2 or later
- IOS requirement for WAAS on SRE: 15.0(1)M2 or later, 15.0(1)M3 or later recommended

FAQs

Q: What licences does this bundle include?
A: It includes the Cisco WAAS Enterprise Large licence and the IOS Security (SEC) licence PAK. Other IOS feature sets such as Unified Communications or Data are separate licences.

Q: Which service module hosts WAAS?
A: WAAS runs on an SRE 900 or SRE 910 service module installed in the 3945. WAAS version 4.2 or later is required.

Q: What IOS version is needed for WAAS on SRE?
A: Cisco IOS 15.0(1)M2 or later is required, and 15.0(1)M3 or later is recommended.

Q: How many service modules can the 3945 take?
A: The 3945 supports up to 4 SRE 700/710/900/910 service modules plus 1 SRE 300 ISM, for 5 SRE slots in total.

Q: What power options are available?
A: The Cisco 3945 offers internal AC, PoE and DC power supply options, with an optional redundant internal supply.
